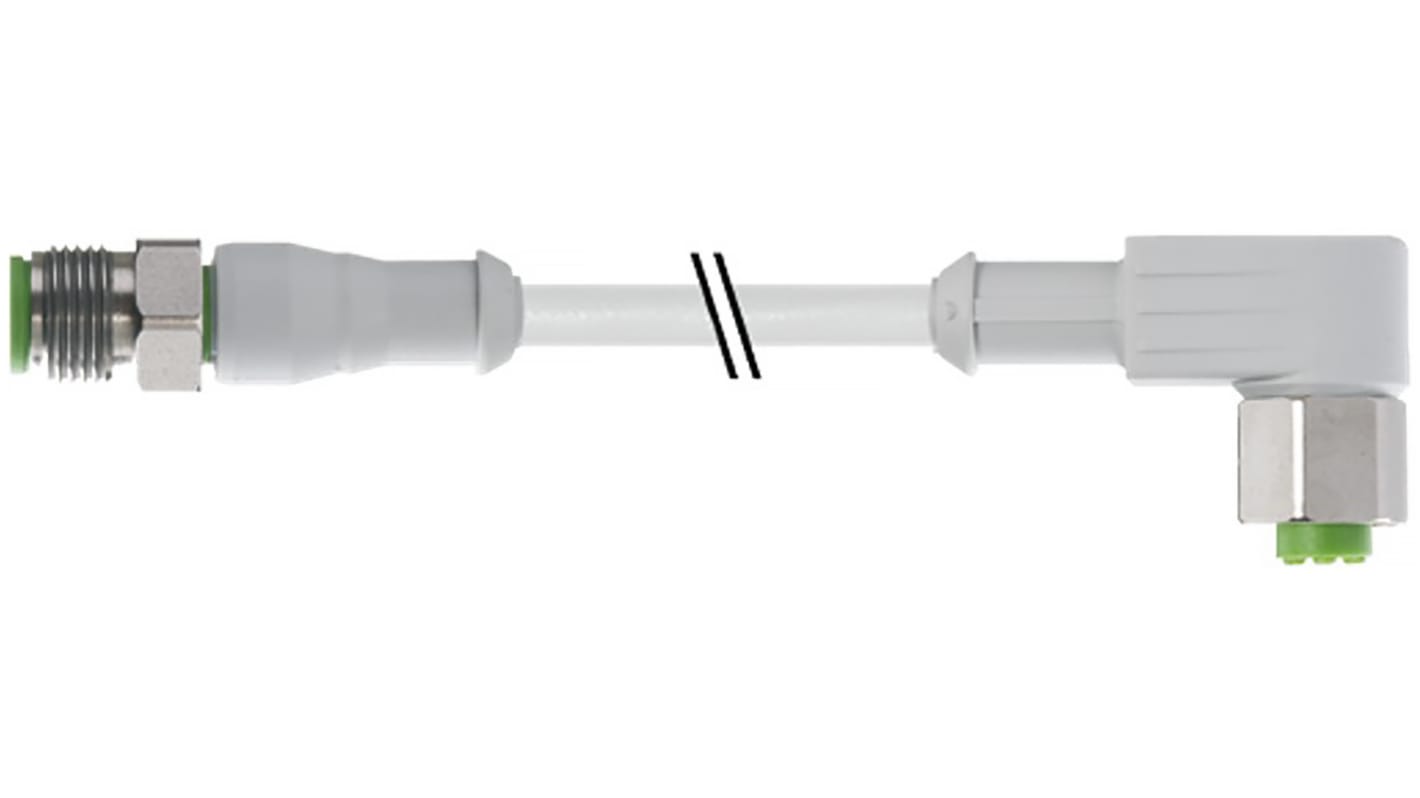

RS PRO Right Angle Female 3 way M12 to Straight Male 3 way M12 Sensor Actuator Cable, 2m
- RS Stock No.:
- 154-7758
- Brand:
- RS PRO
Subtotal (1 unit)*
£24.13
(exc. VAT)
£28.96
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 10 November 2025
Units | Per unit |
|---|---|
| 1 + | £24.13 |
*price indicative
- RS Stock No.:
- 154-7758
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Grey | |
| Length | 2m | |
| Sheath Material | PUR | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 2 Gender | Male | |
| Connector 2 Housing Gender | Male | |
| Connector 2 Orientation | Straight | |
| Connector 2 Number of Contacts | 3 | |
| Connector 2 | M12 | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V ac/dc | |
| IP Rating | IP66K, IP67 | |
| Size of Strands | 0.15 mm | |
| Connector 1 Housing Gender | Female | |
| Number of Strands | 19 | |
| American Wire Gauge | 24 AWG | |
| Operating Temperature Range | -25 → +85 °C | |
| Core Strands | 19/0.15 mm | |
| Minimum Bend Radius | 10 x 4.6 mm, 5 x 4.6 mm | |
| Conductor Resistance | 60 Ω/km | |
| Outer Diameter | 4.6mm | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +85°C | |
| Insulation Material | PVC | |
| Fire Behaviour | Flame Retardant | |
| Standards Met | CSA, EN 60529, IEC, UL | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Oil Resistant | Yes | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 3 | ||
Sheath Colour Grey | ||
Length 2m | ||
Sheath Material PUR | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 2 Gender Male | ||
Connector 2 Housing Gender Male | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 M12 | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 250 V ac/dc | ||
IP Rating IP66K, IP67 | ||
Size of Strands 0.15 mm | ||
Connector 1 Housing Gender Female | ||
Number of Strands 19 | ||
American Wire Gauge 24 AWG | ||
Operating Temperature Range -25 → +85 °C | ||
Core Strands 19/0.15 mm | ||
Minimum Bend Radius 10 x 4.6 mm, 5 x 4.6 mm | ||
Conductor Resistance 60 Ω/km | ||
Outer Diameter 4.6mm | ||
Conductor Material Copper | ||
Maximum Operating Temperature +85°C | ||
Insulation Material PVC | ||
Fire Behaviour Flame Retardant | ||
Standards Met CSA, EN 60529, IEC, UL | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Oil Resistant Yes | ||
