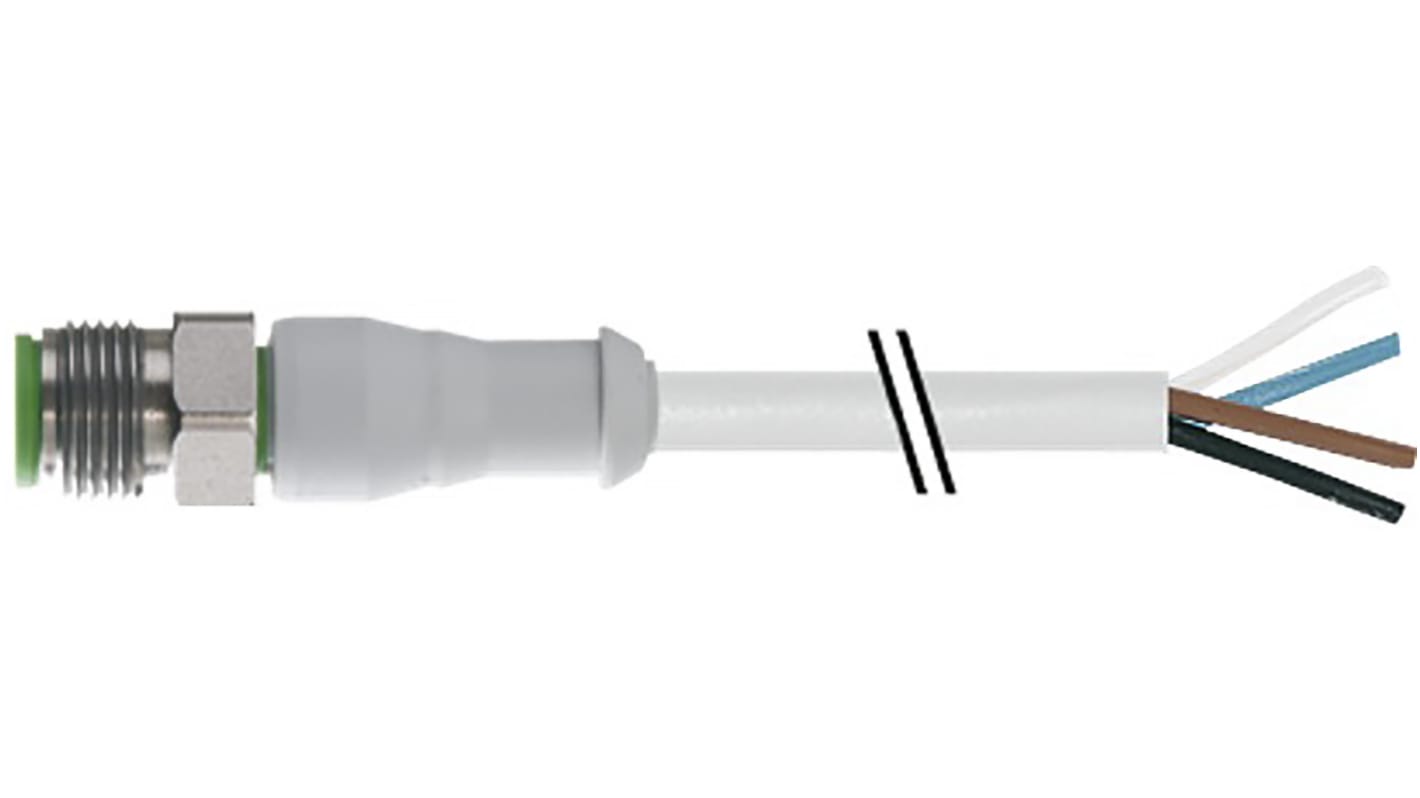

RS PRO Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 154-7742
- Brand:
- RS PRO
Available to back order for despatch 21/06/2024
Added
Price Each
£14.47
(exc. VAT)
£17.36
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £14.47 |
| 5 - 9 | £13.03 |
| 10 + | £12.32 |
- RS Stock No.:
- 154-7742
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
RS Pro Food and Beverage Cable Assembly
From the trusted RS Pro brand, these industrial connector cable assemblies are specially designed for use in the food and beverage industry.
The plastic housings have a stainless steel locking thread that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• CSA and Eurolab approved
• Self-Securing Screw Thread
• IP65, IP66K, IP67, IP68 When Tightened
• A-Coded
• Flame Retardant UL 1581 VW1 / CSA FT1
The plastic housings have a stainless steel locking thread that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• CSA and Eurolab approved
• Self-Securing Screw Thread
• IP65, IP66K, IP67, IP68 When Tightened
• A-Coded
• Flame Retardant UL 1581 VW1 / CSA FT1
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 4 |
| Sheath Colour | Grey |
| Sheath Material | PUR |
| Length | 5m |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Male |
| Connector 1 | M12 |
| Connector 2 | Unterminated |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 250 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP67 |
| Insulation Material | PVC |
| Cable Shape | Multicore |
| Oil Resistant | Yes |
| American Wire Gauge | 22 AWG |
| Operating Temperature Range | -25 → +85 °C |
| Minimum Bend Radius | 10 x 5 mm |
| Standards Met | CSA, UL |
| Maximum Operating Temperature | +85°C |
| Connector 1 Housing Gender | Male |
| Minimum Operating Temperature | -25°C |
| Fire Behaviour | Flame Retardant |
| Outer Diameter | 5mm |
