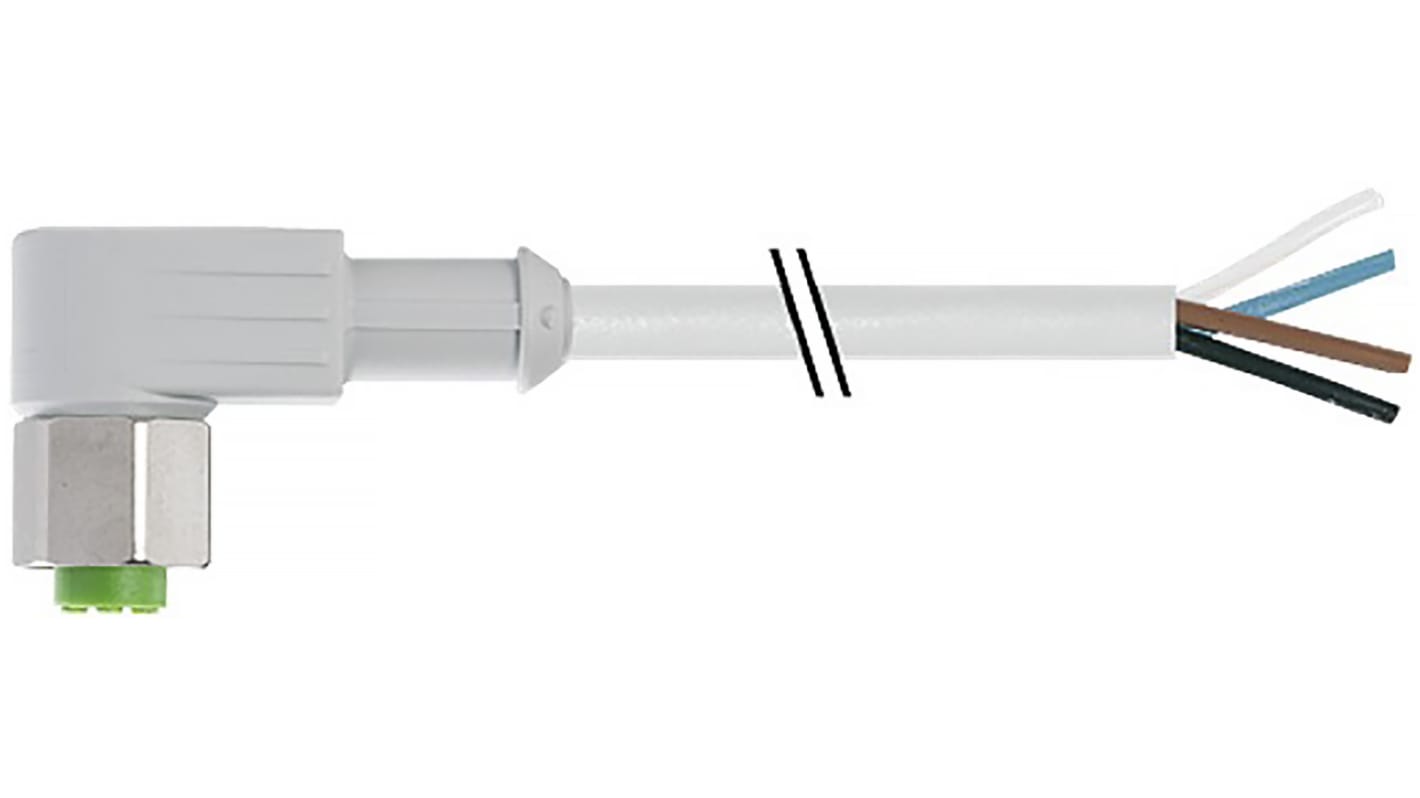

RS PRO Right Angle Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 154-7738
- Brand:
- RS PRO
Subtotal (1 unit)*
£30.28
(exc. VAT)
£36.34
(inc. VAT)
FREE delivery for orders over £50.00
- 7 unit(s) ready to ship
Units | Per unit |
---|---|
1 - 4 | £30.28 |
5 - 9 | £27.24 |
10 + | £25.73 |
*price indicative
- RS Stock No.:
- 154-7738
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 8 | |
Cross Sectional Area | 0.25 mm² | |
Length | 5m | |
Sheath Material | PUR | |
Sheath Colour | Grey | |
Connector 1 Number of Contacts | 8 | |
Connector 1 Orientation | Right Angle | |
Connector 1 | M12 | |
Connector 1 Gender | Female | |
Connector 2 | Unterminated | |
Shielded/Unshielded | Unshielded | |
Voltage Rating | 30 V ac/dc | |
Current Rating | 4 A | |
IP Rating | IP65, IP67 | |
Fire Behaviour | Flame Retardant | |
Maximum Operating Temperature | +85°C | |
Standards Met | CSA, UL | |
Insulation Material | PVC | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -25°C | |
Minimum Bend Radius | 15 x 6 mm | |
Cable Shape | Multicore | |
Connector 1 Housing Gender | Female | |
Outer Diameter | 6mm | |
Operating Temperature Range | -25 → +85 °C | |
American Wire Gauge | 24 AWG | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 8 | ||
Cross Sectional Area 0.25 mm² | ||
Length 5m | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 30 V ac/dc | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +85°C | ||
Standards Met CSA, UL | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -25°C | ||
Minimum Bend Radius 15 x 6 mm | ||
Cable Shape Multicore | ||
Connector 1 Housing Gender Female | ||
Outer Diameter 6mm | ||
Operating Temperature Range -25 → +85 °C | ||
American Wire Gauge 24 AWG | ||
- COO (Country of Origin):
- DE
RS Pro Food and Beverage Cable Assembly
The plastic housings have a stainless steel locking thread that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• CSA and Eurolab approved
• Self-Securing Screw Thread
• IP65, IP66K, IP67, IP68 When Tightened
• A-Coded
• Flame Retardant UL 1581 VW1 / CSA FT1
