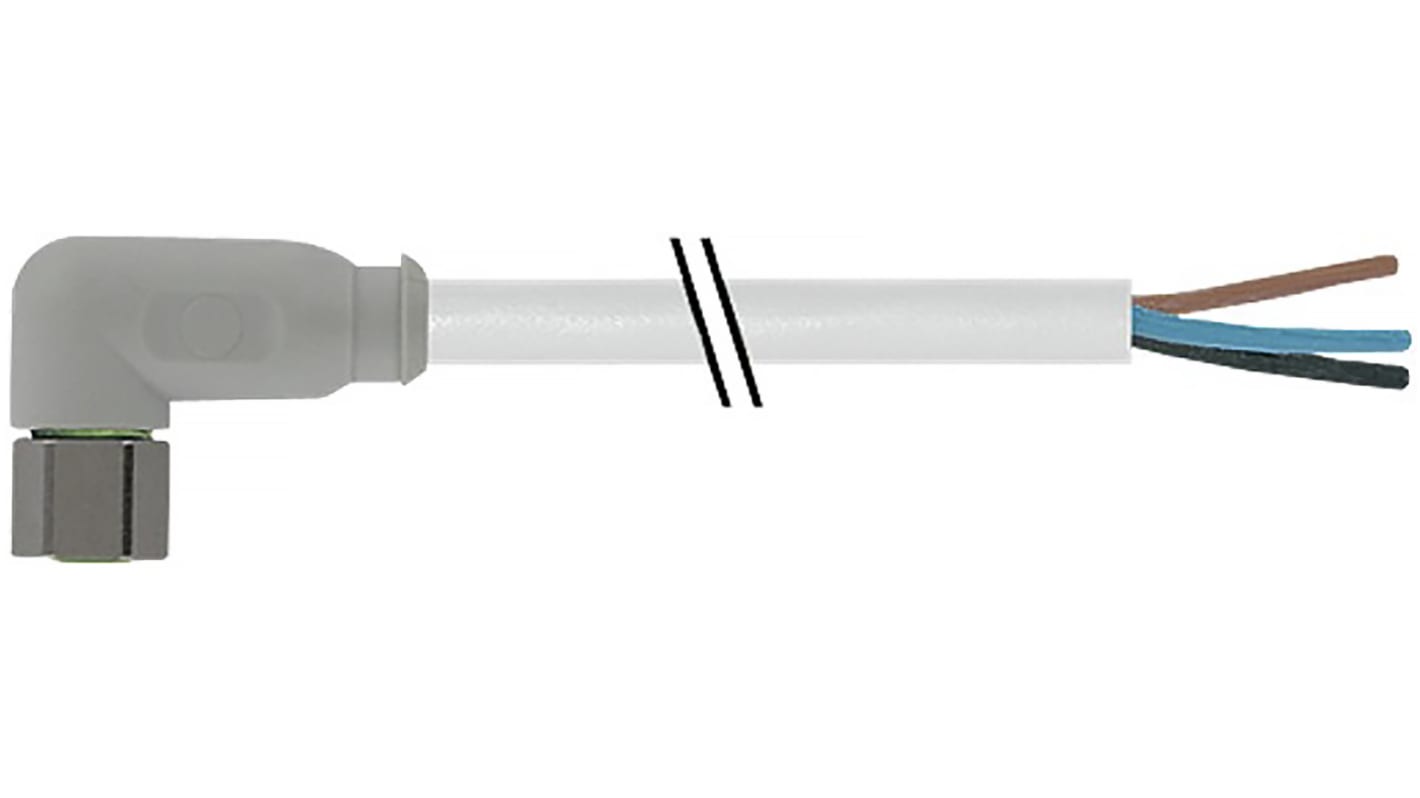

RS PRO Right Angle Female 3 way M8 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 154-7710
- Brand:
- RS PRO
Subtotal (1 unit)*
£28.92
(exc. VAT)
£34.70
(inc. VAT)
FREE delivery for orders over £50.00
- 20 unit(s) ready to ship
Units | Per unit |
---|---|
1 - 4 | £28.92 |
5 - 9 | £26.00 |
10 + | £24.56 |
*price indicative
- RS Stock No.:
- 154-7710
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.25 mm² | |
Number of Cores | 3 | |
Sheath Colour | Grey | |
Length | 5m | |
Sheath Material | PUR | |
Connector 1 Number of Contacts | 3 | |
Connector 1 Gender | Female | |
Connector 1 Orientation | Right Angle | |
Connector 1 | M8 | |
Connector 2 | Unterminated | |
Shielded/Unshielded | Unshielded | |
Current Rating | 4 A | |
Voltage Rating | 60 V ac/dc | |
IP Rating | IP65, IP66K, IP67, IP68 | |
Operating Temperature Range | -25 → +85 °C | |
Connector 1 Housing Gender | Female | |
Number of Strands | 14 | |
American Wire Gauge | 24 AWG | |
Conductor Resistance | 60 Ω/km | |
Outer Diameter | 4.5mm | |
Conductor Material | Copper | |
Standards Met | CSA, cSAus, EN 60529, UL | |
Maximum Operating Temperature | +85°C | |
Size of Strands | 0.15 mm | |
Core Strands | 14/0.15 mm | |
Insulation Material | PVC | |
Cable Shape | Multicore | |
Oil Resistant | Yes | |
Fire Behaviour | Flame Retardant | |
Minimum Operating Temperature | -25°C | |
Minimum Bend Radius | 10 x 4.5 mm, 5 x 4.5 mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 3 | ||
Sheath Colour Grey | ||
Length 5m | ||
Sheath Material PUR | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M8 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 60 V ac/dc | ||
IP Rating IP65, IP66K, IP67, IP68 | ||
Operating Temperature Range -25 → +85 °C | ||
Connector 1 Housing Gender Female | ||
Number of Strands 14 | ||
American Wire Gauge 24 AWG | ||
Conductor Resistance 60 Ω/km | ||
Outer Diameter 4.5mm | ||
Conductor Material Copper | ||
Standards Met CSA, cSAus, EN 60529, UL | ||
Maximum Operating Temperature +85°C | ||
Size of Strands 0.15 mm | ||
Core Strands 14/0.15 mm | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Fire Behaviour Flame Retardant | ||
Minimum Operating Temperature -25°C | ||
Minimum Bend Radius 10 x 4.5 mm, 5 x 4.5 mm | ||
- COO (Country of Origin):
- DE
RS Pro Food and Beverage Cable Assembly
The plastic housings have a stainless steel locking thread that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• CSA and Eurolab approved
• Self-Securing Screw Thread
• IP65, IP66K, IP67, IP68 When Tightened
• Flame Retardant UL 1581 VW1 / CSA FT1
