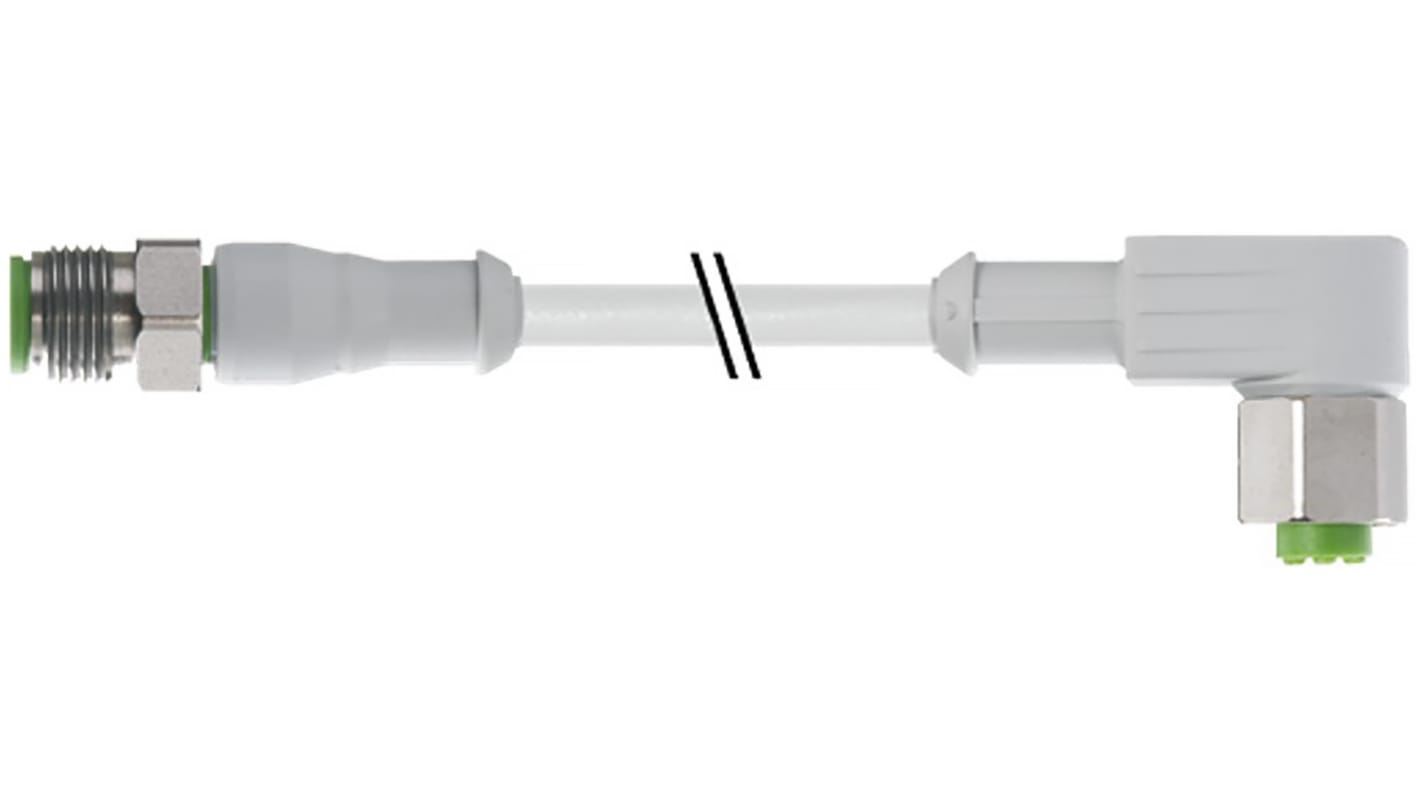

RS PRO Right Angle Female 5 way M12 to Straight Male 5 way M12 Sensor Actuator Cable, 5m
- RS Stock No.:
- 154-7704
- Brand:
- RS PRO
Subtotal (1 unit)*
£28.16
(exc. VAT)
£33.79
(inc. VAT)
FREE delivery for orders over £50.00
- 12 unit(s) ready to ship
Units | Per unit |
|---|---|
| 1 - 4 | £28.16 |
| 5 - 9 | £25.31 |
| 10 + | £23.96 |
*price indicative
- RS Stock No.:
- 154-7704
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.34 mm² | |
| Length | 5m | |
| Sheath Colour | Grey | |
| Sheath Material | PUR | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 | M12 | |
| Connector 1 Gender | Female | |
| Connector 2 Number of Contacts | 5 | |
| Connector 2 Orientation | Straight | |
| Connector 2 Gender | Male | |
| Connector 2 | M12 | |
| Connector 2 Housing Gender | Male | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 125 V ac/dc | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67 | |
| Standards Met | CSA, UL | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -25°C | |
| Oil Resistant | Yes | |
| Insulation Material | PVC | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +85°C | |
| Minimum Bend Radius | 10 x 5.2 mm | |
| Outer Diameter | 5.2mm | |
| Operating Temperature Range | -25 → +85 °C | |
| Connector 1 Housing Gender | Female | |
| American Wire Gauge | 22 AWG | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Cores 5 | ||
Cross Sectional Area 0.34 mm² | ||
Length 5m | ||
Sheath Colour Grey | ||
Sheath Material PUR | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 M12 | ||
Connector 1 Gender Female | ||
Connector 2 Number of Contacts 5 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Male | ||
Connector 2 M12 | ||
Connector 2 Housing Gender Male | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 125 V ac/dc | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Standards Met CSA, UL | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Oil Resistant Yes | ||
Insulation Material PVC | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +85°C | ||
Minimum Bend Radius 10 x 5.2 mm | ||
Outer Diameter 5.2mm | ||
Operating Temperature Range -25 → +85 °C | ||
Connector 1 Housing Gender Female | ||
American Wire Gauge 22 AWG | ||
- COO (Country of Origin):
- DE
RS Pro Food and Beverage Cable Assembly
With a screw thread connector system that ensures minimal vibration, the mated connectors also ensure a high degree of environmental protection against liquids and dust ingress.
The PVC cable jacket has excellent resistance to oil, gasoline and chemicals, meaning the cable assembly can be used in more challenging environments.
All of these factors combine to make a dependable and versatile cable assembly that is ideal for use in machinery in food safe environments, or in conditions where hygiene is a high priority.
• UL, CSA and Eurolab approved
• Self-Securing Screw Thread
• IP65, IP68 When Tightened
