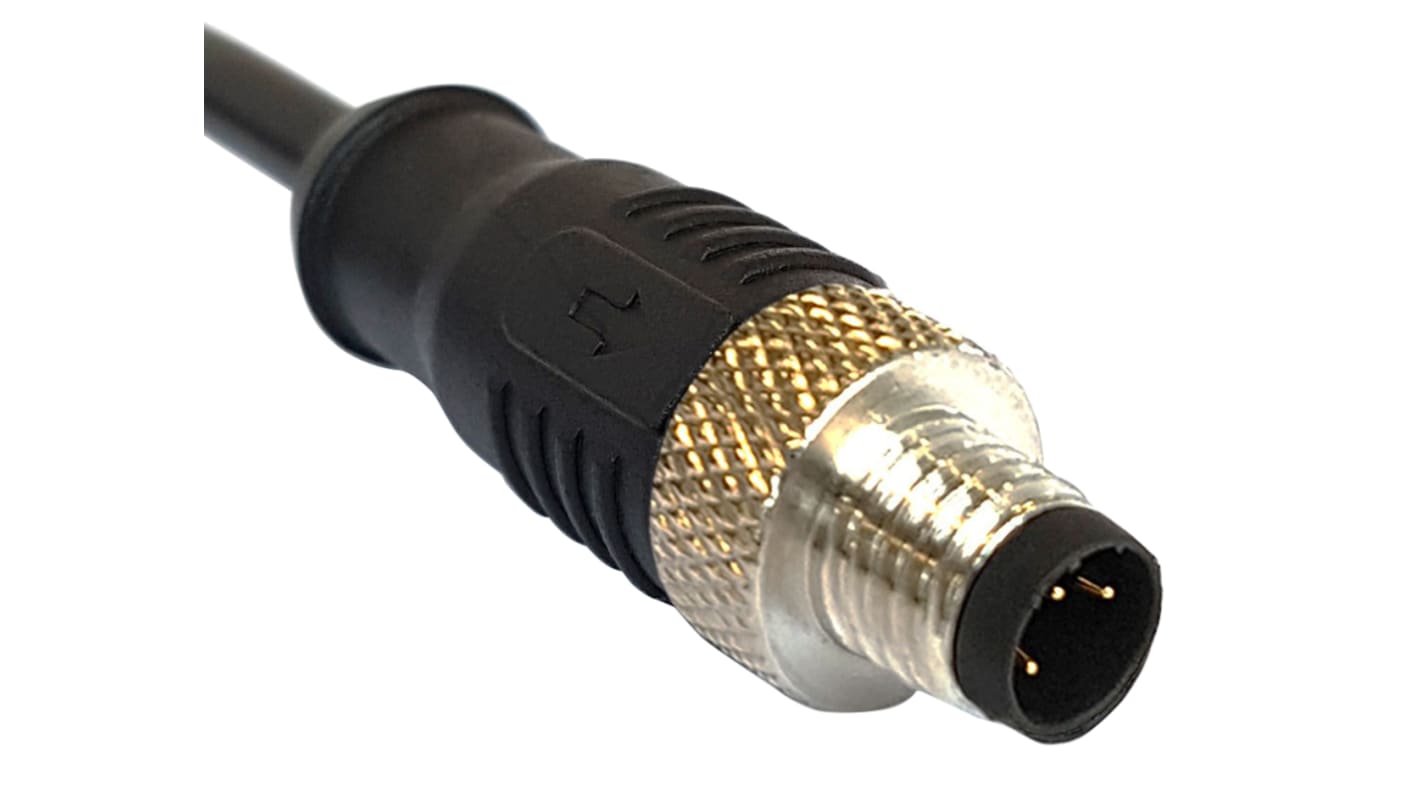

Bulgin Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6885
- Mfr. Part No.:
- PXPPVC12FIM05BCL010PVC
- Brand:
- Bulgin
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 144-6885
- Mfr. Part No.:
- PXPPVC12FIM05BCL010PVC
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M12 | |
| Number of Cores | 5 | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Length | 1m | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Orientation | Straight | |
| Connector 1 Gender | Male | |
| Connector 2 | Unterminated | |
| Coding | B | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 60 V | |
| Current Rating | 4 A | |
| IP Rating | IP67 | |
| Conductor Material | Brass | |
| Connector 1 Housing Gender | Male | |
| Cable Shape | Single Core | |
| Maximum Operating Temperature | +80°C | |
| Outer Diameter | 4.6 → 8mm | |
| Conductor Resistance | <10 mΩ | |
| Operating Temperature Range | -25 → +80 °C | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M12 | ||
Number of Cores 5 | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Length 1m | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 2 Unterminated | ||
Coding B | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 60 V | ||
Current Rating 4 A | ||
IP Rating IP67 | ||
Conductor Material Brass | ||
Connector 1 Housing Gender Male | ||
Cable Shape Single Core | ||
Maximum Operating Temperature +80°C | ||
Outer Diameter 4.6 → 8mm | ||
Conductor Resistance <10 mΩ | ||
Operating Temperature Range -25 → +80 °C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- CN
Bulgin’s M12 connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
Reliable industry standard screw locking mechanism
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
M12 Flex Inline Body Male
