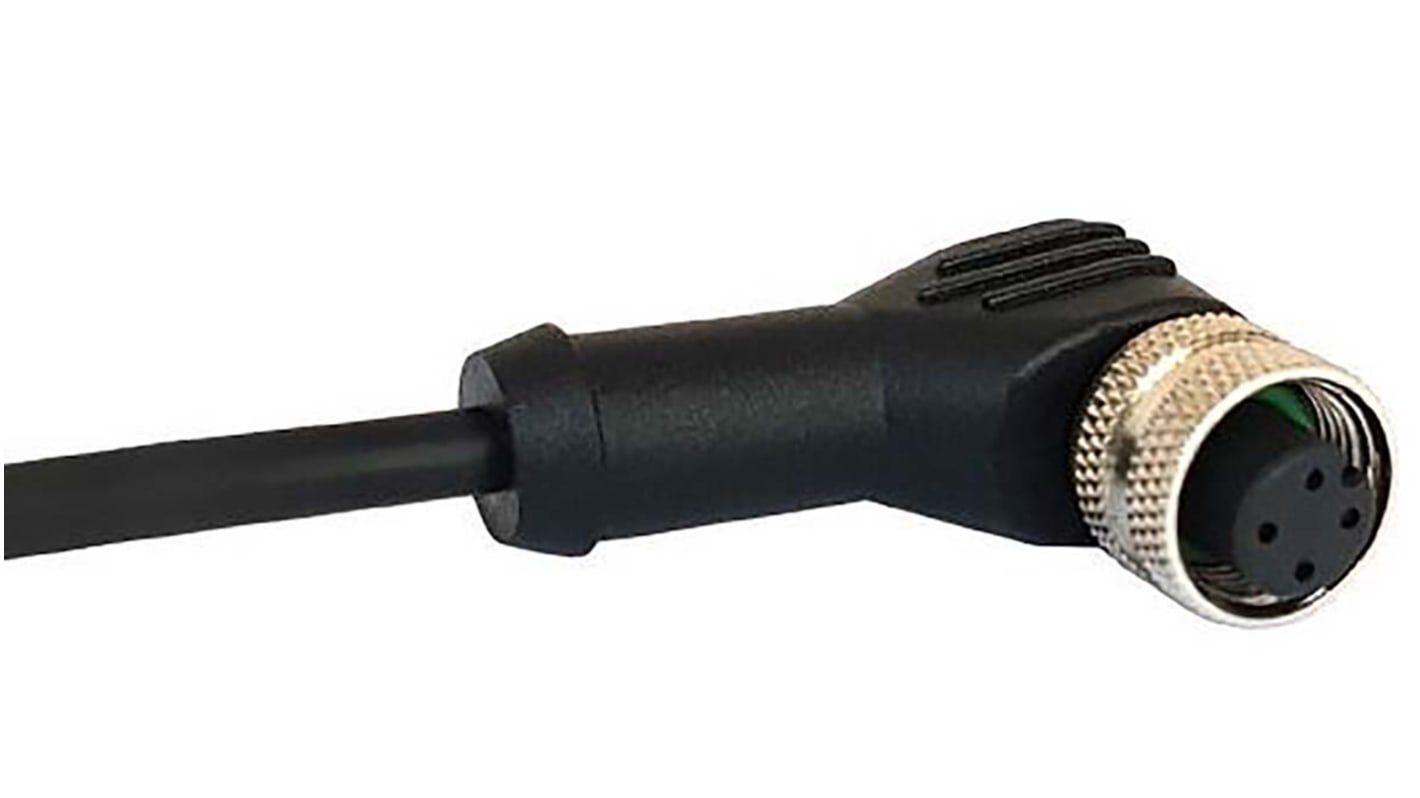

Bulgin Right Angle Female 8 way M12 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6839
- Mfr. Part No.:
- PXPPVC12RAF08ACL010PVC
- Brand:
- Bulgin
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 144-6839
- Mfr. Part No.:
- PXPPVC12RAF08ACL010PVC
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M12 | |
| Number of Cores | 8 | |
| Length | 1m | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 30 V | |
| Current Rating | 2 A | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +80°C | |
| Cable Shape | Single Core | |
| Conductor Material | Phosphor Bronze | |
| Operating Temperature Range | -25 → +80 °C | |
| Connector 1 Housing Gender | Female | |
| Conductor Resistance | <10 mΩ | |
| Outer Diameter | 4.6 → 8mm | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M12 | ||
Number of Cores 8 | ||
Length 1m | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 30 V | ||
Current Rating 2 A | ||
IP Rating IP67 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
Cable Shape Single Core | ||
Conductor Material Phosphor Bronze | ||
Operating Temperature Range -25 → +80 °C | ||
Connector 1 Housing Gender Female | ||
Conductor Resistance <10 mΩ | ||
Outer Diameter 4.6 → 8mm | ||
- COO (Country of Origin):
- CN
Bulgin’s M12 connectors provide a cost effective and flexible connectivity solution for onsite installations, helping to decrease downtime in process control, manufacturing automation and industrial instrumentation applications M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
Reliable industry standard screw locking mechanism
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
IP67 degree of protection
A, B and D Coded versions
Field installable, cable and panel mount options
Plastic and metal options variants
Straight and right angled forms
Overmolded PVC or PUR cable connectors
Shielded options
Pole variants from 3 – 12
M12 Right Angled Female
