Bulgin Right Angle Female 4 way M8 to Unterminated Sensor Actuator Cable, 1m
- RS Stock No.:
- 144-6728
- Mfr. Part No.:
- PXPTPU08RAF04ACL010PUR
- Brand:
- Bulgin
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 144-6728
- Mfr. Part No.:
- PXPTPU08RAF04ACL010PUR
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Series | M8 | |
| Number of Cores | 4 | |
| Sheath Material | PUR | |
| Sheath Colour | Black | |
| Length | 1m | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Orientation | Right Angle | |
| Connector 1 Gender | Female | |
| Connector 1 | M8 | |
| Connector 2 | Unterminated | |
| Coding | A | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 3 A | |
| Voltage Rating | 30 V | |
| IP Rating | IP67 | |
| Cable Shape | Single Core | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -25°C | |
| Conductor Material | Phosphor Bronze | |
| Connector 1 Housing Gender | Female | |
| Operating Temperature Range | -25 → +80 °C | |
| Conductor Resistance | <10 mΩ | |
| Outer Diameter | 3 → 3.5mm | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Series M8 | ||
Number of Cores 4 | ||
Sheath Material PUR | ||
Sheath Colour Black | ||
Length 1m | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Orientation Right Angle | ||
Connector 1 Gender Female | ||
Connector 1 M8 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Unshielded | ||
Current Rating 3 A | ||
Voltage Rating 30 V | ||
IP Rating IP67 | ||
Cable Shape Single Core | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
Conductor Material Phosphor Bronze | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -25 → +80 °C | ||
Conductor Resistance <10 mΩ | ||
Outer Diameter 3 → 3.5mm | ||
- COO (Country of Origin):
- CN
Bulgin’s M8 circular connectors and over molded cables are designed to fulfil the ever growing demand for sensor, actuator and data connections in process control, industrial machinery and factory automation applications. These compact connectors with screw lock coupling are mechanically and chemically robust, easy to install, minimise downtime and help to increase production efficiency.
Straight & right angled configurations
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m
3, 4 or 5 contacts
Metal & plastic shell options
A & B coded
Environmental protection class IP67
Field installable connectors, panel mounts & overmolded cable options
PVC or PUR jacketed cable variants with many lengths from 1m – 15m

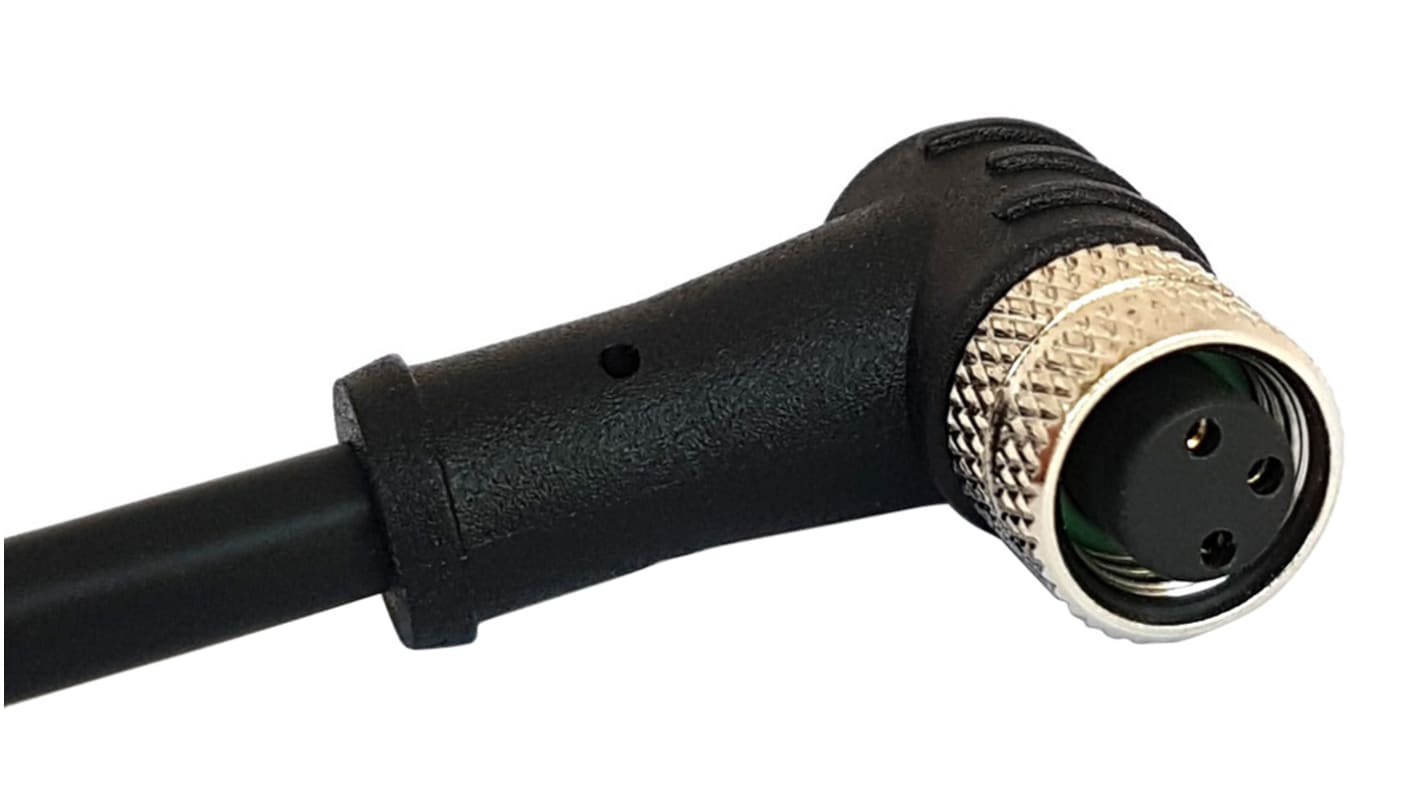

M8 Right Angled Female
