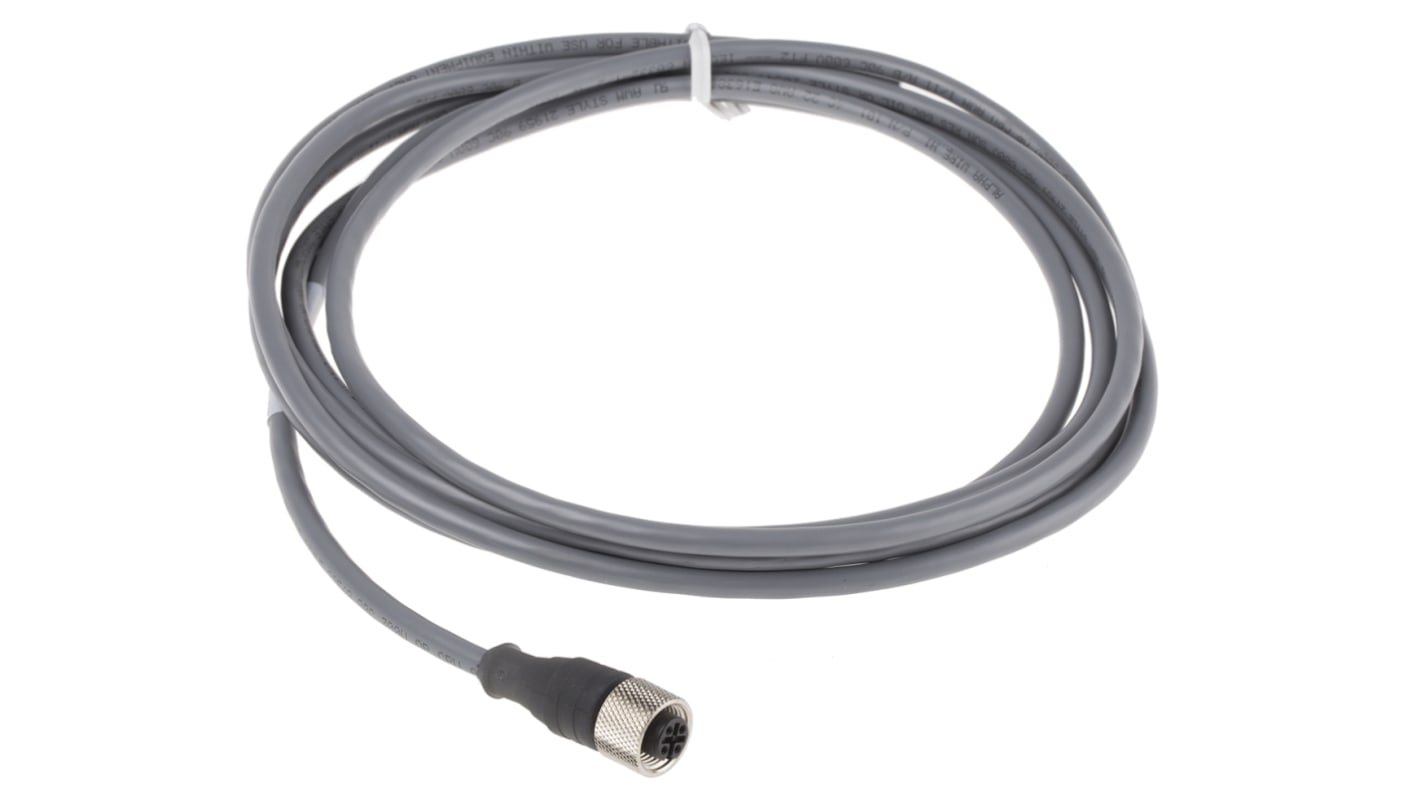

Alpha Wire Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 3m

RS Stock No.:: 131-4685
Mfr. Part No.:: AR0500102 SL 357
Brand:: Alpha Wire

Alpha Wire Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 3m

Image representative of range

Bulk discount available

Subtotal (1 unit)*

£22.02

(exc. VAT)

£26.42

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 8 unit(s), ready to ship

Units	Per unit
1 - 4	£22.02
5 - 24	£20.94
25 - 49	£19.79
50 +	£18.69

*price indicative

Sensor & Actuator cables to Sensor Accessories

Complete Your Connection with the Right Accessories

Sensor & actuator cables are essential for reliable connectivity—but to get the most out of your setup, don’t overlook the accessories. From mounting hardware to protective covers and connectors, our sensor accessories help you install, secure, and optimise your system. If you're browsing cables, explore our accessories range to ensure a clean, efficient, and long-lasting installation.

Shop Now

RS Stock No.:: 131-4685
Mfr. Part No.:: AR0500102 SL 357
Brand:: Alpha Wire

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Alpha Wire
	Series	Alpha Connect
	Number of Cores	5
	Cross Sectional Area	0.34 mm²
	Length	3m
	Sheath Colour	Grey
	Sheath Material	PUR
	Connector 1 Number of Contacts	5
	Connector 1 Gender	Female
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 2	Unterminated
	Shielded/Unshielded	Unshielded
	Voltage Rating	600 V
	Current Rating	2.2 A
	IP Rating	IP67, IP68
	Conductor Material	Copper
	Maximum Operating Temperature	+105°C
	Core Strands	26/36
	Insulation Material	PPE
	Fire Behaviour	Low Smoke Zero Halogen (LSZH)
	Standards Met	ANSI/UL 2238, cRU, CSA-C22.2 No. 182.3, UL File Number E485156
	Cable Shape	Multicore
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Connector 1 Housing Gender	Female
	Operating Temperature Range	-40 → +105 °C
	Number of Strands	26
	Minimum Bend Radius	4 x D (Static), 6 x D (Dynamic)
	Outer Diameter	5.33mm
	American Wire Gauge	22 AWG

	Select all
	Brand Alpha Wire
	Series Alpha Connect
	Number of Cores 5
	Cross Sectional Area 0.34 mm²
	Length 3m
	Sheath Colour Grey
	Sheath Material PUR
	Connector 1 Number of Contacts 5
	Connector 1 Gender Female
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 2 Unterminated
	Shielded/Unshielded Unshielded
	Voltage Rating 600 V
	Current Rating 2.2 A
	IP Rating IP67, IP68
	Conductor Material Copper
	Maximum Operating Temperature +105°C
	Core Strands 26/36
	Insulation Material PPE
	Fire Behaviour Low Smoke Zero Halogen (LSZH)
	Standards Met ANSI/UL 2238, cRU, CSA-C22.2 No. 182.3, UL File Number E485156
	Cable Shape Multicore
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Connector 1 Housing Gender Female
	Operating Temperature Range -40 → +105 °C
	Number of Strands 26
	Minimum Bend Radius 4 x D (Static), 6 x D (Dynamic)
	Outer Diameter 5.33mm
	American Wire Gauge 22 AWG

AR0500102 SL Datasheet

Alpha Wire Flexible Cordsets with M12 Connectors

Flexible cordsets are widely used in industrial automation and factory floor applications. The M12 connector provides a compact size that enables cleaner cable management. These M12 cordsets from Alpha Wire can handle flexible applications up to 5 million flex life cycles. Alpha Wire M12 connector cordsets are available in 300 V to 600 V versions with a range of sheath and insulation materials.

Features and Benefits

Slate zero-halogen Polyurethane jacket

mPPE insulation

22 AWG (26/36) bare copper conductors

Temperature Range: -40 °C to +105 °C

5 million flex life cycles

Bend Radius: 4x static, 5x dynamic

600 V

Approvals

AWM 21959 • UL • IP67 • IP68/NEMA 6P Protection

Alpha Wire Sensor Connectors
