Phoenix Contact Free Ends to Straight Female 4 way M8 Sensor Actuator Cable, 10m
- RS Stock No.:
- 521-165
- Mfr. Part No.:
- 1401472
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£1,020.50
(exc. VAT)
£1,224.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £1,020.50 | £20.41 |
*price indicative
- RS Stock No.:
- 521-165
- Mfr. Part No.:
- 1401472
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-4P-10 | |
Cross Sectional Area | 4 x 0.25 mm² | |
Number of Cores | 4 | |
Sheath Colour | Black | |
Length | 10m | |
Sheath Material | Polyvinyl Chloride PVC | |
Connector 1 | Free Ends | |
Connector 2 Number of Contacts | 4 | |
Connector 2 | M8 | |
Connector 2 Orientation | Straight | |
Connector 2 Gender | Female | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-4P-10 | ||
Cross Sectional Area 4 x 0.25 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Length 10m | ||
Sheath Material Polyvinyl Chloride PVC | ||
Connector 1 Free Ends | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 M8 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- PL

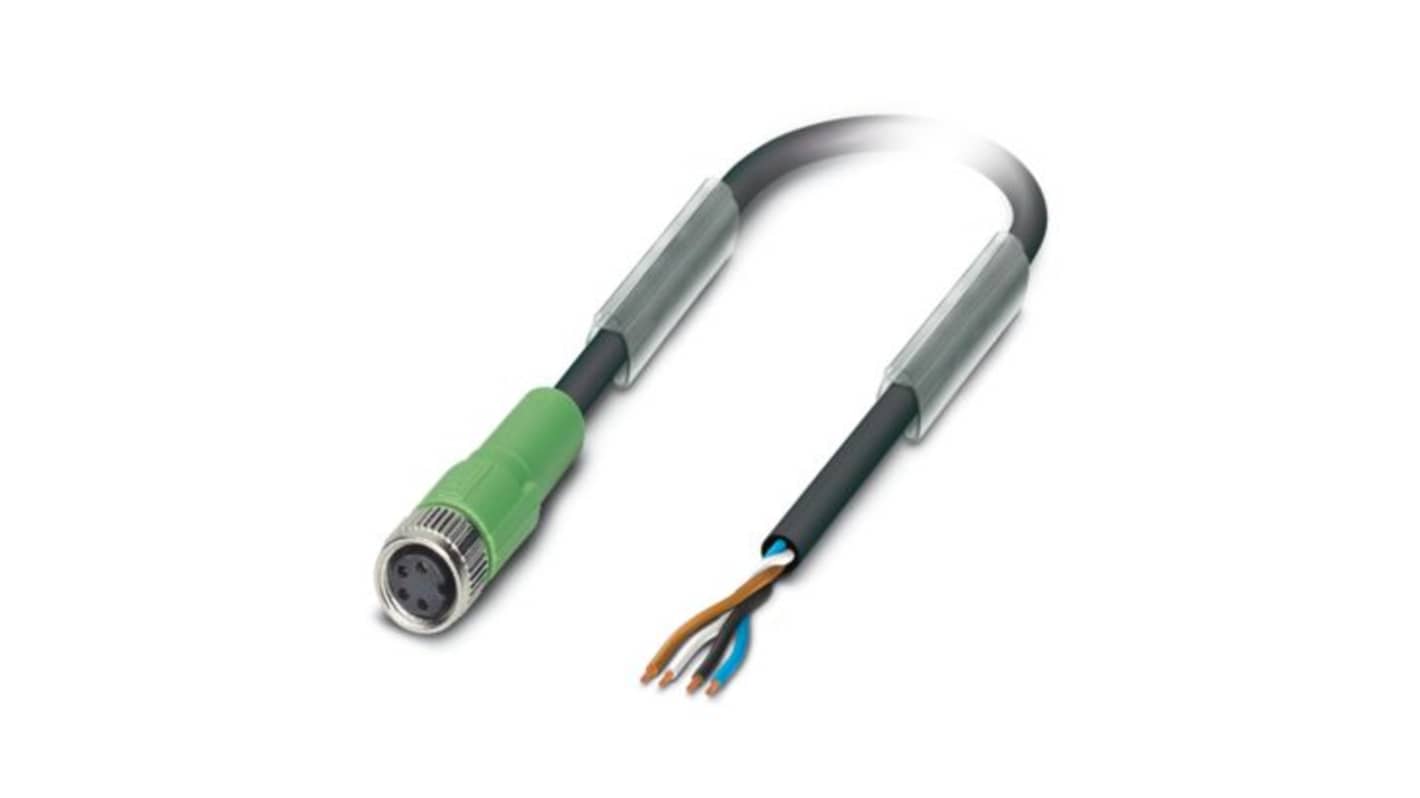

The Phoenix Contact sensor or actuator cable is a 4-position PVC cable in black (RAL 9005). It features a free cable end on one side and a straight M8 socket with A coding on the other. The cable has a length of 10 meters.
Flammability rating according to UL 94 HB
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuSn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Stainless steel
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuSn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Stainless steel
