Phoenix Contact Straight Male 8 way M12 to Straight Female 8 way M12 Actuator/Sensor Cable, 20m
- RS Stock No.:
- 518-096
- Mfr. Part No.:
- 1403692
- Brand:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
£2,380.25
(exc. VAT)
£2,856.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £2,380.25 | £95.21 |
*price indicative
- RS Stock No.:
- 518-096
- Mfr. Part No.:
- 1403692
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 8 | |
| Length | 20m | |
| Sheath Material | Polyurethane PUR | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 8 | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 2 Gender | Female | |
| Connector 2 Orientation | Straight | |
| Connector 2 Number of Contacts | 8 | |
| Connector 2 | M12 | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 8 | ||
Length 20m | ||
Sheath Material Polyurethane PUR | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 8 | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 2 Gender Female | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 8 | ||
Connector 2 M12 | ||
- COO (Country of Origin):
- PL

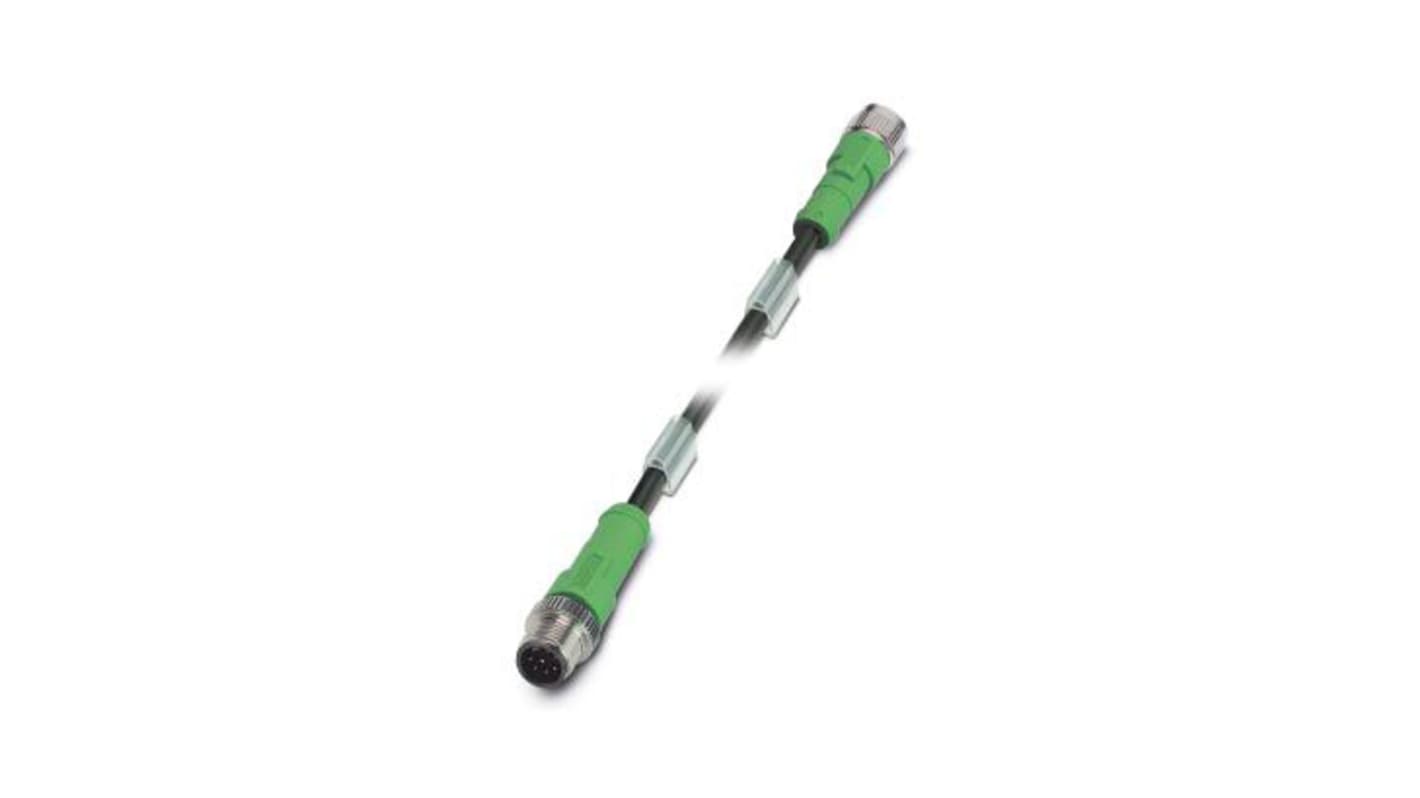

The Phoenix Contact sensor or actuator cable is an 8-position, black-gray RAL 7021 PUR halogen-free cable, featuring a straight M12 plug with A coding on one end and a straight M12 socket with A coding on the other, with a cable length of 20 meters.
Flammability rating according to UL 94 HB
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuZn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Stainless steel
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuZn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Stainless steel
