Phoenix Contact Straight Female 8 way M12 to Straight Free Ends Actuator/Sensor Cable, 2m

View all Sensor & Actuator Cables

Subtotal (1 pack of 50 units)*

£1,383.50

(exc. VAT)

£1,660.20

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£1,383.50£27.67

*price indicative

RS Stock No.:
518-094
Mfr. Part No.:
1402903
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC

Number of Cores

8

Sheath Colour

Black

Sheath Material

Polyurethane PUR

Length

2m

Connector 1 Orientation

Straight

Connector 1 Gender

Female

Connector 1

M12

Connector 1 Number of Contacts

8

Connector 2 Orientation

Straight

Connector 2

Free Ends

COO (Country of Origin):
PL

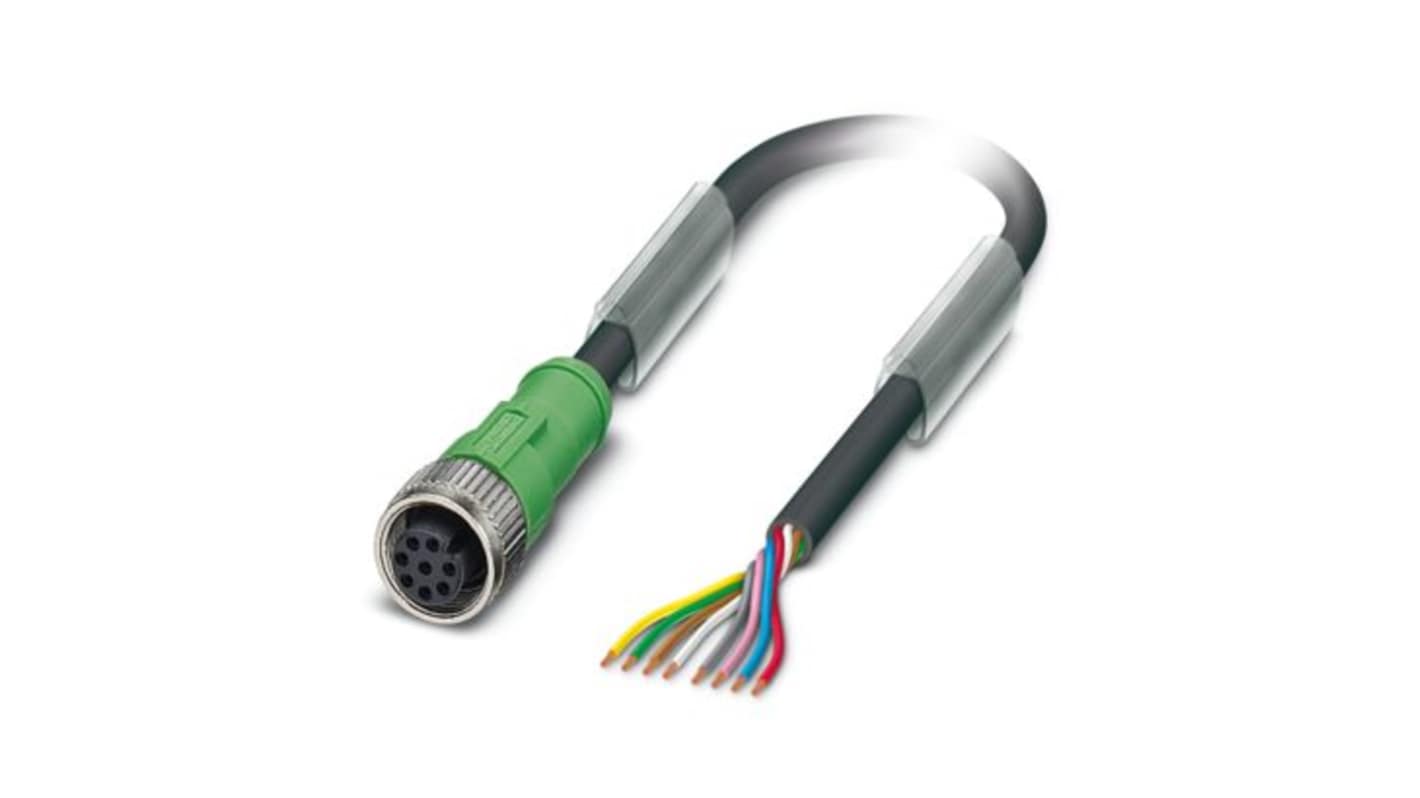

The Phoenix Contact sensor or actuator cable is an 8-position, black-gray RAL 7021 PUR halogen-free cable with shielding, featuring a free cable end on one side and a straight M12 socket with A coding on the other, with a cable length of 2 meters. The shield is not connected to the knurl.

Flammability rating according to UL 94 HB
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuZn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Zinc die-cast, nickel-plated
