Phoenix Contact Female 12 way Free Cable End to 12 way Straight Socket M12 SPEEDCON Sensor Actuator Cable, 15 m
- RS Stock No.:
- 518-089
- Mfr. Part No.:
- 1402176
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£159.12
(exc. VAT)
£190.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £159.12 |
*price indicative
- RS Stock No.:
- 518-089
- Mfr. Part No.:
- 1402176
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC-12P-15 | |
| Product Type | Sensor Actuator Cable | |
| Jacket Colour | Black | |
| Cable Length | 15m | |
| Jacket Material | Polyurethane, Polyvinyl Chloride | |
| Connector Type A | Free Cable End | |
| Number of Contacts A | 12 | |
| Connector Gender A | Female | |
| Number of Contacts B | 12 | |
| Connector Type B | Straight Socket M12 SPEEDCON | |
| Voltage | 30 V | |
| IP Rating | IP65, IP67 | |
| Standards/Approvals | VW-1, DIN EN 60332-1-2, UL Listed Approval ID: E221474, DIN EN 60811-2-1, EN 50396, UL AWM Style 20233 / 1061 (80°C/300 V) | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC-12P-15 | ||
Product Type Sensor Actuator Cable | ||
Jacket Colour Black | ||
Cable Length 15m | ||
Jacket Material Polyurethane, Polyvinyl Chloride | ||
Connector Type A Free Cable End | ||
Number of Contacts A 12 | ||
Connector Gender A Female | ||
Number of Contacts B 12 | ||
Connector Type B Straight Socket M12 SPEEDCON | ||
Voltage 30 V | ||
IP Rating IP65, IP67 | ||
Standards/Approvals VW-1, DIN EN 60332-1-2, UL Listed Approval ID: E221474, DIN EN 60811-2-1, EN 50396, UL AWM Style 20233 / 1061 (80°C/300 V) | ||
- COO (Country of Origin):
- DE

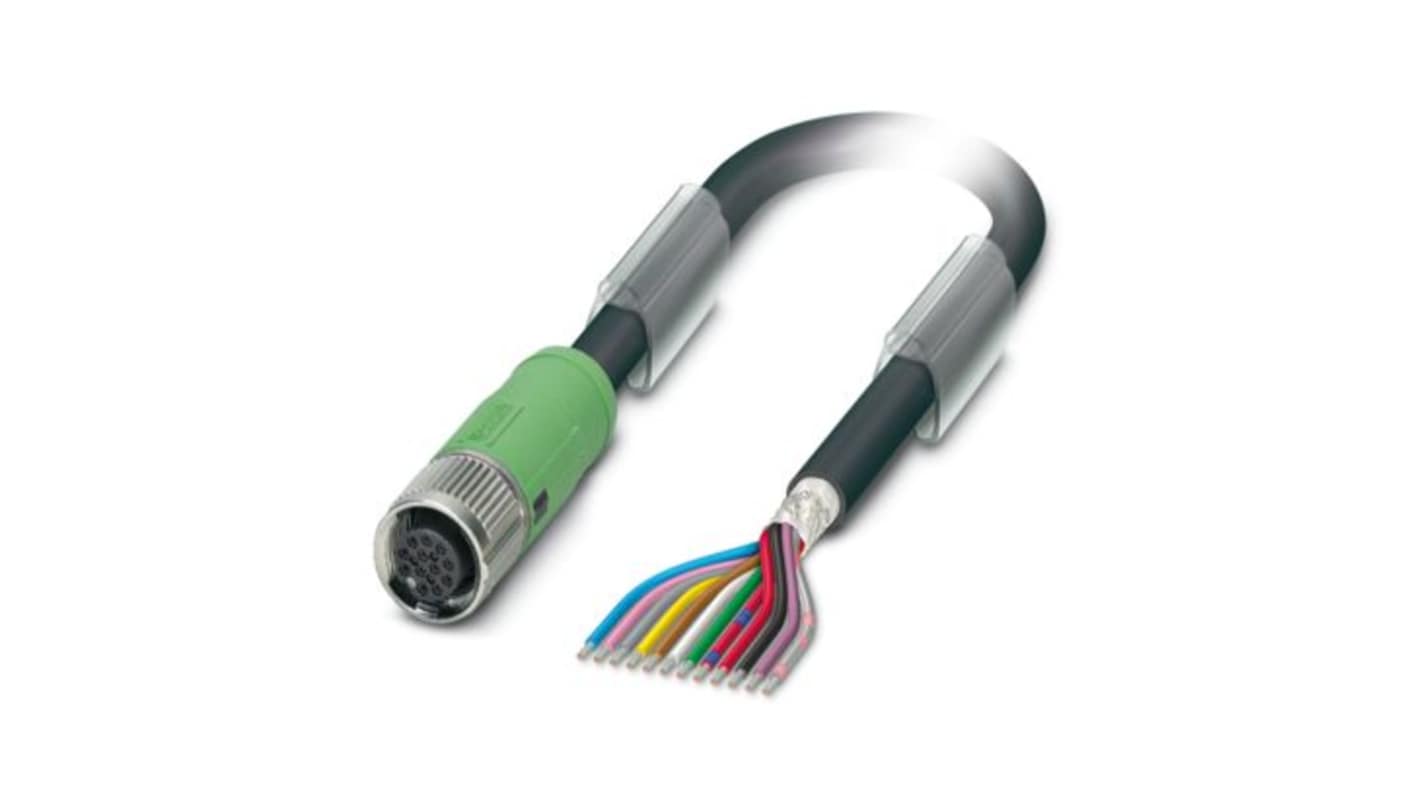

The Phoenix Contact sensor or actuator cable is a 12-position, shielded cable made of PUR/PVC in black RAL 9005. It features a free cable end on one side and a straight M12 SPEEDCON socket with A coding on the other. The cable has a length of 15 meters.
Flammability rating according to UL 94 V0
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuZn
Contact surface material Ni or Au
Contact carrier material PA 6.6
