Phoenix Contact Right Angle Male 4 way M12 to Right Angle Female 4 way M12 Actuator/Sensor Cable, 3m

View all Sensor & Actuator Cables

Subtotal (1 pack of 50 units)*

£1,351.50

(exc. VAT)

£1,621.80

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£1,351.50£27.03

*price indicative

RS Stock No.:
517-982
Mfr. Part No.:
1405347
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC

Number of Cores

4

Sheath Colour

Black

Sheath Material

Polyurethane PUR

Length

3m

Connector 1 Gender

Male

Connector 1 Orientation

Right Angle

Connector 1 Number of Contacts

4

Connector 1

M12

Connector 2 Number of Contacts

4

Connector 2 Gender

Female

Connector 2 Orientation

Right Angle

Connector 2

M12

COO (Country of Origin):
PL

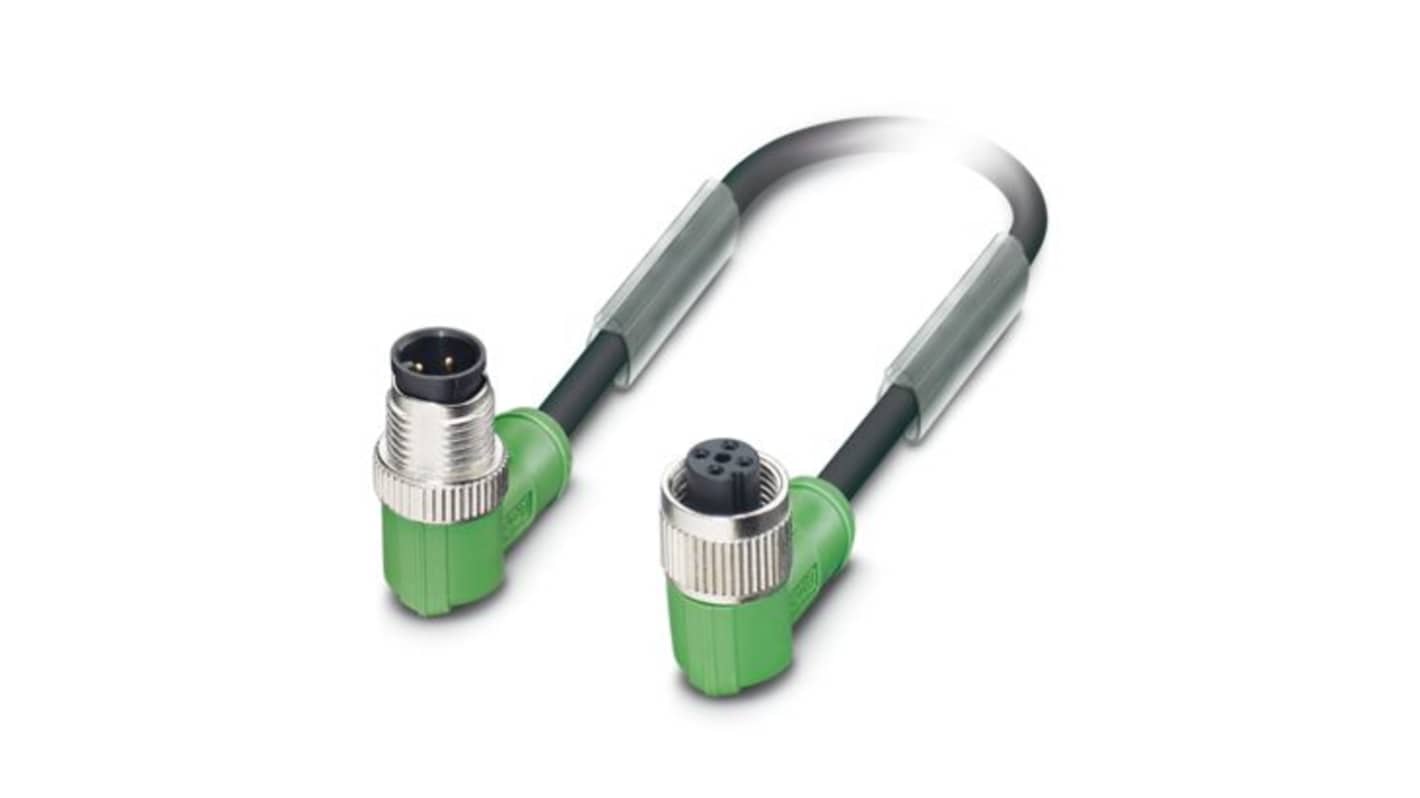

The Phoenix Contact sensor or actuator cable is a 4-position, halogen-free PUR cable in black-gray (RAL 7021). It features an angled M12 plug with A coding on one end and an angled M12 socket with A coding on the other. The cable has a length of 3 meters and includes a bridge between PIN3 and PIN4.

Flammability rating according to UL 94 HB
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuSn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Zinc die-cast, nickel-plated
Outer sheath, material PUR
