Phoenix Contact Straight Female 5 way M12 to Straight Free Ends Actuator/Sensor Cable, 10m
- RS Stock No.:
- 497-181
- Mfr. Part No.:
- 1405343
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£4,333.01
(exc. VAT)
£5,199.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £4,333.01 | £86.66 |
*price indicative
- RS Stock No.:
- 497-181
- Mfr. Part No.:
- 1405343
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 5 | |
| Cross Sectional Area | 5 x 0.5 mm² | |
| Sheath Colour | Black | |
| Length | 10m | |
| Sheath Material | Polyolefin | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 Gender | Female | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 2 Orientation | Straight | |
| Connector 2 | Free Ends | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 5 | ||
Cross Sectional Area 5 x 0.5 mm² | ||
Sheath Colour Black | ||
Length 10m | ||
Sheath Material Polyolefin | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 2 Orientation Straight | ||
Connector 2 Free Ends | ||
- COO (Country of Origin):
- PL

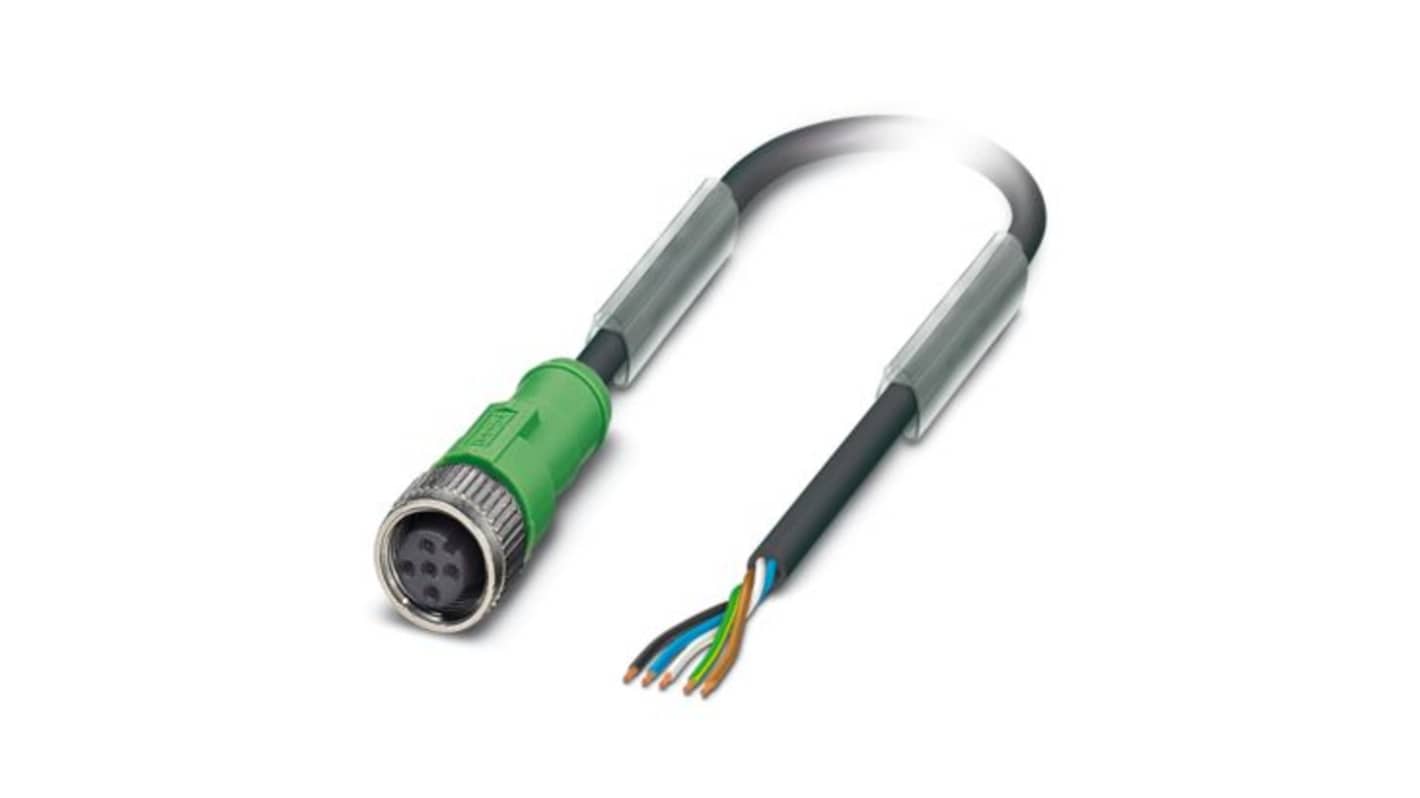

The Phoenix Contact sensor or actuator cable is a 5-position cable. It features a free cable end on one side and a straight M12 socket with A coding on the other. The cable has a length of 10 meters.
Outer sheath, material POC
External sheath, color black RAL 9005
Conductor material Tin-plated Cu litz wires
Material wire insulation POC
Single wire with color black 1, black 2, black 3, black 4, black 5
Overall twist 5 wires around filler to the core
External sheath, color black RAL 9005
Conductor material Tin-plated Cu litz wires
Material wire insulation POC
Single wire with color black 1, black 2, black 3, black 4, black 5
Overall twist 5 wires around filler to the core
