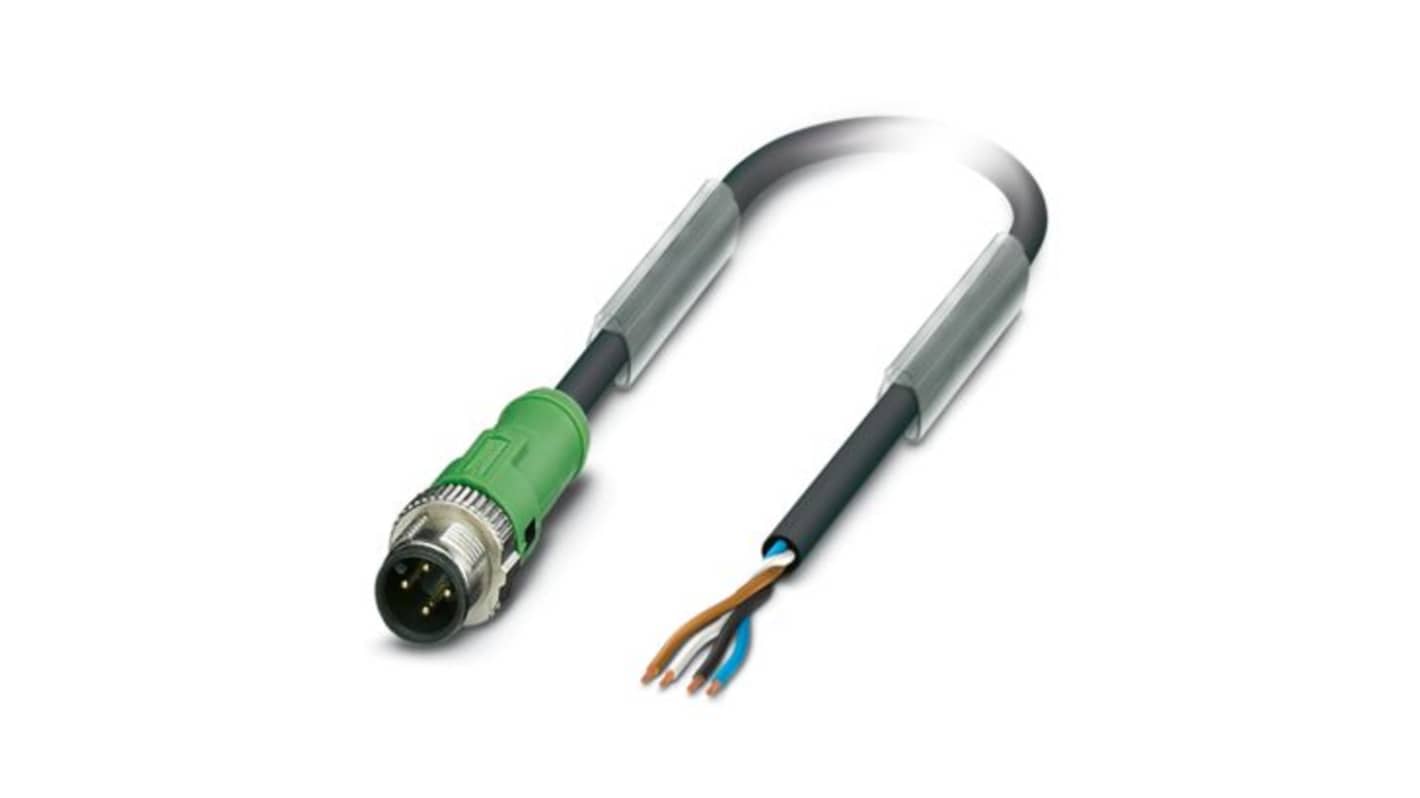

Phoenix Contact Straight Male 4 way M12 to Straight Free Ends Actuator/Sensor Cable, 4.3m
- RS Stock No.:
- 496-790
- Mfr. Part No.:
- 1413763
- Brand:
- Phoenix Contact
- RS Stock No.:
- 496-790
- Mfr. Part No.:
- 1413763
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 4 | |
| Cross Sectional Area | 22 AWG | |
| Sheath Colour | Yellow | |
| Sheath Material | Polyurethane PUR | |
| Length | 4.3m | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 1 Gender | Male | |
| Connector 1 Orientation | Straight | |
| Connector 2 | Free Ends | |
| Connector 2 Orientation | Straight | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 4 | ||
Cross Sectional Area 22 AWG | ||
Sheath Colour Yellow | ||
Sheath Material Polyurethane PUR | ||
Length 4.3m | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 2 Free Ends | ||
Connector 2 Orientation Straight | ||
- COO (Country of Origin):
- PL
The Phoenix Contact sensor or actuator cable is designed for reliable connectivity in varied applications. Featuring a robust construction, it simplifies installation while providing exceptional durability. The cable's striking yellow PUR halogen-free insulation not only enhances visibility but also ensures safety and environmental compliance. Engineered with a four-position M12 SPEEDCON connector, it guarantees a secure and efficient connection. With a flexible design suited for both fixed and movable installations, this cable performs excellently under challenging conditions. Its high-quality materials and thoughtful engineering make it the optimum choice for automation requirements.
Halogen-free materials promote a safer working environment during installation
High flexibility allows for dynamic movements without compromising performance
Designed to withstand extreme temperatures, ensuring reliability in challenging environments
M12 connector enhances securing mechanism with SPEEDCON locking for effortless assembly
Exceptional resistance to oils and chemicals contributes to the longevity of the product
Environmentally friendly configuration complies with EU RoHS standards
High flexibility allows for dynamic movements without compromising performance
Designed to withstand extreme temperatures, ensuring reliability in challenging environments
M12 connector enhances securing mechanism with SPEEDCON locking for effortless assembly
Exceptional resistance to oils and chemicals contributes to the longevity of the product
Environmentally friendly configuration complies with EU RoHS standards
