Phoenix Contact Straight Male 2 way 2-Pole to Straight Female 2 way 2-Pole Sensor Actuator Cable, 600mm

View all Sensor & Actuator Cables
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
496-548
Mfr. Part No.:
1410759
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC

Cross Sectional Area

2 x 0.75 mm²

Number of Cores

2

Sheath Material

Polyurethane PUR

Sheath Colour

Black/Grey

Length

600mm

Connector 1 Number of Contacts

2

Connector 1 Orientation

Straight

Connector 1 Gender

Male

Connector 1

2-Pole

Connector 2 Gender

Female

Connector 2

2-Pole

Connector 2 Orientation

Straight

Connector 2 Number of Contacts

2

COO (Country of Origin):
PL

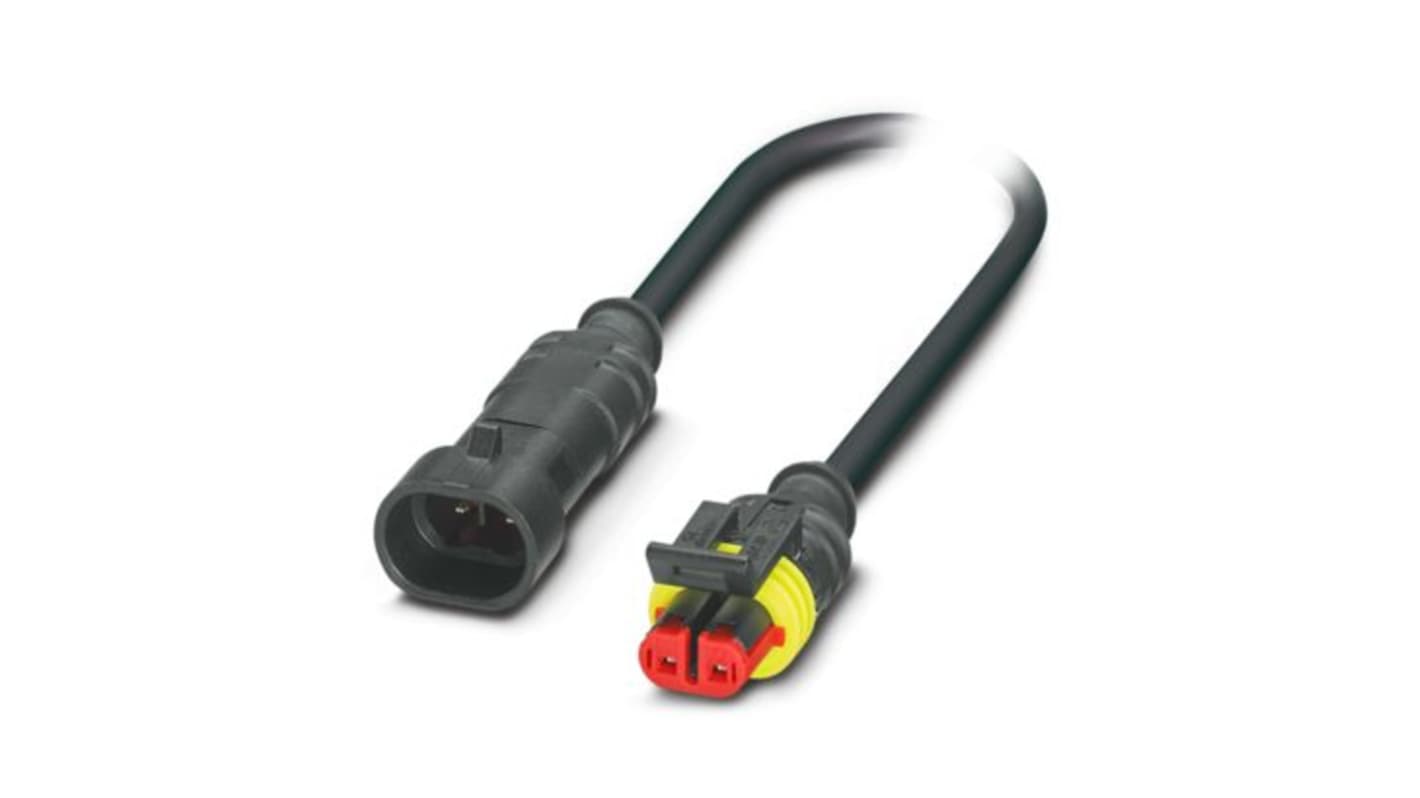

The Phoenix Contact sensor or actuator cable is a 2-position, halogen-free PUR cable in black-gray RAL 7021. It features a straight Super seal plug with clip locking and A coding on one end and a straight Super seal socket with clip locking on the other. The cable has a length of 0.6 meters.

Flammability rating according to UL 94 HB
Seal material Silicon
Material of grip body TPU
Contact material CuZn pin or PhCuSn socket
Contact surface material nickel-plated
Contact carrier material PA 6.6
Material for screw connection not avail
