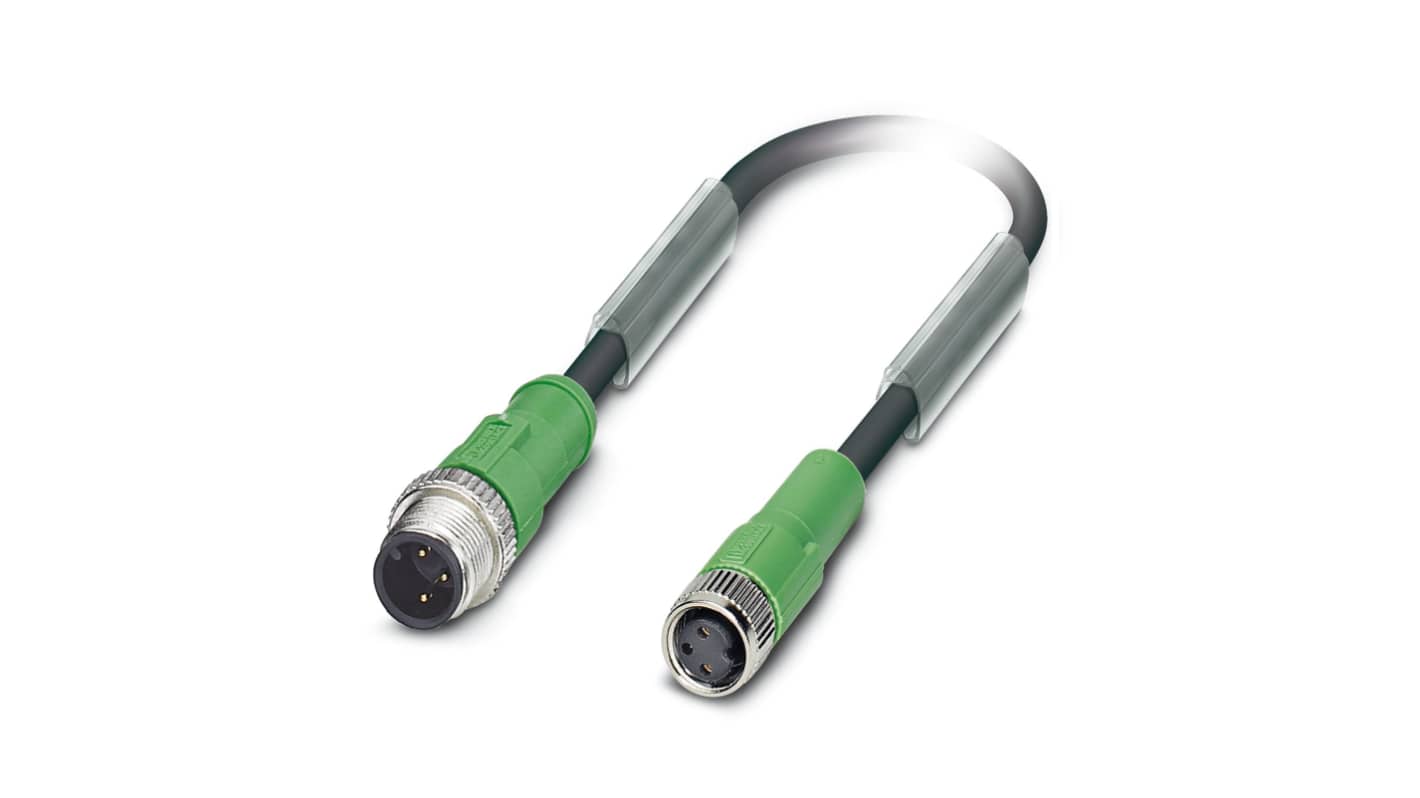

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M8 Actuator/Sensor Cable, 300mm
- RS Stock No.:
- 494-606
- Mfr. Part No.:
- 1415525
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 494-606
- Mfr. Part No.:
- 1415525
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 3 | |
Length | 300mm | |
Sheath Material | Polyvinyl Chloride PVC | |
Sheath Colour | Black | |
Connector 1 Number of Contacts | 3 | |
Connector 1 Orientation | Straight | |
Connector 1 Gender | Male | |
Connector 1 | M12 | |
Connector 2 | M8 | |
Connector 2 Number of Contacts | 3 | |
Connector 2 Orientation | Straight | |
Connector 2 Gender | Female | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 3 | ||
Length 300mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 Orientation Straight | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 2 M8 | ||
Connector 2 Number of Contacts 3 | ||
Connector 2 Orientation Straight | ||
Connector 2 Gender Female | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Sensor And Actuator Cable offers superior connectivity for industrial applications, featuring a robust design tailored for reliable performance in demanding environments. Its 3-position configuration ensures precise signal transmission, while the high-quality PVC insulation provides protection against various external influences.
The compact design allows for streamlined routing in tight spaces
Provides effective mechanical protection against external pressures
Features clear coding for straightforward connection assignments
Provides effective mechanical protection against external pressures
Features clear coding for straightforward connection assignments
