Phoenix Contact Straight Free Ends to Right Angle Female 4 way M12 Sensor Actuator Cable, 2m

View all Sensor & Actuator Cables

Subtotal (1 pack of 50 units)*

£907.50

(exc. VAT)

£1,089.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£907.50£18.15

*price indicative

RS Stock No.:
493-440
Mfr. Part No.:
1406192
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

SAC

Number of Cores

4

Sheath Material

Polyvinyl Chloride PVC

Sheath Colour

Yellow

Length

2m

Connector 1

Free Ends

Connector 1 Orientation

Straight

Connector 2 Gender

Female

Connector 2 Number of Contacts

4

Connector 2

M12

Connector 2 Orientation

Right Angle

COO (Country of Origin):
US

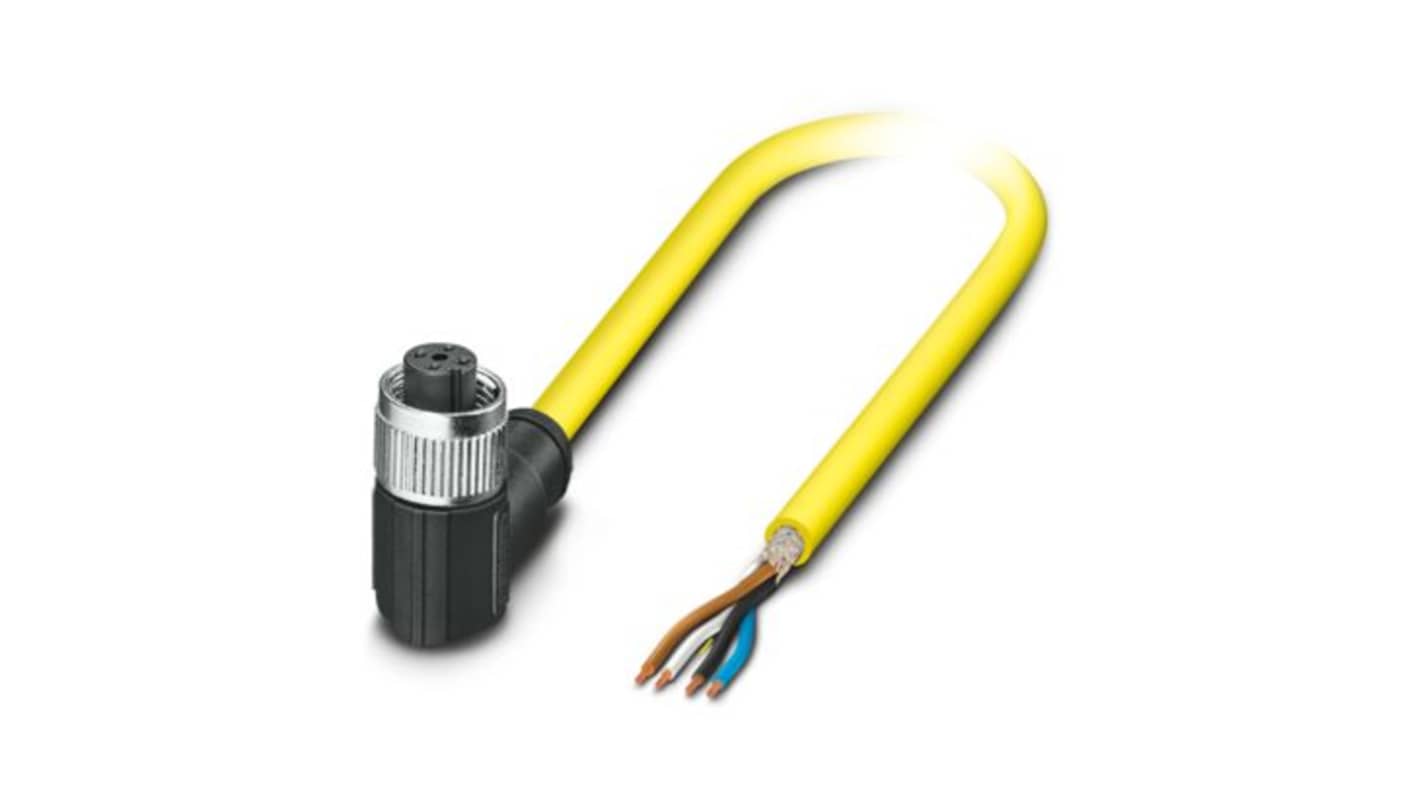

The Phoenix Contact sensor or actuator cable is a 4-position PVC cable in yellow. It is shielded and features a free cable end on one side and an angled M12 socket with A coding on the other. The cable has a length of 2 meters.

Flammability rating according to UL 94 HB
Seal material NBR
Material of grip body TPU, hardly inflammable, self-extinguishing
Contact material CuSn
Contact surface material Ni or Au
Contact carrier material TPU GF
Material for screw connection Zinc die-cast, nickel-plated
Outer sheath, material PVC
