Schneider Electric Handle Selector Switch - (2 NO) 22 mm Cutout Diameter 3 Positions
- RS Stock No.:
- 276-2573
- Mfr. Part No.:
- XB5AJ33C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£25.44
(exc. VAT)
£30.53
(inc. VAT)
Add 2 units to get free delivery
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £25.44 |
*price indicative
- RS Stock No.:
- 276-2573
- Mfr. Part No.:
- XB5AJ33C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Positions | 3 | |
| Product Type | Selector Switch | |
| Actuator Type | Handle | |
| Contact Configuration | 2 NO | |
| IP Rating | IP67 | |
| Angle of Throw | 45 ° | |
| Series | Harmony XB5 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Illuminated | No | |
| Standards/Approvals | JIS C8201-1, IK04, NEMA 13, CSA, UL, IP67, REACH, IEC 60947-5-4, DNV, GL, UL 508, BV, NEMA 4X, RoHS, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, LROS, JIS C8201-5-1 | |
| Switch Operation | Stay Put | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Positions 3 | ||
Product Type Selector Switch | ||
Actuator Type Handle | ||
Contact Configuration 2 NO | ||
IP Rating IP67 | ||
Angle of Throw 45 ° | ||
Series Harmony XB5 | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Illuminated No | ||
Standards/Approvals JIS C8201-1, IK04, NEMA 13, CSA, UL, IP67, REACH, IEC 60947-5-4, DNV, GL, UL 508, BV, NEMA 4X, RoHS, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, LROS, JIS C8201-5-1 | ||
Switch Operation Stay Put | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

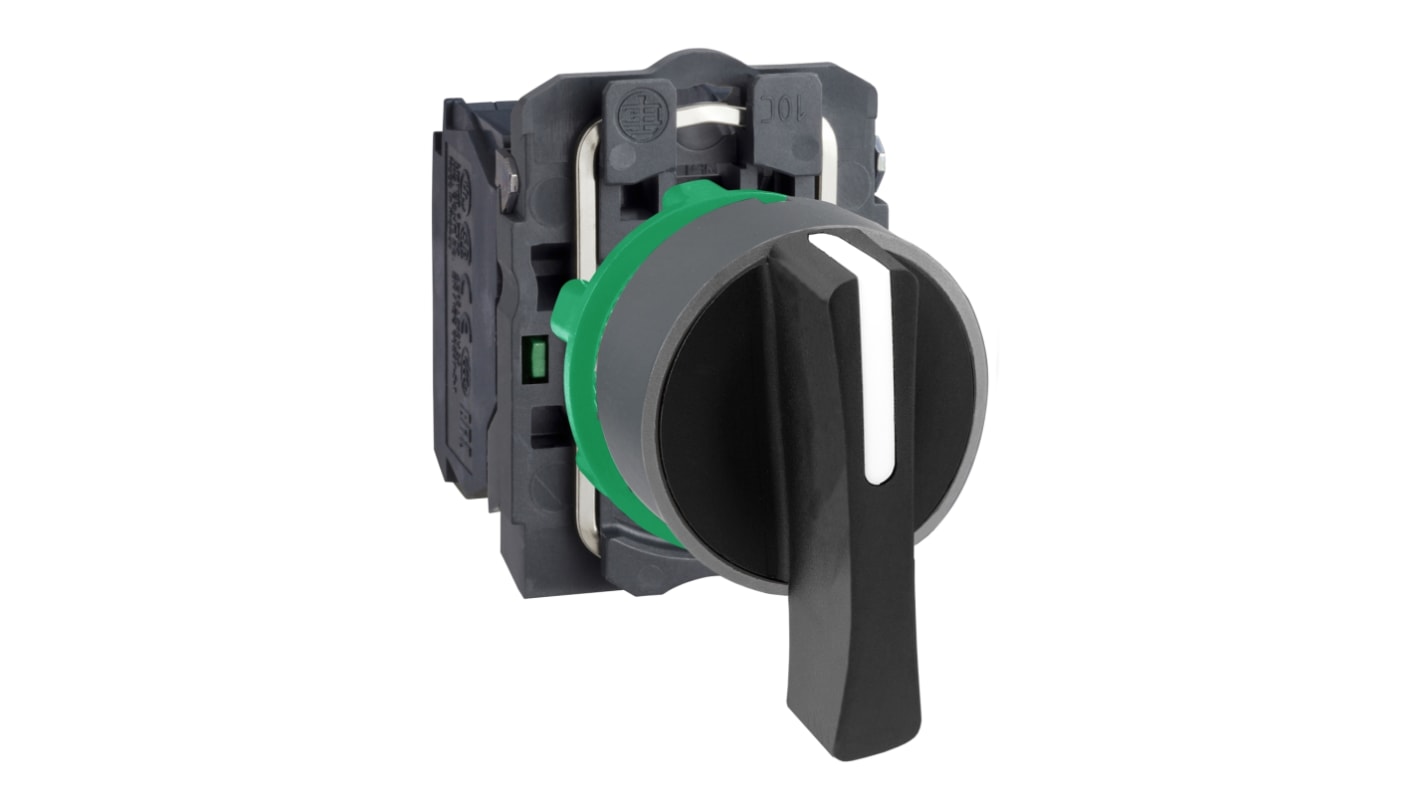

The Schneider Electric XB5, long handle modular black selector switch has 3 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines.
Impact resistant
Dust resistant
Water resistant
Corrosion resistant
Vibration resistant
