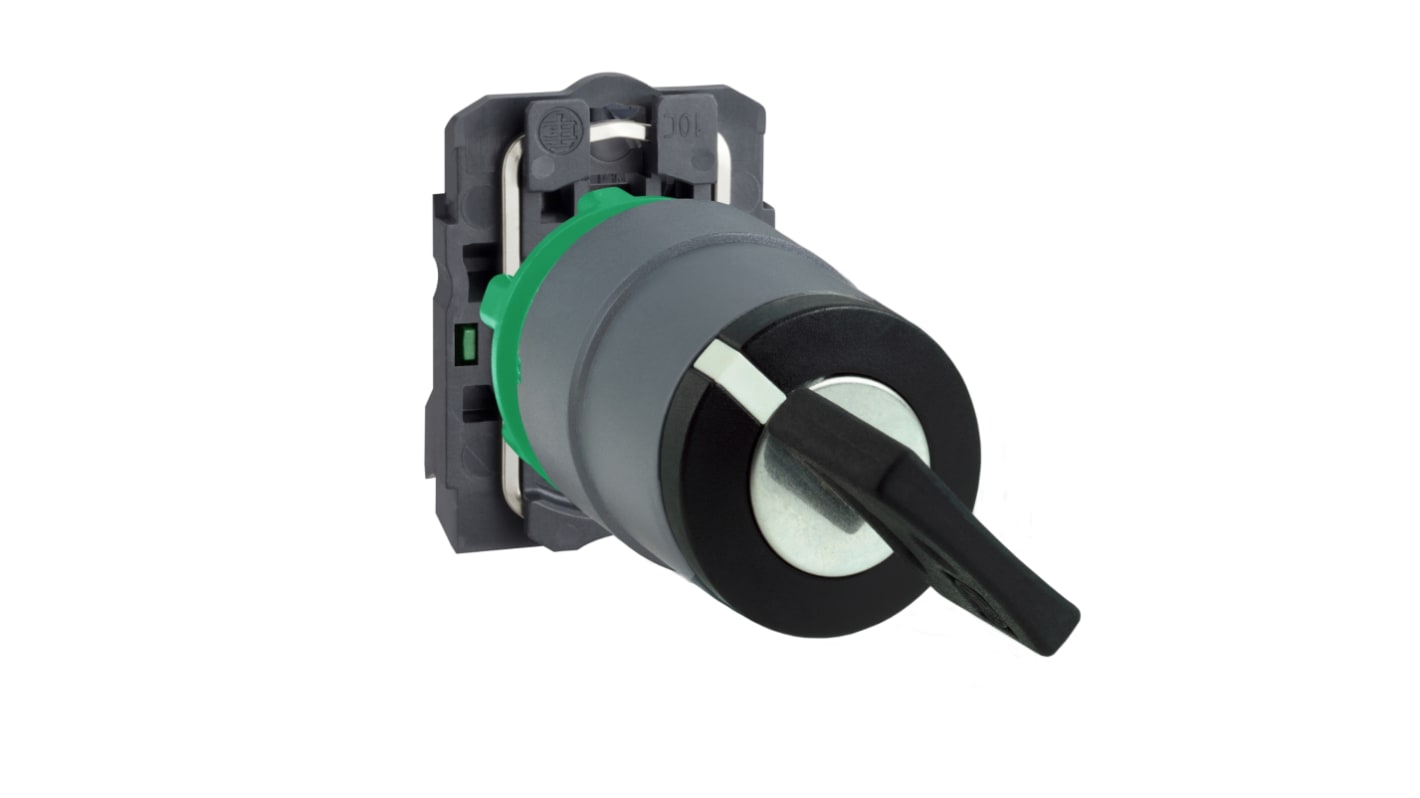

Schneider Electric Selector Switch - (1 NO) 22 mm Cutout Diameter 2 Positions
- RS Stock No.:
- 276-2567
- Mfr. Part No.:
- XB5AG21C0
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£43.05
(exc. VAT)
£51.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 4 unit(s) shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.05 |
*price indicative
- RS Stock No.:
- 276-2567
- Mfr. Part No.:
- XB5AG21C0
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Positions | 2 | |
| Product Type | Selector Switch | |
| Contact Configuration | 1 NO | |
| Housing Material | Silver Alloy, Plastic | |
| IP Rating | IP67, IP66 | |
| Angle of Throw | 90 ° | |
| Series | Harmony | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Depth | 96mm | |
| Height | 42mm | |
| Width | 30 mm | |
| Standards/Approvals | CSA, IEC 60947-5-1, BV, IEC 60947-5-4, LROS (Lloyds register of shipping), GL, JIS C8201-5-1, UL, DNV, IEC 60947-1, REACh Regulation, UL 508, CSA C22.2 No 14, JIS C8201-1, EU RoHS Directive | |
| Switch Operation | Stay Put | |
| Hazardous Area Certification | No | |
| Key Type | 455 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Positions 2 | ||
Product Type Selector Switch | ||
Contact Configuration 1 NO | ||
Housing Material Silver Alloy, Plastic | ||
IP Rating IP67, IP66 | ||
Angle of Throw 90 ° | ||
Series Harmony | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Depth 96mm | ||
Height 42mm | ||
Width 30 mm | ||
Standards/Approvals CSA, IEC 60947-5-1, BV, IEC 60947-5-4, LROS (Lloyds register of shipping), GL, JIS C8201-5-1, UL, DNV, IEC 60947-1, REACh Regulation, UL 508, CSA C22.2 No 14, JIS C8201-1, EU RoHS Directive | ||
Switch Operation Stay Put | ||
Hazardous Area Certification No | ||
Key Type 455 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Schneider Electric Selector Switch is available with a key 455, operating in 2 positions. It features a stay put key release mechanism and is equipped with a distinctive grey bezel. This selector switch offers secure and reliable key based control, making it suitable for applications where key operated position control is essential.
Mercury free
RoHS compliant
IP66 and IP67 degree of protection
1000000 cycles mechanical durability
