RS PRO Knob Selector Switch - (1NC/1NO) 30mm Cutout Diameter, Illuminated 2 Positions

View all Selector Switches

Subtotal (1 unit)*

£40.91

(exc. VAT)

£49.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£40.91

*price indicative

RS Stock No.:
265-7652
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Selector Switch Type

Selector Switch Complete Unit

Number of Positions

2

Actuator Type

Knob

Contact Configuration

1NC/1NO

IP Rating

IP65

Angle of Throw

90°

Cutout Diameter

30mm

Terminal Type

Screw

Illuminated

Yes

Maximum AC Voltage

690V

Colour

Green

Maximum DC Voltage

690V

COO (Country of Origin):
IT

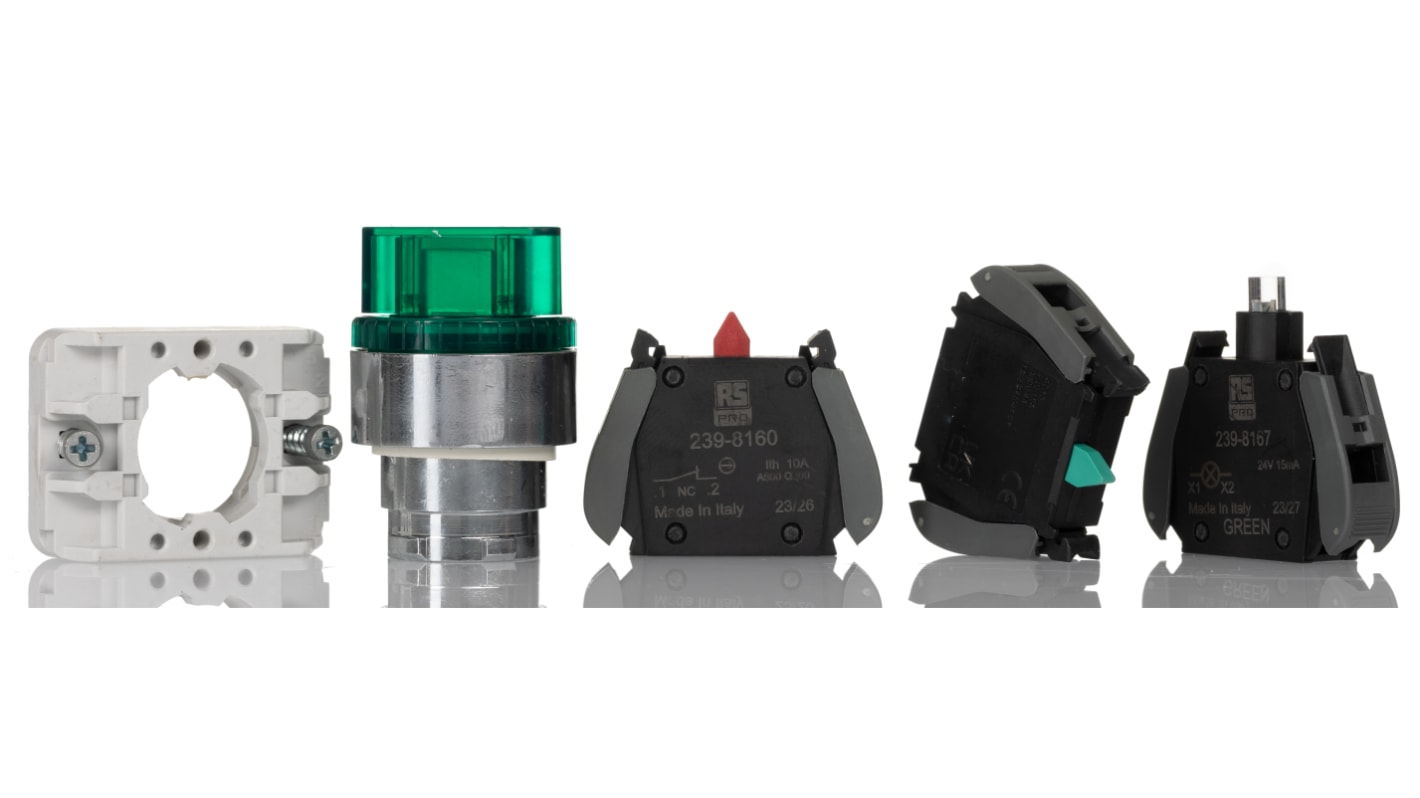

RS PRO 1NC + 1NO Green Illuminated Selector Switch, 690V


A hardwearing and reliable 2 position green illuminated selector switch with a 1NC + 1NO configuration and Class II double insulation designed for easy panel installation.
Constructed with a robust Chrome plated Zamak casing for impact resistance and an IP rating of IP65 at the front providing protection from dust and water. The selector switch has an outer diameter of 30mm and features screw down termination for a secure fit free from movement.
The LED switch is complete with short circuit protection, a wide operating temperature of -25 to 70°C and a long mechanical life of 300,000 operations. A tough and hardwearing 2 position selector switch perfect for industrial environments.

Features and Benefits


1NC + 1NO configuration
24V AC/DC Green LED illumination
Rated insulated volatage of 690V
30mm outer diameter
IP65 rated (IP20 back)
Screw terminals with cable clamp
Class II double insulation
Operating temperature of -25 to +70°C
300,000 operations
Short circuit protection
Pollution degree 3
Chrome plated Zamak case

Approvals and Standards: CE/ UKCA, EN60947-5-1, UL508
