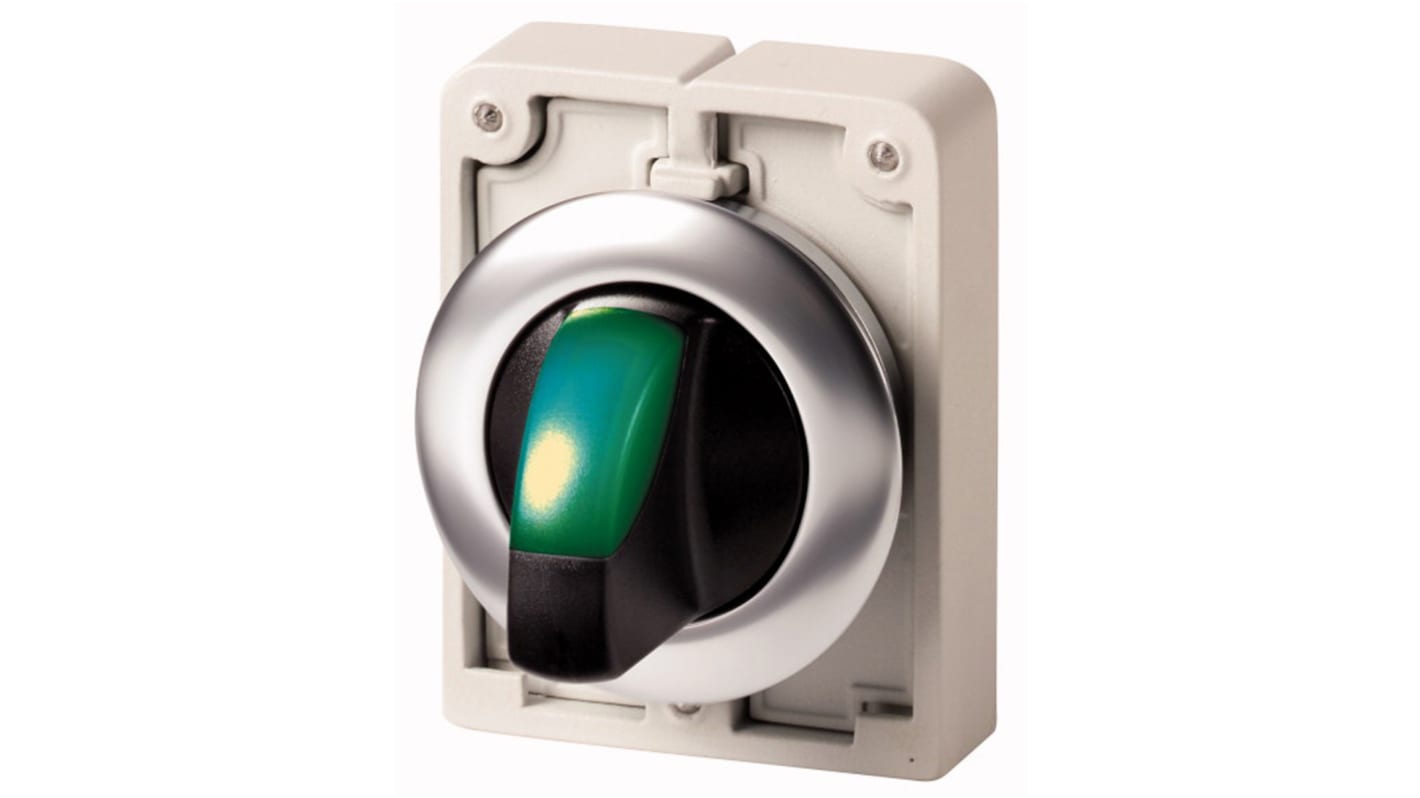

Eaton RMQ Titan Series 2 Position Selector Switch Head, 30mm Cutout, Green Handle
- RS Stock No.:
- 136-5549
- Mfr. Part No.:
- 187024 M30C-FWRLK-G
- Brand:
- Eaton
1 In stock - FREE next working day delivery available
Added
Price Each
£28.93
(exc. VAT)
£34.72
(inc. VAT)
| Units | Per unit |
| 1 + | £28.93 |
- RS Stock No.:
- 136-5549
- Mfr. Part No.:
- 187024 M30C-FWRLK-G
- Brand:
- Eaton
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Eaton M30 Flat Front Illuminated Selector Switches
Eaton M30 Flat Front illuminated selector switches combine a robust thumb switch with ease of use, ensuring that machines can benefit from an elegant industrial design. The ergonomic design is shaped with fingertips in mind, while also providing a heavy-duty device that can withstand exposure to dirt and water.
Features and Benefits
Maintained or Momentary options available
Metal bezel
IP66 rated
SmartWire-DT compatible
30 mm mounting diameter
The RMQ-Titan modular system allows the push buttons to be used with any accessory from the RMQ-Titan range.
The Flat Rear contact blocks offer a reduced mounting depth. (See example stock number 124-5192)
SmartWire DT contact blocks connect the push buttons to an innovative communication system for industrial switchgear. (See example stock number 760-4646)
Eaton RMQ Titan
Note
Eaton formerly known as Moeller
Eaton RMQ Titan 30mm Flat Front Range
Eaton RMQ-Titan Flat Front range offer an attractive, sleek design and also feature a sophisticated mounting system known as RMQ-AFX. These elements are designed for 30 mm mounting holes, and feature an anti-rotation tab with easy adjustment to panel sheet thickness. The RMQ Flat Front range is fully compatible with all existing modular RMQ-Titan M22 accessories.
All RMQ Flat Front products are available with high degrees of protection of up to IP69K with international approvals.
Features and Benefits
Flush construction that offers sleek designs
Smooth transition between control section and machine
No projecting push button or indicator parts
Easy installation
Compatible with full RMQ accessories range
Simple cleaning
Specifications
Attribute | Value |
|---|---|
| Actuator Colour | Green |
| Illuminated | Yes |
| Number of Positions | 2 |
| Cutout Diameter | 30mm |
| Switch Actuation | Latching |
| Series | RMQ Titan |
| IP Rating | IP66 |
| Angle of Throw | 60° |
