- RS Stock No.:
- 879-2823
- Mfr. Part No.:
- 40413201
- Brand:
- Freudenberg Sealing Technologies Simrit
Available to back order for despatch 20/05/2024
Added
Price Each
£8.75
(exc. VAT)
£10.50
(inc. VAT)
Units | Per unit |
1 - 4 | £8.75 |
5 - 9 | £8.40 |
10 - 24 | £8.23 |
25 + | £8.05 |
- RS Stock No.:
- 879-2823
- Mfr. Part No.:
- 40413201
- Brand:
- Freudenberg Sealing Technologies Simrit
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CZ
Product Details

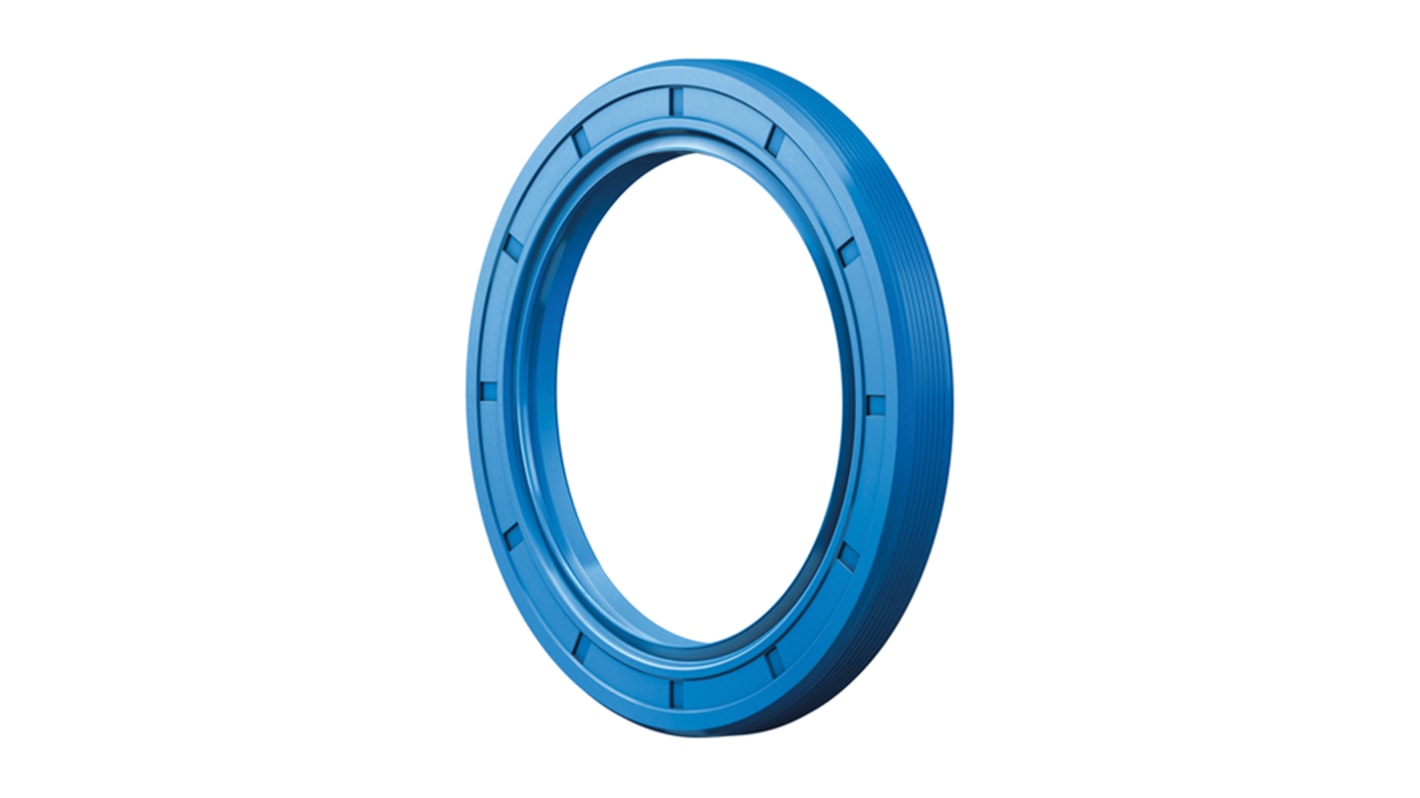

Freudenberg Shaft Seals
Simmering Rotating shaft seals are a high performance oil seal delivering exceptional wear resistance and performance to a variety of functions including aerospace, railway, power transmission, automotive, machine tools, fluid handling, production line, energy and power generation.
With an elastomer outer casing manufactured from NBR 902 nitrile rubber and spring loaded sealing lip they can be used with mineral & synthetic oils and greases. Simmering radial seals offer significant improvements in seal wear and heat and friction generation, reducing power loss and lowering running costs as well as improving working life so improving costly downtime due to seal repairs.
Suitable replacement for R21 and in some instances R4 seals (please review manufacturers data sheet) Suitable for a comprehensive range of applications including axles, power tools, industrial gearboxes, motors and pumps.
With an elastomer outer casing manufactured from NBR 902 nitrile rubber and spring loaded sealing lip they can be used with mineral & synthetic oils and greases. Simmering radial seals offer significant improvements in seal wear and heat and friction generation, reducing power loss and lowering running costs as well as improving working life so improving costly downtime due to seal repairs.
Suitable replacement for R21 and in some instances R4 seals (please review manufacturers data sheet) Suitable for a comprehensive range of applications including axles, power tools, industrial gearboxes, motors and pumps.
Shaft tolerance ISO h11
Housing bore tolerance H8
90% Less friction torque
80% Less specific heat generation
50% Less wear
Pressure stable up to 0.5 bar
Suitable for bidirectional rotating shafts up to a velocity of 40 m/s
Housing bore tolerance H8
90% Less friction torque
80% Less specific heat generation
50% Less wear
Pressure stable up to 0.5 bar
Suitable for bidirectional rotating shafts up to a velocity of 40 m/s
Specifications
Attribute | Value |
---|---|
Inside Diameter | 28mm |
Outside Diameter | 47mm |
Seal Type | Rotary Shaft Seal |
Thickness | 7mm |
Seal Material | 72 NBR 902 |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +100°C |
- RS Stock No.:
- 879-2823
- Mfr. Part No.:
- 40413201
- Brand:
- Freudenberg Sealing Technologies Simrit
