SKF Nitrile Rubber Seal, 55mm ID, 90mm OD, 10mm
- RS Stock No.:
- 267-3722
- Mfr. Part No.:
- 55X90X10 HMS5 RG
- Brand:
- SKF
Subtotal (1 pack of 10 units)*
£24.27
(exc. VAT)
£29.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 30 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £2.427 | £24.27 |
*price indicative
- RS Stock No.:
- 267-3722
- Mfr. Part No.:
- 55X90X10 HMS5 RG
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55mm | |
| Outside Diameter | 90mm | |
| Seal Type | Rotary Shaft Seal | |
| Thickness | 10mm | |
| Seal Material | Nitrile Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Outside Diameter 90mm | ||
Seal Type Rotary Shaft Seal | ||
Thickness 10mm | ||
Seal Material Nitrile Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- CN

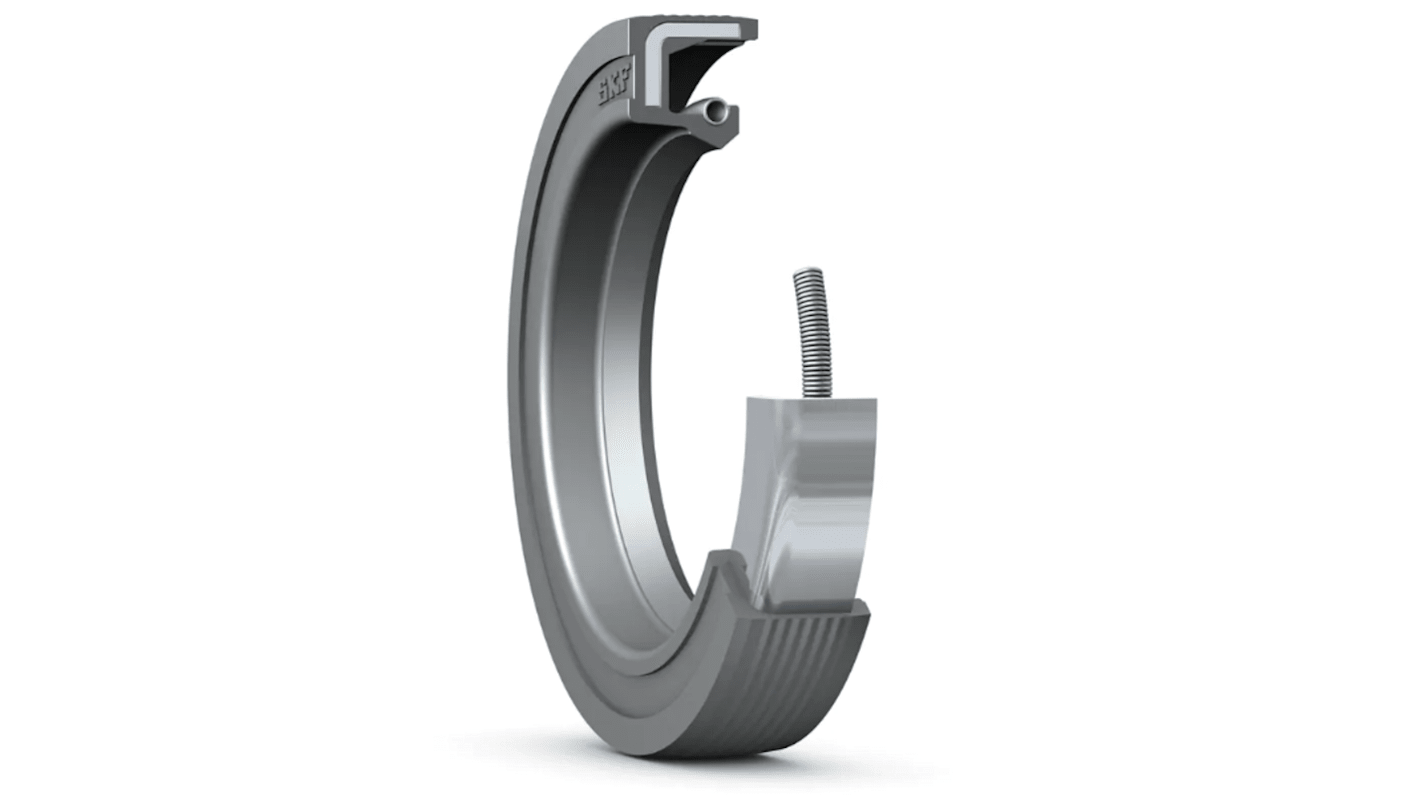

SKF Seal, 55mm Inside Diameter, 90mm Outside Diameter - 55X90X10 HMS5 RG
This rotary shaft seal is designed for use in demanding applications where reliable sealing between rotating and stationary components is essential. The seal features an inside diameter of 55mm, an outside diameter of 90mm, and a thickness of 10mm. Constructed with nitrile rubber, this SKF seal effectively forms a barrier against oil and grease, providing functionality across a mechanical seal temperature range of -40°C to +100°C.
Features & Benefits
• Designed with a rubber outside diameter for durability
• Single sealing lip with garter spring maintains optimal tension
• High pumping rate to enhance lubrication retention
• Accommodates misalignment for versatile installation
• Effective at high circumferential speeds of up to 8.22 m/s
• Resistant to oil and grease for long-lasting performance
• Single sealing lip with garter spring maintains optimal tension
• High pumping rate to enhance lubrication retention
• Accommodates misalignment for versatile installation
• Effective at high circumferential speeds of up to 8.22 m/s
• Resistant to oil and grease for long-lasting performance
Applications
• Ideal for mechanical assemblies requiring oil sealing
• Utilised in automotive to secure lubrication
• Effective in industrial machinery for preventing leakage
• Commonly employed in rotating shafts to enhance efficiency
• Utilised in automotive to secure lubrication
• Effective in industrial machinery for preventing leakage
• Commonly employed in rotating shafts to enhance efficiency
What temperature ranges can this seal operate within effectively?
The seal is designed to function reliably within a temperature range of -40°C to +100°C, making it suitable for various applications, including high-temperature environments.
How does the garter spring influence the seal's performance?
The garter spring maintains consistent radial load on the sealing lip, ensuring a tight fit and preventing leakage, which is crucial for maintaining operational efficiency in rotating components.
Can this seal accommodate shaft misalignment?
Yes, the design allows for some degree of misalignment, which enables straightforward installation and optimises performance even if the shaft is not perfectly aligned.
What materials are used in the construction of this seal?
The sealing lip is made from nitrile rubber, specifically chosen for its oil resistance and durability, ensuring long-lasting protection against leaks in various applications.
How does this seal compare to traditional seals in terms of performance?
It offers improved pumping rates and superior accommodation to misalignment, making it a more effective choice than many traditional seals, especially for dynamic environments where movement occurs.
