SKF Nitrile Rubber Seal, 55mm ID, 70mm OD, 8mm
- RS Stock No.:
- 267-3700
- Mfr. Part No.:
- 55X70X8 HMS5 RG
- Brand:
- SKF
Subtotal (1 pack of 10 units)*
£17.85
(exc. VAT)
£21.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 20 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.785 | £17.85 |
*price indicative
- RS Stock No.:
- 267-3700
- Mfr. Part No.:
- 55X70X8 HMS5 RG
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 55mm | |
| Outside Diameter | 70mm | |
| Seal Type | Rotary Shaft Seal | |
| Thickness | 8mm | |
| Seal Material | Nitrile Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Outside Diameter 70mm | ||
Seal Type Rotary Shaft Seal | ||
Thickness 8mm | ||
Seal Material Nitrile Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- CN

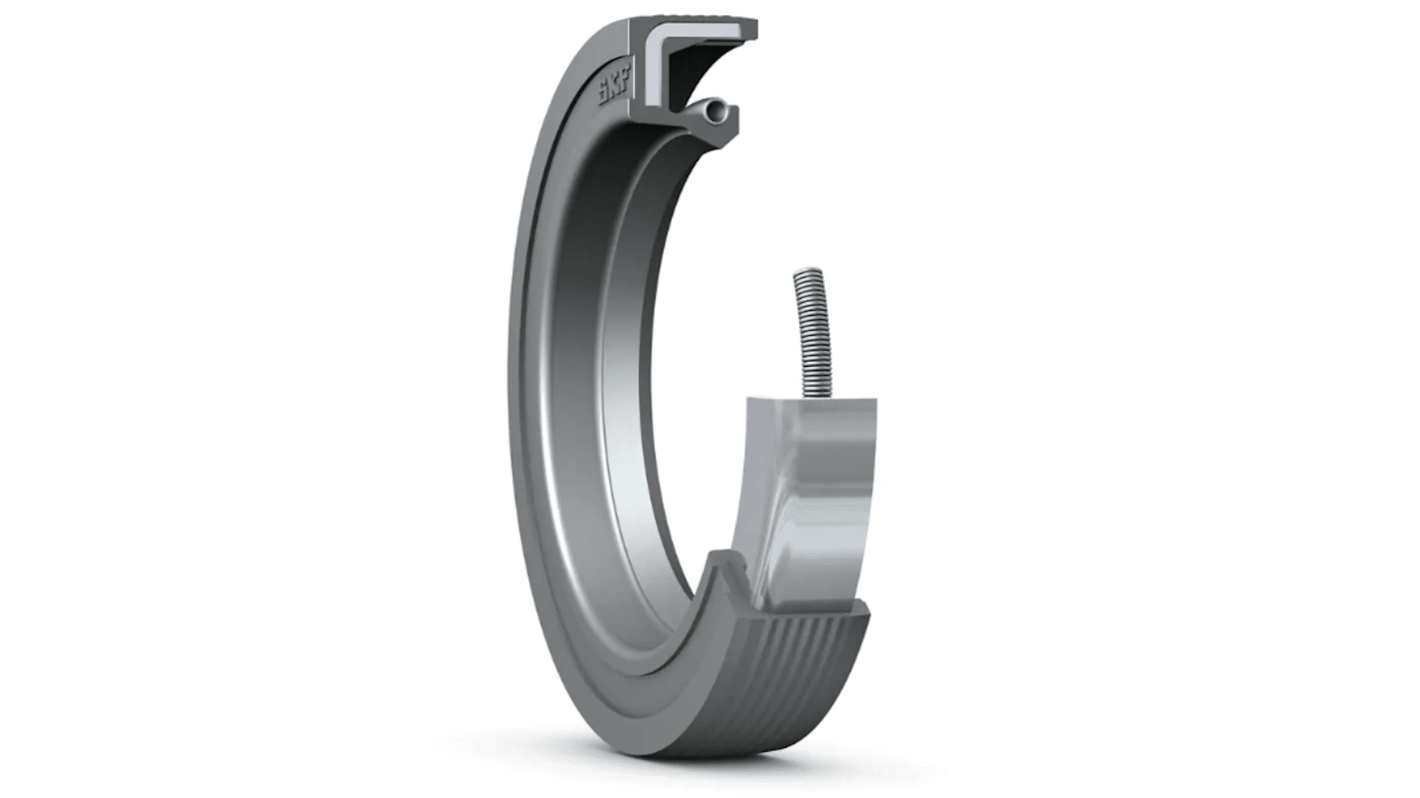

SKF Seal, 55mm Inside Diameter, 70mm Outside Diameter - 55X70X8 HMS5 RG
This seal is a rotary shaft seal designed specifically for applications involving oil or grease. Made from nitrile rubber, it features a robust construction with an inner diameter of 55mm and an outer diameter of 70mm. With a thickness of 8mm, this seal effectively serves critical roles between rotating and stationary components within various machinery.
Features & Benefits
• Single sealing lip with a garter spring enhances sealing efficiency
• Capable of operating in temperatures ranging from -40°C to +100°C
• Designed to accommodate misalignment for a more effective fit
• High pumping rate delivers superior performance in demanding conditions
• Suitable for both automotive and industrial usage
• Capable of operating in temperatures ranging from -40°C to +100°C
• Designed to accommodate misalignment for a more effective fit
• High pumping rate delivers superior performance in demanding conditions
• Suitable for both automotive and industrial usage
Applications
• Utilised in mechanical systems where rotary motion occurs
• Can be used in automotive gearboxes and axles
• Effective for sealing rotating shafts in industrial machinery
• Works well in both dry and lubricated environments
• Can be used in automotive gearboxes and axles
• Effective for sealing rotating shafts in industrial machinery
• Works well in both dry and lubricated environments
What is the maximum circumferential speed this seal can handle?
This seal can withstand a maximum circumferential speed of 8.22m/s, ensuring effective sealing even under dynamic conditions.
How does the design contribute to its functionality in machines?
The rubber outside diameter alongside the conventional sealing lip maintains necessary radial load, allowing it to operate effectively even with variable alignment in machinery.
Can it withstand high temperatures?
Yes, it can function efficiently at temperatures up to +100°C, with the ability to handle short periods at +120°C, making it suitable for high-temperature environments.
