90° Panel Mount PCB I/O Receptacles

These 3M 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles have a 0.050 inch pitch. The design of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles includes an interface latch for improved stability. For the main body/insulation material and mounting variations of these 102 Series Mini D Ribbon (MDR) Boardmount Shielded Receptacles see below.

Features and Benefits

• Mates with cable mounting solder plugs, series stock no. 515-7460
• Excellent EMI/ESD protection
• PCB mounting right angle sockets with retention by Screw or Ground Locks
• Panel retention by Metric or UNC threads

Available in this range:

102xx-52xx: Zinc Alloy body
102xx-55xx: PCT Insulator with Steel Nickel plated Shroud
102xx-520x: M2.6 Panel and Screw lock
102xx-521x: M2.5 Panel and Screw lock
102xx-55Bx: M2.5 Panel with Ground lock type 1 (3.8 mm)
102xx-55Fx: M2.6 Panel with Ground lock type 3 (2.3 mm)
102xx-55Gx: M2.5 Panel with Ground lock type 3 (2.3 mm)
102xx-55Hx: #4-40 Panel with Ground lock type 3 (2.3 mm)
102xx-xxx2: 3.9 mm long solder Tail
102xx-xxx3: 2.8 mm long solder Tail

What is a D-Sub Connector used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

The thickness of the wiping area Gold plating is determined by the Manufacturers Part Number, those ending in PL have 0.2 μm , those ending in PE have 0.5 μm and those ending in PC have 0.76 μm.

Standards

IDC

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

Select all	Attribute	Value
	Brand	3M
	Gender	Female
	Number of Contacts	68
	Body Orientation	Right Angle
	Mounting Type	Through Hole
	Contact Material	Copper Alloy
	Contact Plating	Gold over Nickel
	Housing Material	PBT
	Pitch	2.54mm
	Current Rating	500mA
	Voltage Rating	150 V ac, 200 V dc
	Termination Method	Solder
	Series	102
	Length	63.8mm
	Minimum Operating Temperature	-55°C
	Width	9.4mm
	Depth	16.7mm
	Maximum Operating Temperature	+85°C
	Priced to Clear	Yes

	Select all
	Brand 3M
	Gender Female
	Number of Contacts 68
	Body Orientation Right Angle
	Mounting Type Through Hole
	Contact Material Copper Alloy
	Contact Plating Gold over Nickel
	Housing Material PBT
	Pitch 2.54mm
	Current Rating 500mA
	Voltage Rating 150 V ac, 200 V dc
	Termination Method Solder
	Series 102
	Length 63.8mm
	Minimum Operating Temperature -55°C
	Width 9.4mm
	Depth 16.7mm
	Maximum Operating Temperature +85°C
	Priced to Clear Yes

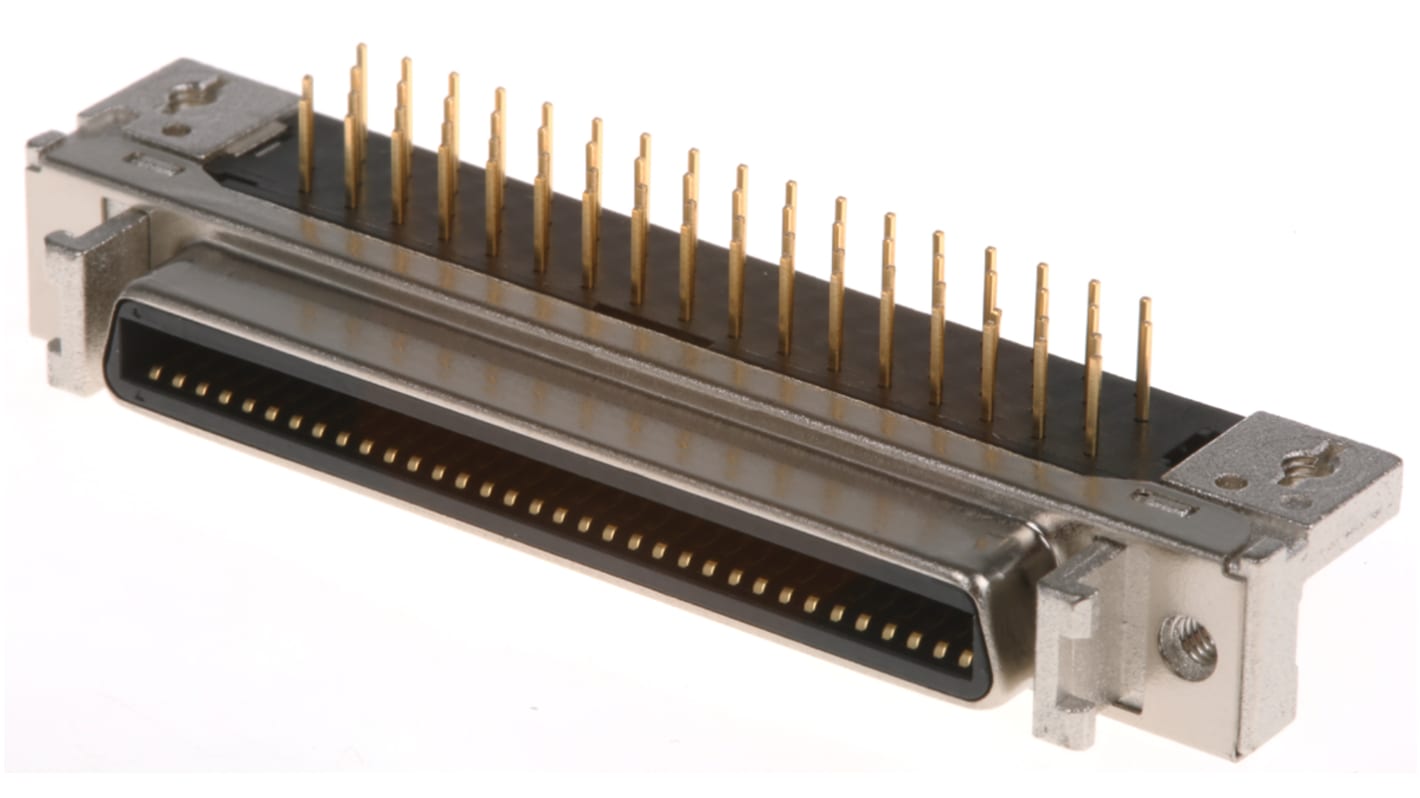

3M 102 Series, Female 68 Pin Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder
