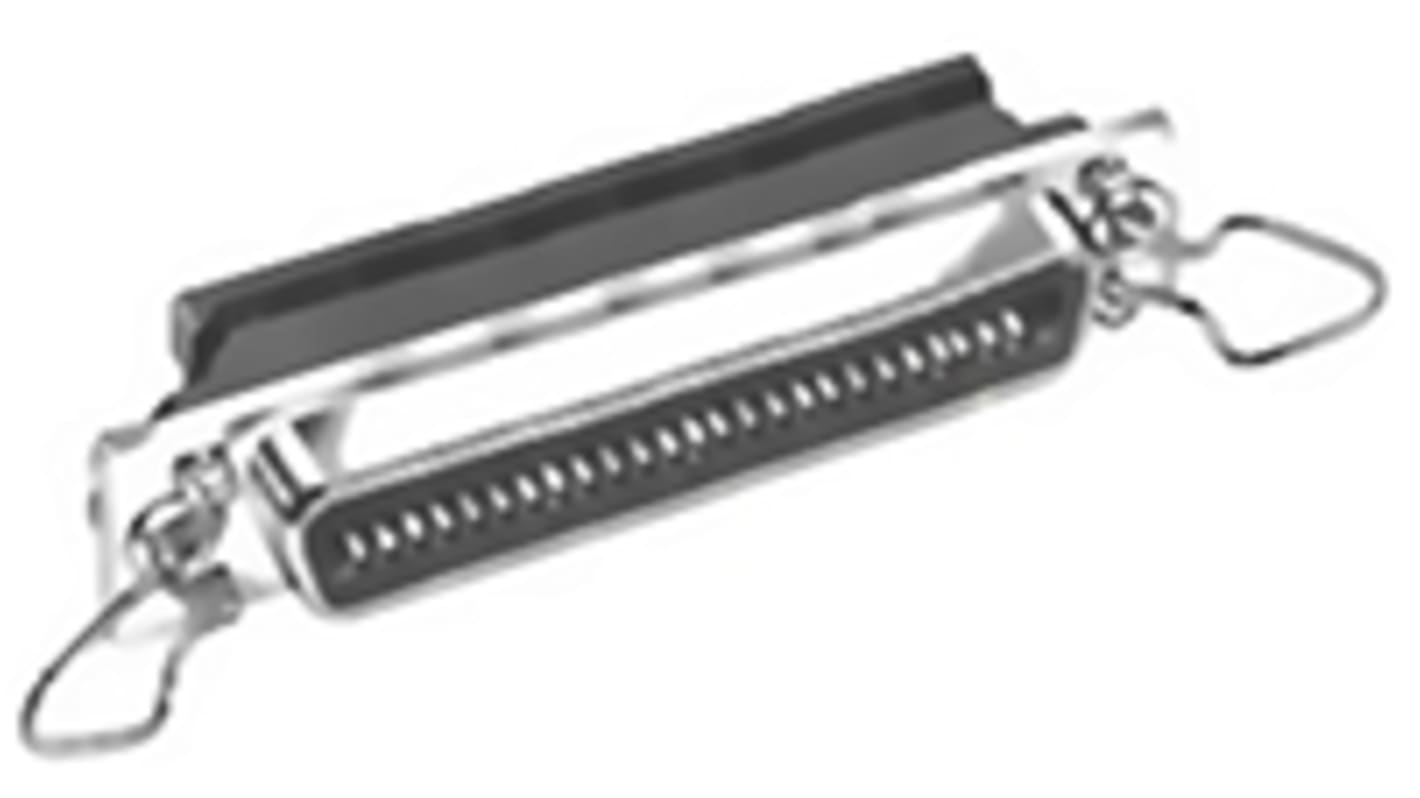

TE Connectivity, CHAMP Female 50 Pin Straight Cable Mount SCSI Connector 1.27mm Pitch, IDC, Screw
- RS Stock No.:
- 164-2327
- Mfr. Part No.:
- 554902-1
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 164-2327
- Mfr. Part No.:
- 554902-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Gender | Female | |
| Number of Contacts | 50 | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold over Palladium Nickel | |
| Housing Material | Polyphenylene Oxide | |
| Pitch | 1.27mm | |
| Latch Type | Screw | |
| Termination Method | IDC | |
| Series | CHAMP | |
| Length | 84.33mm | |
| Depth | 16mm | |
| Width | 21.09mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Gender Female | ||
Number of Contacts 50 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold over Palladium Nickel | ||
Housing Material Polyphenylene Oxide | ||
Pitch 1.27mm | ||
Latch Type Screw | ||
Termination Method IDC | ||
Series CHAMP | ||
Length 84.33mm | ||
Depth 16mm | ||
Width 21.09mm | ||
- COO (Country of Origin):
- MX
TE Connectivity CHAMP Latch Low Profile IDC Ribbon Cable Connectors
CHAMP Latch low profile IDC ribbon cable plug and receptacle connectors made from black thermoplastic with screwlocks (stock numbers 821-8833, 821-2466 ) or bail lock and screwlocks (stock number 821-8802 ) for panel mount retention. These CHAMP Latch IDC plug and receptacle ribbon connectors are pre-loaded with contacts on 2.16mm centers. The terminating ends of the contacts are on 2.54mm centres for a 1.27mm staggered termination.
TE Connectivity CHAMP-Latch IDC Ribbon Cable Connectors
