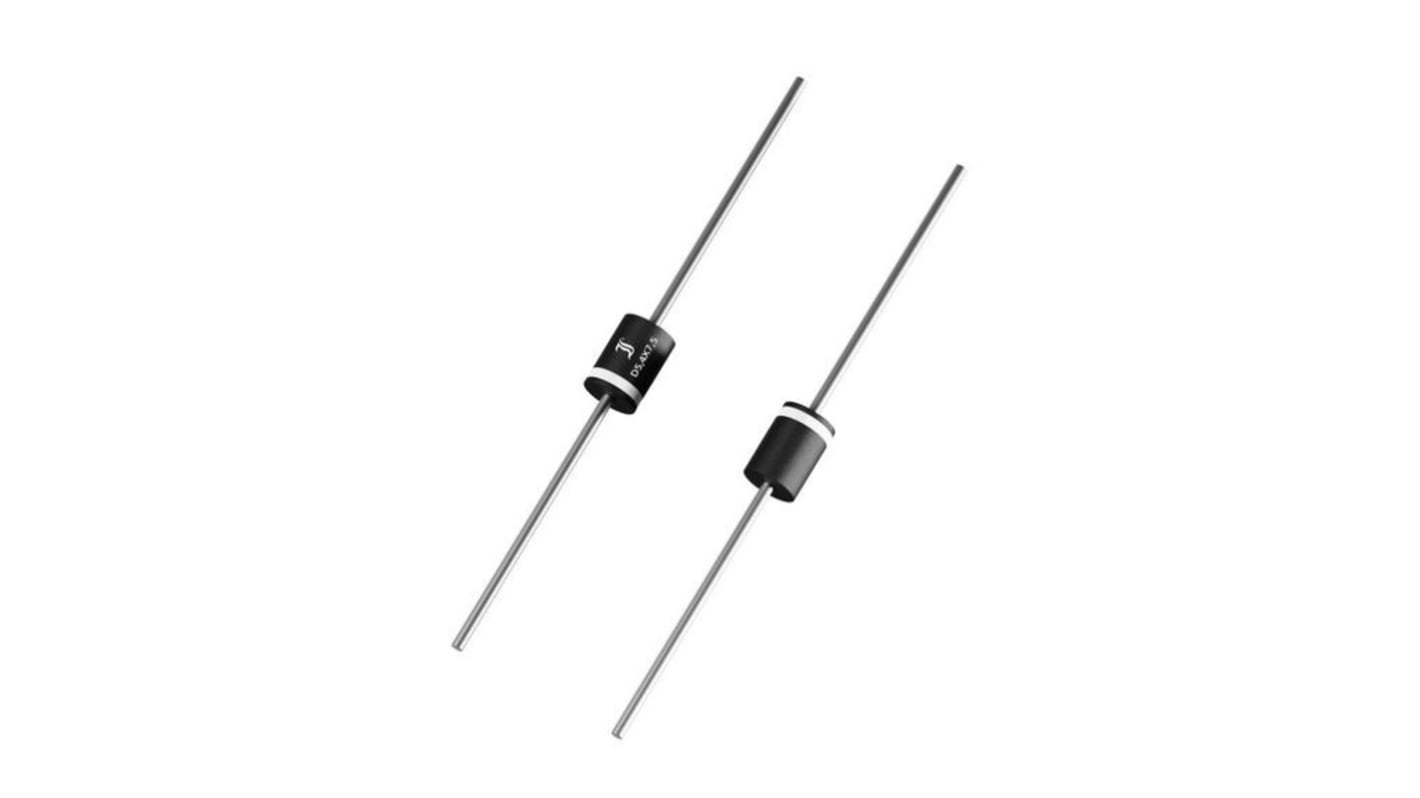

Diotec 100 V 8 A Rectifier & Schottky Diode Schottky 2-Pin Axial Leaded SB8100
- RS Stock No.:
- 288-3669
- Distrelec Article No.:
- 170-00-044
- Mfr. Part No.:
- SB8100
- Brand:
- Diotec
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 288-3669
- Distrelec Article No.:
- 170-00-044
- Mfr. Part No.:
- SB8100
- Brand:
- Diotec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Diotec | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Through Hole | |
| Package Type | Axial Leaded | |
| Maximum Continuous Forward Current If | 8A | |
| Peak Reverse Repetitive Voltage Vrrm | 100V | |
| Diode Configuration | Single | |
| Series | SB8100 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 8V | |
| Minimum Operating Temperature | -50°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A | |
| Peak Reverse Current Ir | 50μA | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS, REACH | |
| Diameter | 5.4 mm | |
| Length | 7.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Diotec | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Through Hole | ||
Package Type Axial Leaded | ||
Maximum Continuous Forward Current If 8A | ||
Peak Reverse Repetitive Voltage Vrrm 100V | ||
Diode Configuration Single | ||
Series SB8100 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 8V | ||
Minimum Operating Temperature -50°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 180A | ||
Peak Reverse Current Ir 50μA | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS, REACH | ||
Diameter 5.4 mm | ||
Length 7.5mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The SMD Schottky Barrier Rectifier Diode suitable for polarity protection, output rectification in DC/DC converter and free wheeling diode application . This diode has low forward voltage drop.
RoHS and REACH compliant
High average forward current
