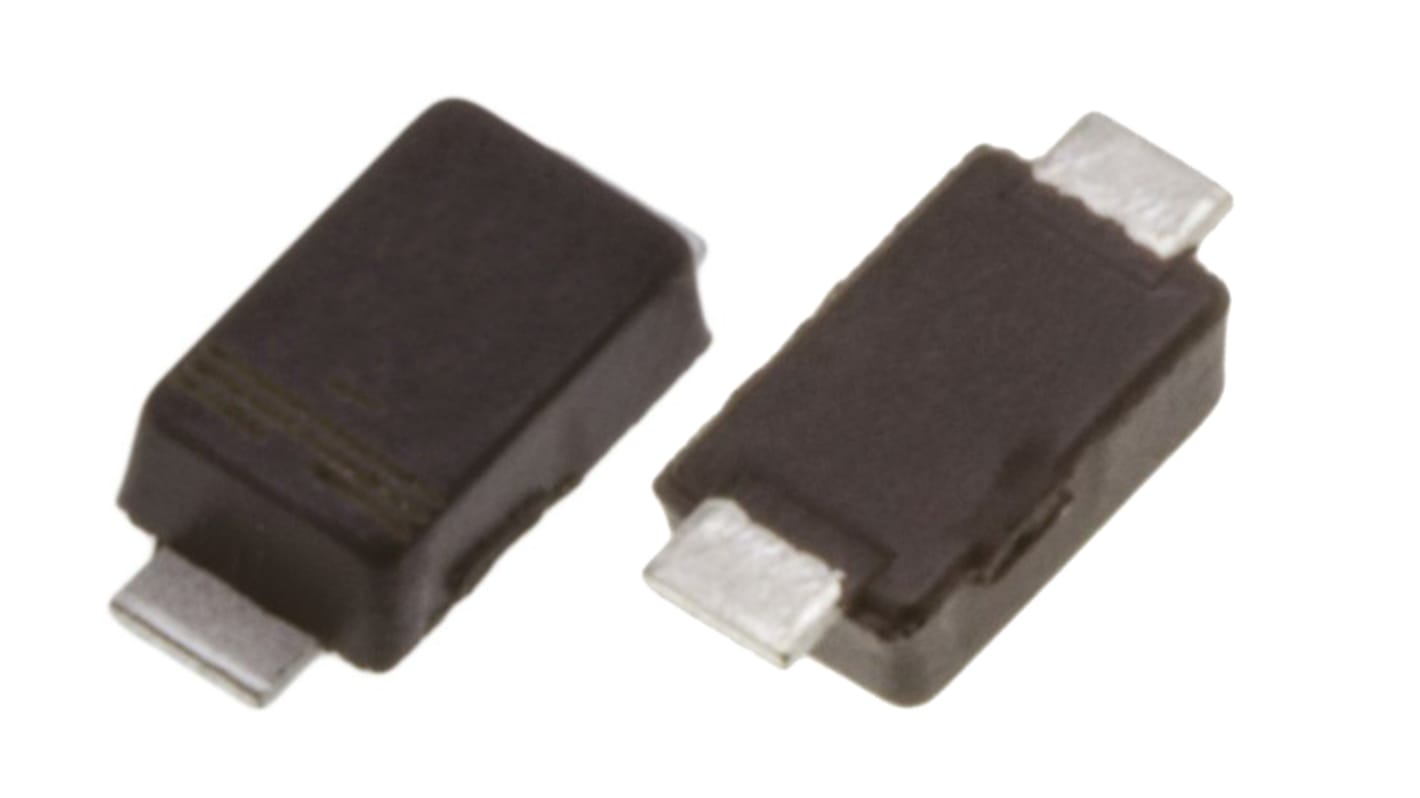

Vishay Switching Diode, Single, 1 A, 2-Pin 1000 V SMF RS1FLM-M3/H

View this category
Bulk discount available

Subtotal (1 pack of 100 units)*

£5.90

(exc. VAT)

£7.10

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 900£0.059£5.90
1000 - 2400£0.047£4.70
2500 - 4900£0.045£4.50
5000 - 9900£0.044£4.40
10000 +£0.041£4.10

*price indicative

Packaging Options:
RS Stock No.:
218-6664
Mfr. Part No.:
RS1FLM-M3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Diode Configuration

Single

Maximum Forward Current If

1A

Product Type

Switching Diode

Sub Type

General Purpose Diode

Mount Type

Surface

Package Type

SMF

Pin Count

2

Minimum Operating Temperature

-55°C

Maximum Peak Reverse Repetitive Voltage Vrrm

1000V

Peak Non-Repetitive Forward Surge Current Ifsm

35A

Maximum Forward Voltage Vf

1.2V

Peak Reverse Recovery Time trr

500ns

Maximum Operating Temperature

150°C

Standards/Approvals

No

Length

3.9mm

Width

1.9 mm

Height

1.08mm

Automotive Standard

No

The Vishay surface, mount fast switching rectifiers .For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Matte tin plated leads, solder able per J,STD,002 and JESD

Glass passivated pellet chip junction

Ideal for automated placement

Meets MSL level 1, per J,STD,020

LF maximum Peak of 260 °C

Wave and reflow solder able

Compatible to SOD,123W package case outline
