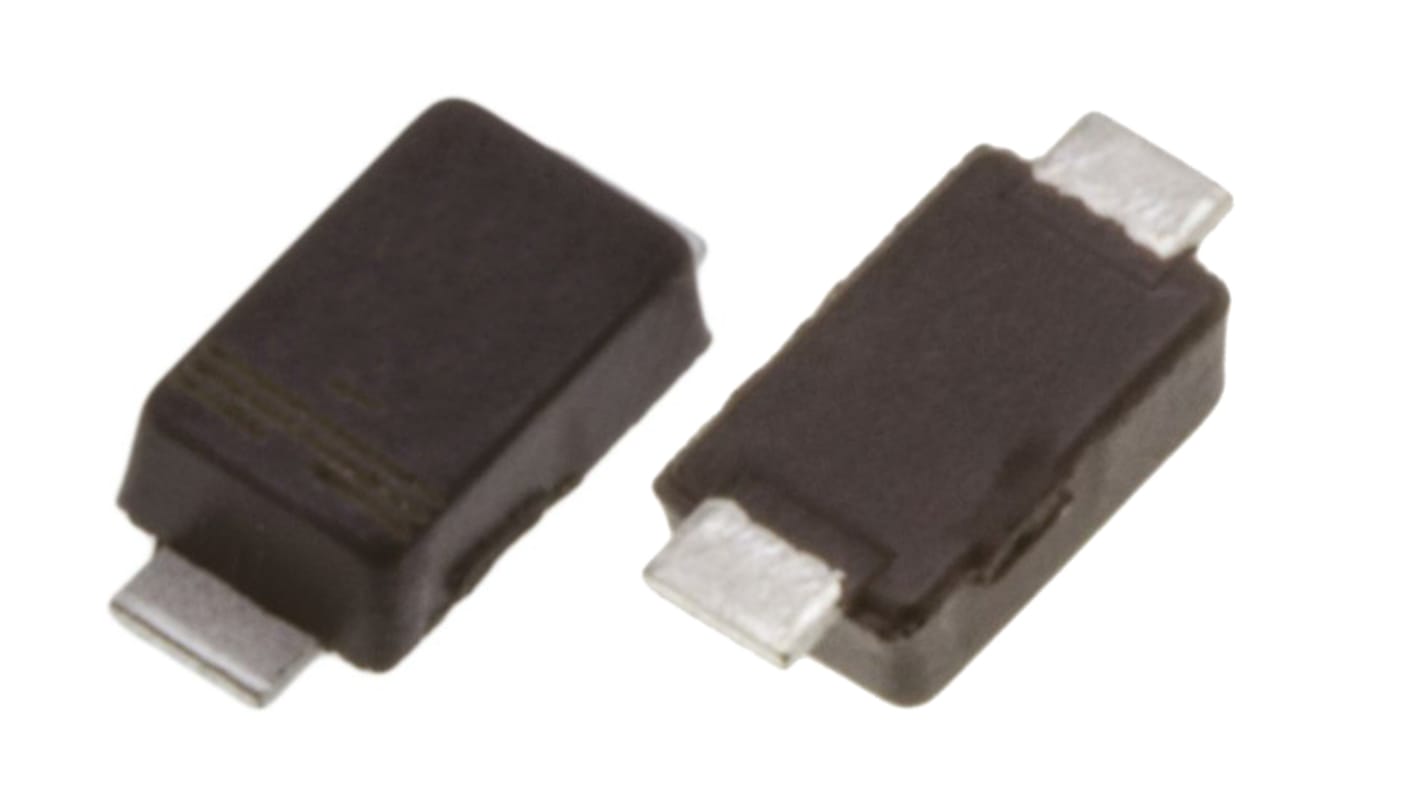

Vishay Switching Diode, Single, 1 A, 2-Pin 800 V SMF RS1FLK-M3/H

View this category
Bulk discount available

Subtotal (1 pack of 100 units)*

£7.70

(exc. VAT)

£9.20

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,800 unit(s), ready to ship
Units
Per unit
Per Pack*
100 - 900£0.077£7.70
1000 - 2400£0.066£6.60
2500 - 4900£0.062£6.20
5000 - 9900£0.059£5.90
10000 +£0.056£5.60

*price indicative

Packaging Options:
RS Stock No.:
218-6662
Mfr. Part No.:
RS1FLK-M3/H
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Switching Diode

Maximum Forward Current If

1A

Diode Configuration

Single

Sub Type

General Purpose Diode

Mount Type

Surface

Package Type

SMF

Pin Count

2

Maximum Forward Voltage Vf

1.2V

Maximum Peak Reverse Repetitive Voltage Vrrm

800V

Peak Non-Repetitive Forward Surge Current Ifsm

35A

Minimum Operating Temperature

-55°C

Peak Reverse Recovery Time trr

500ns

Maximum Operating Temperature

150°C

Length

3.9mm

Height

1.08mm

Standards/Approvals

No

Width

1.9 mm

Automotive Standard

No

The Vishay surface, mount fast switching rectifiers .For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Matte tin plated leads, solder able per J,STD,002 and JESD

Glass passivated pellet chip junction

Ideal for automated placement

Meets MSL level 1, per J,STD,020

LF maximum Peak of 260 °C

Wave and reflow solder able

Compatible to SOD,123W package case outline
