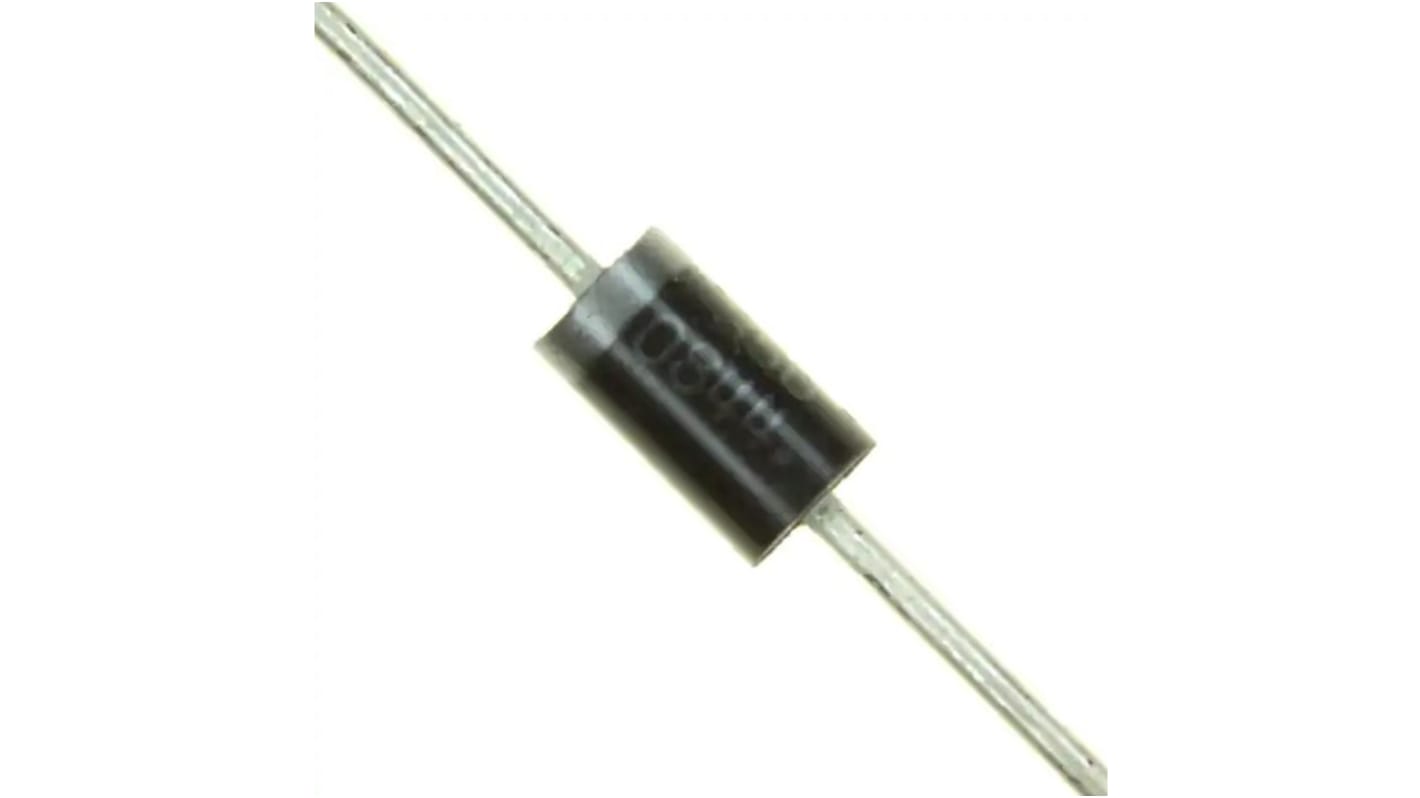

onsemi 40V 3A, Diode, 2-Pin CASE 267-05 MBR340RLG

View this category

Subtotal 25 units (supplied on a continuous strip)*

£1.90

(exc. VAT)

£2.275

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible
Units
Per unit
25 +£0.076

*price indicative

Packaging Options:
RS Stock No.:
186-7644P
Mfr. Part No.:
MBR340RLG
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Mounting Type

Through Hole

Package Type

CASE 267-05

Maximum Continuous Forward Current

3A

Peak Reverse Repetitive Voltage

40V

Diode Configuration

Single

Pin Count

2

Number of Elements per Chip

1

Diode Technology

Schottky

Diameter

5.3mm

Peak Non-Repetitive Forward Surge Current

80A

The Schottky Rectifier employs the Schottky Barrier principle in a large area metal-to-silicon power diode. The Schottky Rectifier¿s state-of-the-art geometry features chrome barrier metal, epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free wheeling diodes and polarity protection diodes.

Extremely Low VF
Low Power Loss/High Efficiency
Highly Stable Oxide Passivated Junction
Low Stored Charge, Majority Carrier Conduction
Mechanical Characteristics:
Case: Epoxy, Molded
Weight: 1.1 gram (approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260 °C Max. for 10 Seconds
Shipped in plastic bags, 500 per bag
Available Tape and Reeled, 1500 per reel, by adding a RL suffix to the part number
Polarity: Cathode indicated by Polarity Band
Marking: B340
Pb-Free Packages are Available
