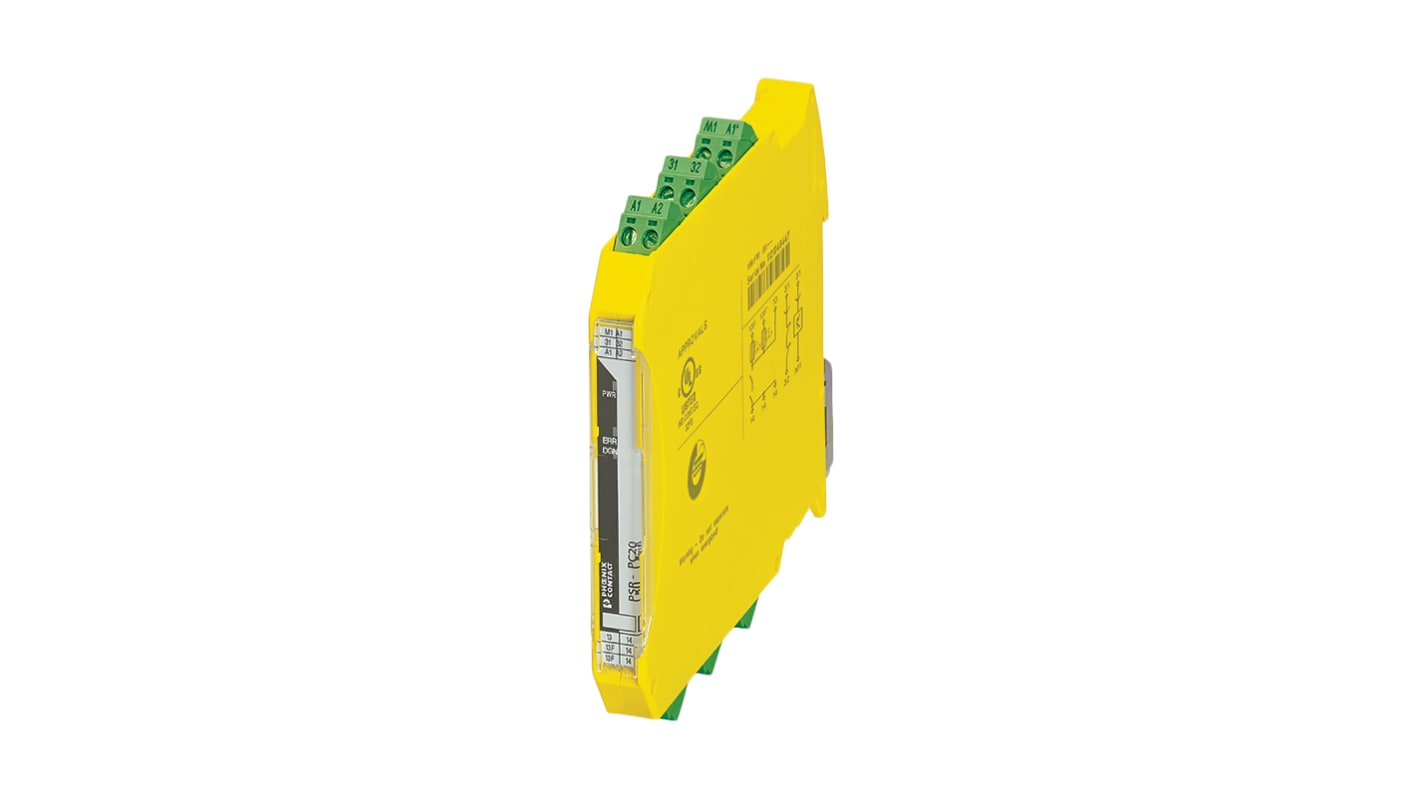

Phoenix Contact PSRmini PSR-PC20-1NO-1NC-24DC-SP Coupling Relay 24V dc
- RS Stock No.:
- 884-1165
- Mfr. Part No.:
- 2700578
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£135.07
(exc. VAT)
£162.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £135.07 |
5 + | £129.66 |
*price indicative
- RS Stock No.:
- 884-1165
- Mfr. Part No.:
- 2700578
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Supply Voltage | 24V dc | |
Range | PSRmini | |
Depth | 114.5mm | |
Width | 7mm | |
Series | PSR-PC20-1NO-1NC-24DC-SP | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Supply Voltage 24V dc | ||
Range PSRmini | ||
Depth 114.5mm | ||
Width 7mm | ||
Series PSR-PC20-1NO-1NC-24DC-SP | ||
- COO (Country of Origin):
- DE
PSR Mini PC20 Optocouplers
The PSR Mini PC20 Optocoupler is a coupling relay that can be used for power adaptation and electrical isolation in high and low-demand applications up to SIL 3. When using this module, circuits are interrupted in a safety-oriented manner.
The PC20 safety relay has an interface for the TBUS DIN rail connector via which the diagnostic supply voltage can be routed.
The PC20 safety relay has an interface for the TBUS DIN rail connector via which the diagnostic supply voltage can be routed.
Used in applications up to SIL 3 according to IEC 61508 & EN61511
Used for safety-related switching off
12.5mm housing width
Approved for Class l, Zone 2 applications
Integrated DCS test pulse filter
Low inrush current
2 internal 5AT fuses, TBUS connection
1 undelayed enabling current path
1 undelayed confirmation current path
1 digital signal output
Option of screw or spring-cage terminal blocks for plug-in
Used for safety-related switching off
12.5mm housing width
Approved for Class l, Zone 2 applications
Integrated DCS test pulse filter
Low inrush current
2 internal 5AT fuses, TBUS connection
1 undelayed enabling current path
1 undelayed confirmation current path
1 digital signal output
Option of screw or spring-cage terminal blocks for plug-in
Standards
IEC 61508, EN 61511
