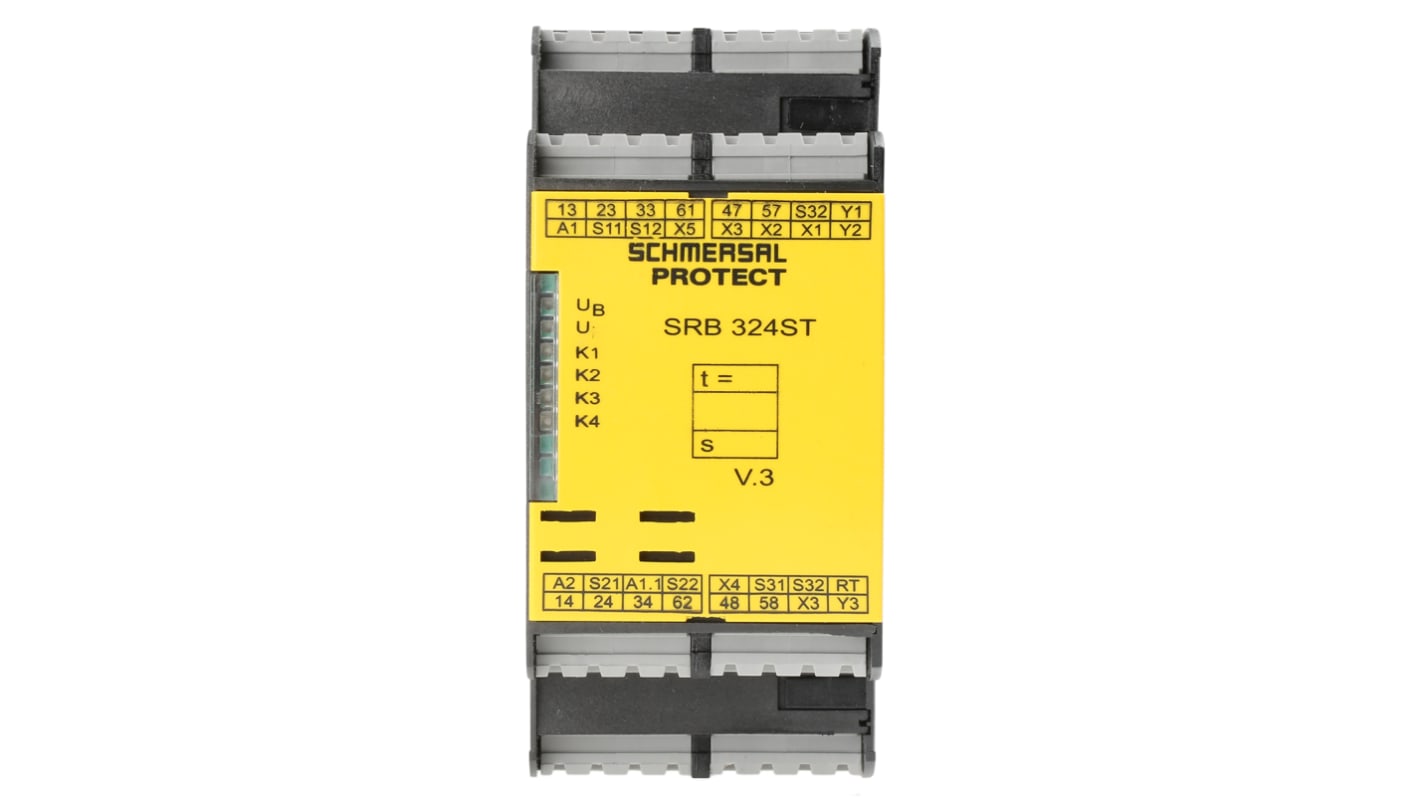

Schmersal PROTECT SRB SRB 324ST 1 Auxiliary Contacts Safety Relay 24V ac/dc, Single/Dual-Channel 5 Safety Contacts
- RS Stock No.:
- 741-8666
- Mfr. Part No.:
- SRB324ST 24V (V.3)
- Brand:
- Schmersal
Subtotal (1 unit)*
£563.80
(exc. VAT)
£676.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 999,999,988 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £563.80 |
*price indicative
- RS Stock No.:
- 741-8666
- Mfr. Part No.:
- SRB324ST 24V (V.3)
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schmersal | |
Supply Voltage | 24V ac/dc | |
Number of Channels | 1, 2 | |
Safety Contacts | 5 | |
Function | Emergency Stop | |
Auxiliary Contacts | 1 | |
Reset Method | Automatic | |
Range | PROTECT SRB | |
Safety Category ISO 13849-1 | 3 | |
PL ISO 13849-1 | d | |
SIL IEC 61508 | 2 | |
Terminal Type | Screw | |
Series | SRB 324ST | |
Width | 45mm | |
Depth | 121mm | |
Length | 100mm | |
Performance Level | d | |
Select all | ||
---|---|---|
Brand Schmersal | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 1, 2 | ||
Safety Contacts 5 | ||
Function Emergency Stop | ||
Auxiliary Contacts 1 | ||
Reset Method Automatic | ||
Range PROTECT SRB | ||
Safety Category ISO 13849-1 3 | ||
PL ISO 13849-1 d | ||
SIL IEC 61508 2 | ||
Terminal Type Screw | ||
Series SRB 324ST | ||
Width 45mm | ||
Depth 121mm | ||
Length 100mm | ||
Performance Level d | ||
- COO (Country of Origin):
- DE
PROTECT SRB324ST - Safety Relays
Introducing the PROTECT SRB324 range from Schmersal, producers of high quality, reliable safety relays that meet several industry safety standards. These general purpose safety relay modules are for the evaluation of switching signals. The PROTECT SRB324 range is universal and can be used with other brands of safety switchgear.
Suitable for signal processing of potential-free outputs, e.g. emergency stop command devices, position switches and solenoid interlocks
Suitable for signal processing of outputs connected to potentials (AOPDs), STOP 0, 2 safety contacts, STOP 1 (adjustable 1 → 30 s)
4 Signalling outputs
Optional: Short-circuit recognition, Manual reset with edge detection in fail-safe circuit, Automatic reset function
Suitable for signal processing of outputs connected to potentials (AOPDs), STOP 0, 2 safety contacts, STOP 1 (adjustable 1 → 30 s)
4 Signalling outputs
Optional: Short-circuit recognition, Manual reset with edge detection in fail-safe circuit, Automatic reset function
Approvals
BG, USA/CAN
Schmersal PROTECT Safety Relay, Single or Dual Channel, 24 V AC/DC - SRB 324ST Series - SRB324ST 24V (V.3)
This relay from Schmersal enhances workplace safety in automated industrial applications. It can signal emergency stop commands to potential-free outputs – such as position switches – and control the flow of energy to potentials, like safety-light grids. The unit's feedback circuit offers high levels of reliability by preventing contact-point failure and ensuring continuous operation of the unit. Snap-on DIN-rail mounting allows for quick control-panel installation or removal. The device delivers high-speed function combined with low power requirements.
Features and Benefits
• Time-saving automatic reset function
• Self-cleaning contacts to prevent the build-up of non-conductive deposits
• Ventilated housing that quickly dissipates heat to keep operating temperature cool and improve efficiency
• Meets EN 954-1 Category 4 safety parameters so maintains its safety function even with an accumulation of undetected faults
• Self-cleaning contacts to prevent the build-up of non-conductive deposits
• Ventilated housing that quickly dissipates heat to keep operating temperature cool and improve efficiency
• Meets EN 954-1 Category 4 safety parameters so maintains its safety function even with an accumulation of undetected faults
Application Information
• Process handling
• Robotics
• Medical industry
• Food processing
• Robotics
• Medical industry
• Food processing
How big is this safety relay?
This Schmersal relay is compact and lightweight for improved efficiency and packing capacity in your control panel. Its dimensions are 100 (H) x 45 (W) x 121 (D) mm, and it weighs just 240 g.
