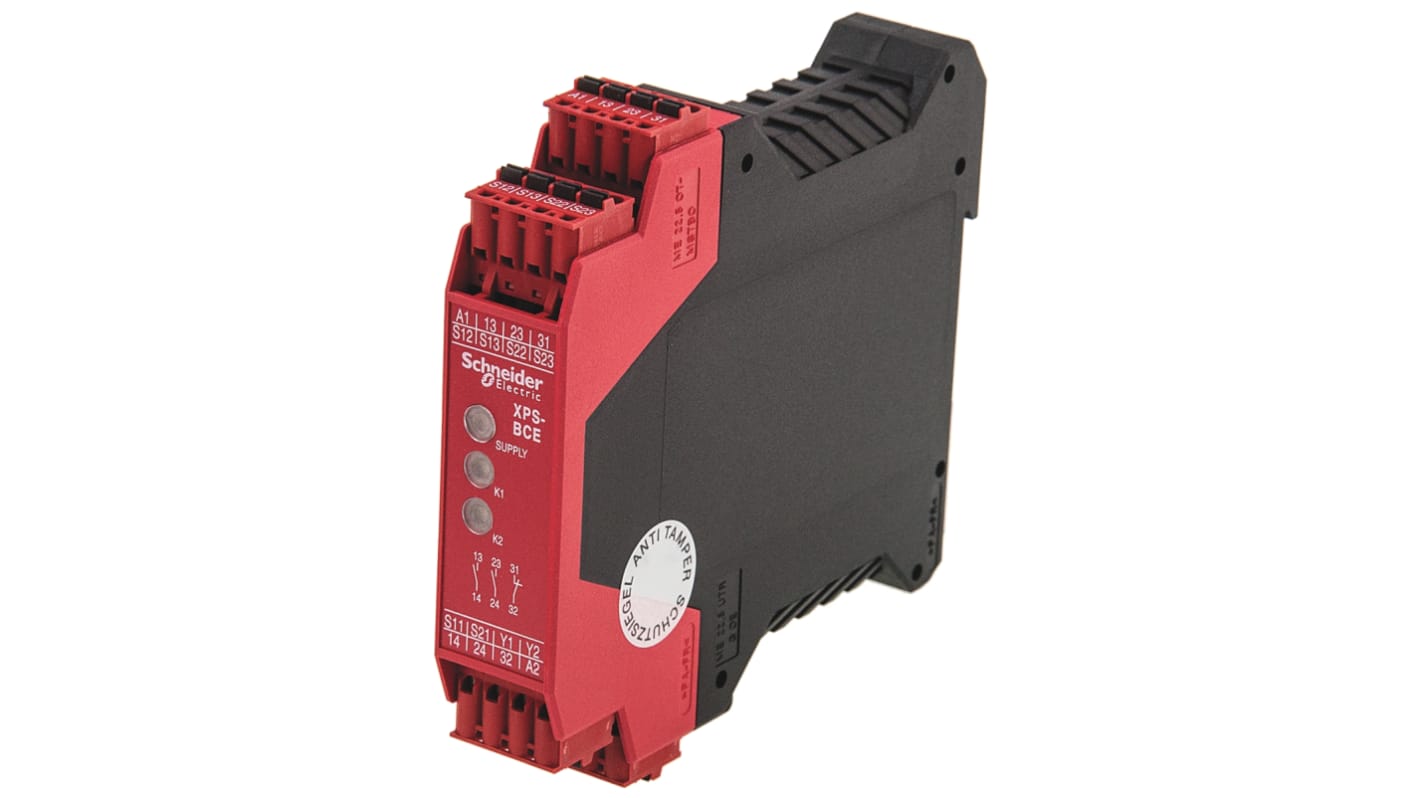

Schneider Electric Two Hand Control Safety Relay, 24V ac/dc, 2 Safety Contacts

RS Stock No.:: 731-8957
Mfr. Part No.:: XPSBCE3110C
Brand:: Schneider Electric

Schneider Electric Two Hand Control Safety Relay, 24V ac/dc, 2 Safety Contacts

Price Each

£227.34

(exc. VAT)

£272.81

(inc. VAT)

Available to back order for despatch when stock is available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 +	£227.34

Alternatives

This product is not currently available. Here are our alternative recommendations.

Schneider Electric Preventa XPS BCE Two Hand Control Safety Relay, 24V ac/dc, 2 Safety Contacts

RS Stock No.: 731-8951

Price Each

£307.73

(exc. VAT)

£369.28

(inc. VAT)

Schneider Electric Harmony XPS/ Preventa XPS XPSU Emergency Stop Safety Relay, 24V ac/dc, Dual-Channel, 2 Safety

RS Stock No.: 200-6141

Price Each

£263.44

(exc. VAT)

£316.13

(inc. VAT)

RS Stock No.:: 731-8957
Mfr. Part No.:: XPSBCE3110C
Brand:: Schneider Electric

Schneider Electric XPS BCE Series Safety Relays for Two Hand Control, Type IIIC.

From Schneider Electric we offer you the Preventa XPS range of Safety relays (safety modules) providing the solution and answer to monitoring safety relay functions. The relays include redundancy principle micro-pressor technology providing you with advanced functionality. There are various safety relay models to choose from, including removeable terminal block versions, allowing easy selection of a module to monitor a safety functions.

Features.

Emergency stop and switches

Coded magnetic switches

Enabling switch

Sensing mats and edges

Two-hand control

Light curtains

Zero speed

Time delay

Lifts

Other applications on hydraulic and eccentric presses.

Incorporates relay outputs for two hand control applications

Compact and robust design

The enclosure has a protection class rating of IP40 and the terminals are protected to IP20

To initiate a dangerous movement, both operators (two-hand control pushbuttons) must be activated within an interval of less than 0.5 s (synchronous activation)

Three LEDs to indicate control/fuse supply, feedback loop and safety output contact status

PL e/Category 4 conforming to EN/ISO 13849-1, SILCL 3 conforming to EN/IEC 62061

Cage clamp and pluggable versions are available

The safety relays are suitable for all applications with hazards and protect machines and operators.

These safety modules can be used in conjunction with the Harmony XY2SB range of two-hand control stations

What Safety Relay should I use with a Two Hand Control Station?

Safety modules XPS BA, BC and BF may be used for two-hand control stations in order to comply with the requirements of European standard EN 574/ISO 13851 for two-hand control systems.

Approvals

UL, CSA, BG

XPSBCE3110C Two Hand Control Preventa Safety Relay Safety Module.

XPSBCE Series safety relay.

For electrical monitoring of two-hand control stations applications.

Spring terminals.

2 NO output, volt free.

1 NC additional circuit.

24 V ac/dc rated voltage.

50/60 Hz frequency.

Internal, electronic protection.

1 NC + NO inputs.

Breaking capacity - B300 holding 160 VA AC-15 for relay output, B300 inrush 3600 VA AC-15 for relay output.

Minimum output current 10 mA for relay output.

Minimum output voltage 17 V for relay output.

3 LEDs

35 mm symmetrical DIN rail mounting.

IP40(Enclosure) conforming to EN/IEC 60529.

IP20(Terminals) conforming to EN/IEC 60529.

Safety Level.

Can reach SILCL 3 conforming to EN/IEC 62061. Can reach PL e/category 4 conforming to EN/ISO 13849-1.

Standards.

EN 574 type III C/ISO 1385,1 EN/IEC 60204-1, EN/IEC 60947-5-1.

Attribute	Value
Supply Voltage	24V ac/dc
Safety Contacts	2
Function	Two Hand Control
Auxiliary Contacts	1
Range	Preventa
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
SIL IEC 61508	3
Terminal Type	Cage Clamp
Series	XPS BCE
Depth	114mm
Width	22.5mm
Performance Level	e
Length	111mm
