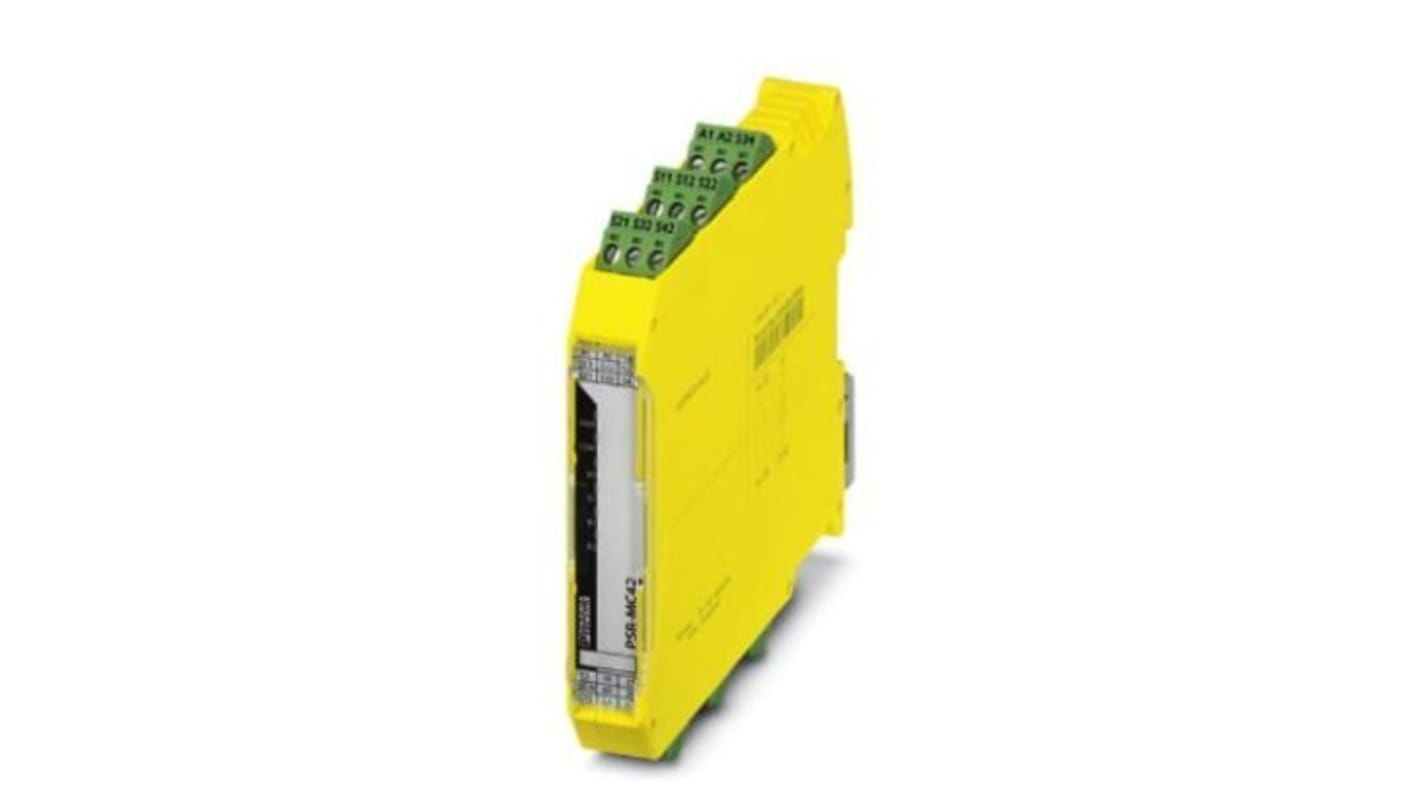

Phoenix Contact PSR-MC42, 24V dc Safety Relay, 2 Safety Contacts
- RS Stock No.:
- 207-2691
- Mfr. Part No.:
- 2702901
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£320.71
(exc. VAT)
£384.85
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £320.71 |
*price indicative
- RS Stock No.:
- 207-2691
- Mfr. Part No.:
- 2702901
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Safety Relay | |
| Safety Contacts | 2 | |
| Mount Type | DIN Rail | |
| Series | PSR-MC42 | |
| Power Consumption | 1.44W | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Switching AC Voltage | 12V ac | |
| Standards/Approvals | ISO 13849-1, IEC 62061, IEC 61508 | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 6A | |
| Maximum Operating Temperature | 60°C | |
| Length | 114.5mm | |
| Height | 112.2mm | |
| Width | 17.5mm | |
| Hazardous Area Certification | No | |
| Safety Category | CAT 4 | |
| Coil Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Safety Relay | ||
Safety Contacts 2 | ||
Mount Type DIN Rail | ||
Series PSR-MC42 | ||
Power Consumption 1.44W | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Switching AC Voltage 12V ac | ||
Standards/Approvals ISO 13849-1, IEC 62061, IEC 61508 | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Contact Current 6A | ||
Maximum Operating Temperature 60°C | ||
Length 114.5mm | ||
Height 112.2mm | ||
Width 17.5mm | ||
Hazardous Area Certification No | ||
Safety Category CAT 4 | ||
Coil Voltage 24V dc | ||
- COO (Country of Origin):
- DE
The Phoenix Contact safety relay is designed for two-hand control devices. It has synchronous activation monitoring.
Automatic activation
Low housing width
