Bernstein AG SCR 2 Auxiliary Contacts Safety Relay 24V ac/dc, Single Channel 3 Safety Contacts
- RS Stock No.:
- 177-9023
- Mfr. Part No.:
- 6075111018
- Brand:
- Bernstein AG
Subtotal (1 unit)*
£182.92
(exc. VAT)
£219.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £182.92 |
*price indicative
- RS Stock No.:
- 177-9023
- Mfr. Part No.:
- 6075111018
- Brand:
- Bernstein AG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bernstein AG | |
Supply Voltage | 24V ac/dc | |
Number of Channels | 1 | |
Safety Contacts | 3 | |
Function | Two Hand Control | |
Auxiliary Contacts | 2 | |
Terminal Type | Screw | |
Configurable | Yes | |
Width | 99mm | |
Series | SCR | |
Depth | 114.5mm | |
Length | 22.5mm | |
Select all | ||
---|---|---|
Brand Bernstein AG | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 1 | ||
Safety Contacts 3 | ||
Function Two Hand Control | ||
Auxiliary Contacts 2 | ||
Terminal Type Screw | ||
Configurable Yes | ||
Width 99mm | ||
Series SCR | ||
Depth 114.5mm | ||
Length 22.5mm | ||
- COO (Country of Origin):
- DE

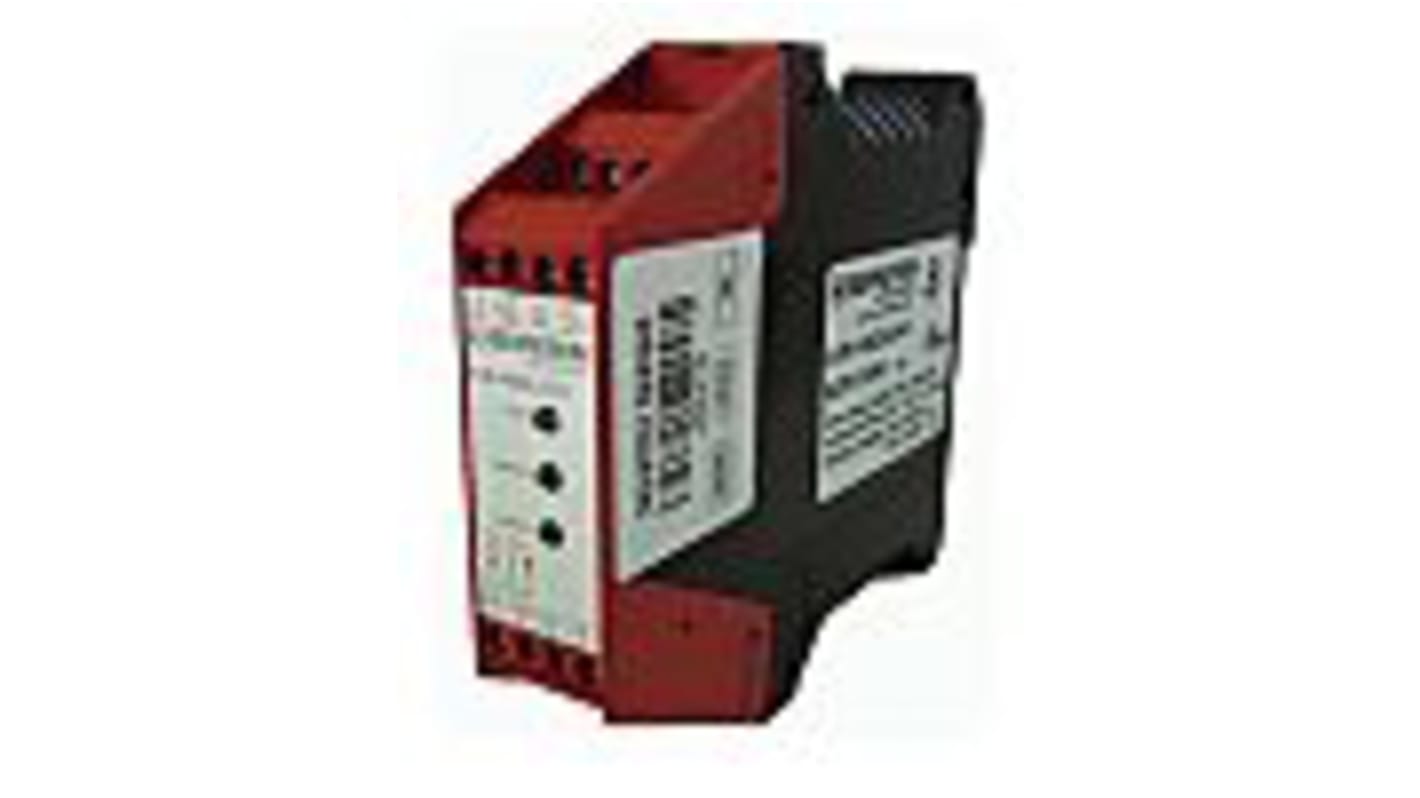

Bernstein AG Safety Relay
The Bernstein AG 2NO/1NC 24VDC SCR relay is housed in a slim-line DIN rail polyamide material housing. The SCR relay is used to monitor the correct position and reliable operation of inputs from the safety sensors or safety switch contacts.
Features and Benefits
• 1 PLC output
• Compact in dimension 22.5mmx114.5mmx99mm
• Feedback loop with monitored/automatic reset
• LED display for output status
• Operating temperature ranges between -25°C and 55°C
• Screw-type terminal for electrical connections
• Two-hand control unit synchronisation time is 0.5s
• Compact in dimension 22.5mmx114.5mmx99mm
• Feedback loop with monitored/automatic reset
• LED display for output status
• Operating temperature ranges between -25°C and 55°C
• Screw-type terminal for electrical connections
• Two-hand control unit synchronisation time is 0.5s
Applications
• Industrial automation
• Pressure sensitive mats
• Safety gates
• Pressure sensitive mats
• Safety gates
Certifications
• CCF
• DIN EN 60947-5-1
• DIN VDE 0160
• DIN VDE 0660 part 200
• DIN VDE 46228
• EN ISO 13849-1
• IP20 DIN VDE 0470 part 1 rated
• IP40 DIN VDE 0470 part 1 rated
• Performance Level e, Kat.3
• TUV
• DIN EN 60947-5-1
• DIN VDE 0160
• DIN VDE 0660 part 200
• DIN VDE 46228
• EN ISO 13849-1
• IP20 DIN VDE 0470 part 1 rated
• IP40 DIN VDE 0470 part 1 rated
• Performance Level e, Kat.3
• TUV
