Schmersal PROTECT-IE Output Module, , 0 Inputs, 6 Outputs, 24 V dc

PROTECT SRB207AN Series Safety Relays

Fit for signal evaluation of outputs of safety magnetic switches
2 safety contacts, Stop Category 0
6 Signalling outputs
Multi-evaluation of up to 6 safety guards
Suitable for signal processing of potential-free outputs, e.g. emergency stop command devices, position switches and solenoid interlocks

Standards

EN ISO 13849-1, IEC 61508, EN 60947-5-1

Approvals

BG, USA/CAN

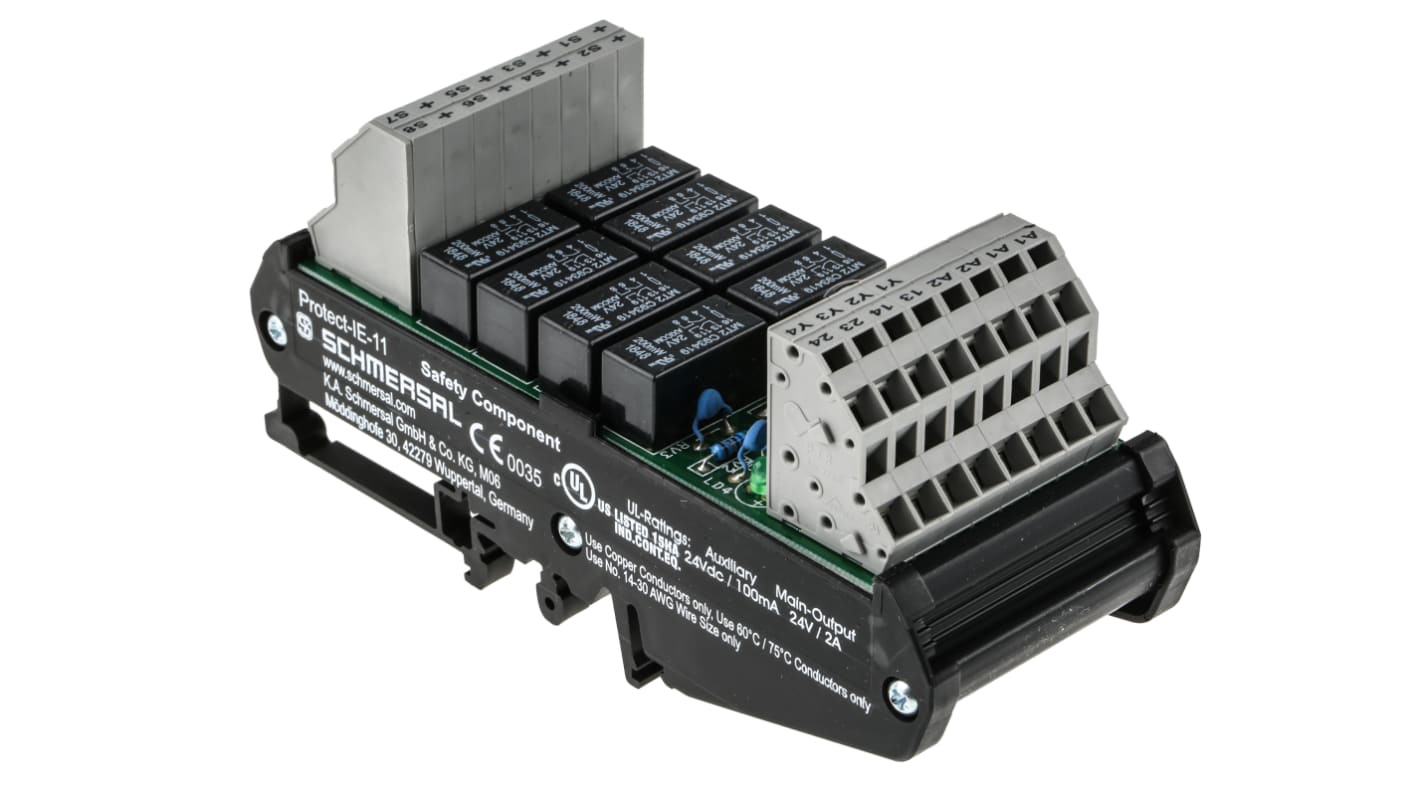

Schmersal Safety Relay Output Module, 6 Outputs, 24V DC - PROTECT-IE Series - PROTECT-IE-11

This output expansion module from Schmersal will connect your devices to a central control unit for improved safety. It offers six outputs for accommodating signals from magnetic safety switches, interlocking devices, emergency stop devices and similar systems, making it a versatile choice. It continually scans signals to detect any faults and protect the functioning of electrical systems in the event of a hazardous situation. The clamp terminal enables easy positioning, and the unit's low power consumption of 1.7W ensures high levels of efficiency.

Features & Benefits

• Glass fibre-reinforced thermoplastic housing ensures resistance to impact, corrosion and chemicals
• Snaps into place on a DIN rail for ease of installation
• Wide operating temperature range of -25°C to +55°C for use in demanding conditions
• Robust mechanical lifespan of 10 million operations for long-lasting performance

Applications

• Food processing
• Robotics
• Medical industry
• Automotive industry

Will this component take up a lot of space?

Thanks to its compact dimensions of 126 (height) x 48 (width) x 61mm (depth), this device fits easily into systems where space is limited.
