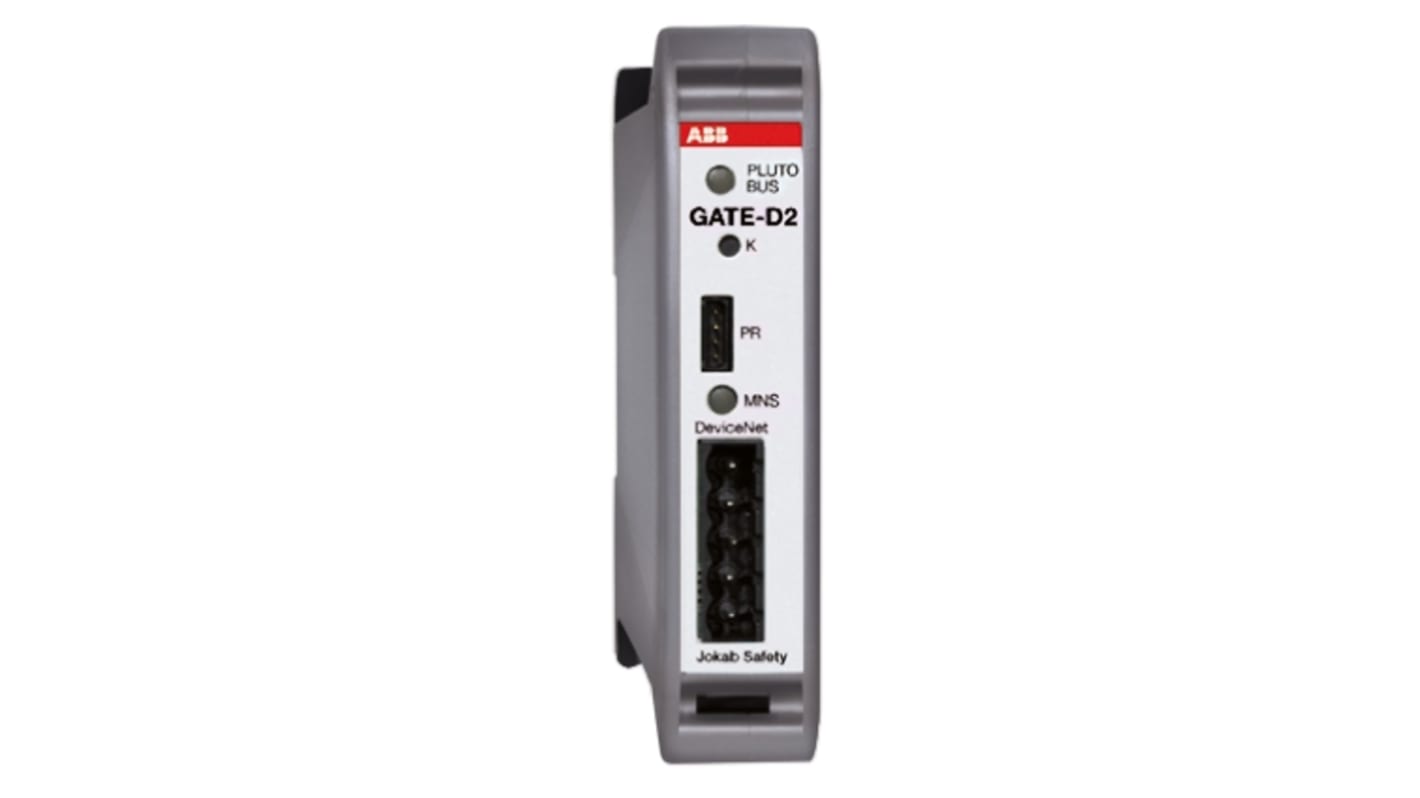

ABB GATE-D2 Series Safety Module, 5 Inputs, 5 Outputs, 24 V dc, NO/2 NC
- RS Stock No.:
- 733-4849
- Mfr. Part No.:
- 2TLA020071R8200
- Brand:
- ABB
Bulk discount available
Subtotal (1 unit)*
£411.28
(exc. VAT)
£493.54
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £411.28 |
| 5 - 9 | £390.71 |
| 10 - 24 | £370.17 |
| 25 - 49 | £349.60 |
| 50 + | £329.02 |
*price indicative
- RS Stock No.:
- 733-4849
- Mfr. Part No.:
- 2TLA020071R8200
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Safety Module | |
| Series | GATE-D2 | |
| Mount Type | DIN Rail | |
| Sub Type | Gateway | |
| For Use With | DeviceNet | |
| Supply Voltage | 24 V dc | |
| Normal State Configuration | NO/2 NC | |
| Number of Inputs | 5 | |
| Number of Outputs | 5 | |
| Terminal Type | Spring Clamp | |
| Power Rating | 3kW | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Safety Module | ||
Series GATE-D2 | ||
Mount Type DIN Rail | ||
Sub Type Gateway | ||
For Use With DeviceNet | ||
Supply Voltage 24 V dc | ||
Normal State Configuration NO/2 NC | ||
Number of Inputs 5 | ||
Number of Outputs 5 | ||
Terminal Type Spring Clamp | ||
Power Rating 3kW | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Pluto Gateways For Network Connection
The gateways are devices for transfer of data in both directions between the Pluto bus and other fieldbuses. They are made in these versions; GATE-D1 for DeviceNet (733-4849), GATE-E1 for Ethernet using Modbus A second usage for GATE-D1 and GATE-C1 is as a CAN-bridge (repeater) which transfers CAN telegrams between two CAN-buses. This can be useful when long cables are needed. With CANbridge the usage is not limited to any special protocol such as the Pluto CAN bus system, but it can be used for most CAN bus systems.
All gateways from ABB are mounted on a 35 mm DIN rail
24 Vdc operating voltage
The CAN bus and PROFIBUS are galvanic isolated from each other and from the 24 Vdc supply
The bus connectors have terminals for connection of a cable shield
