IDEM SCR Series Input/Output Module, 2 Inputs, 1 (Auxiliary), 3 (Safety) Outputs, 24 V ac/dc, 3NC
- RS Stock No.:
- 123-2741
- Mfr. Part No.:
- 280007-P
- Brand:
- IDEM
Subtotal (1 unit)*
£132.33
(exc. VAT)
£158.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £132.33 |
*price indicative
- RS Stock No.:
- 123-2741
- Mfr. Part No.:
- 280007-P
- Brand:
- IDEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | IDEM | |
Range | Viper | |
Series | SCR | |
Type | Input/Output Module | |
For Use With | SCR-21-i Safety Relay, SCR-31-42TD-i Safety Relay, SCR-31-i Safety Relay, SCR-31P-i Safety Relay, SCR-73-i Safety Relay | |
Supply Voltage | 24 V ac/dc | |
Normal State Configuration | 3NC | |
Number of Inputs | 2 | |
Number of Outputs | 1 (Auxiliary), 3 (Safety) | |
Power Rating | 1.6 W | |
Mounting Style | DIN Rail | |
Dimensions | 22.5 x 111 x 99 mm | |
Terminal Type | Plug In | |
Select all | ||
---|---|---|
Brand IDEM | ||
Range Viper | ||
Series SCR | ||
Type Input/Output Module | ||
For Use With SCR-21-i Safety Relay, SCR-31-42TD-i Safety Relay, SCR-31-i Safety Relay, SCR-31P-i Safety Relay, SCR-73-i Safety Relay | ||
Supply Voltage 24 V ac/dc | ||
Normal State Configuration 3NC | ||
Number of Inputs 2 | ||
Number of Outputs 1 (Auxiliary), 3 (Safety) | ||
Power Rating 1.6 W | ||
Mounting Style DIN Rail | ||
Dimensions 22.5 x 111 x 99 mm | ||
Terminal Type Plug In | ||
- COO (Country of Origin):
- GB

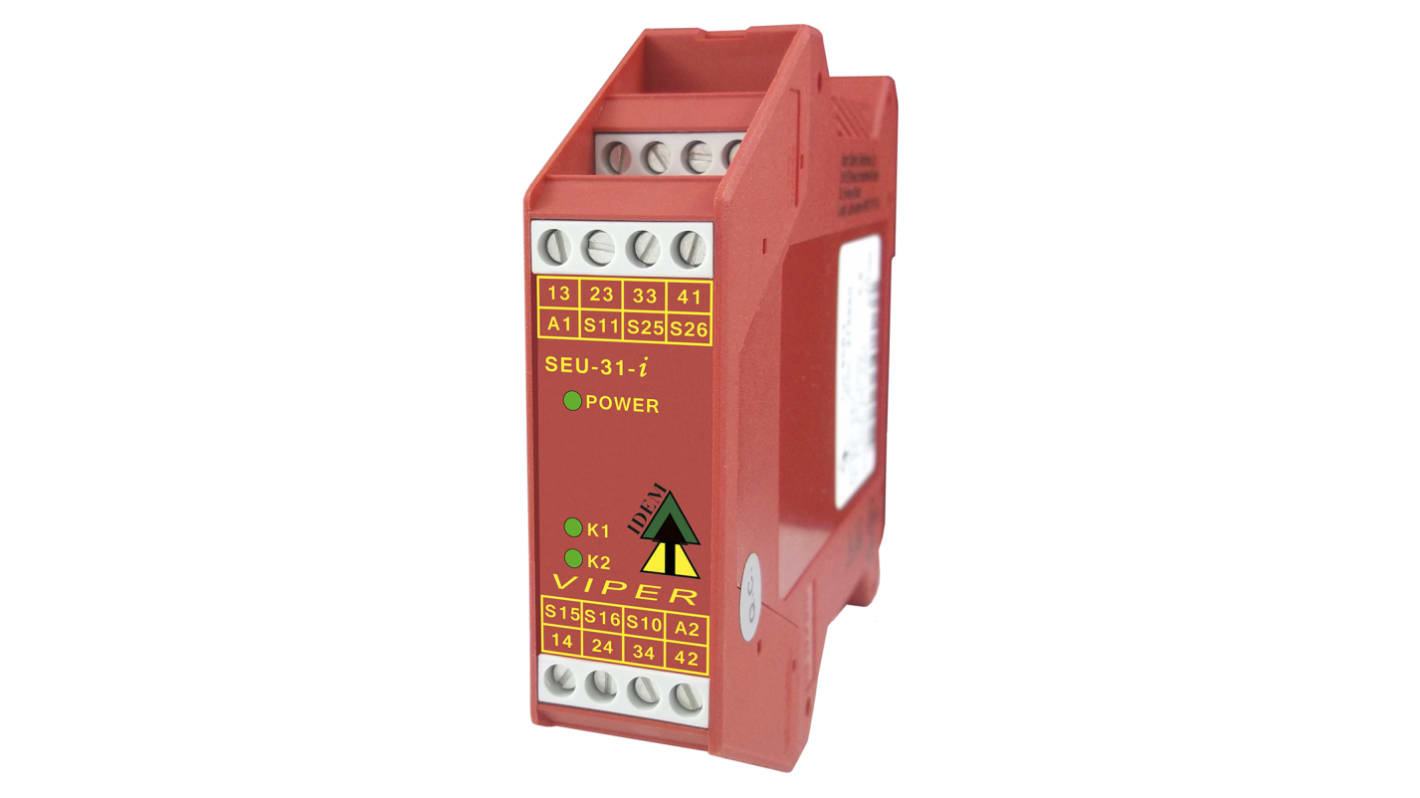

IDEM SEU-31-i VIPER Expansion Unit
Professional range of IDEM VIPER Safety Relays with pluggable and screw terminals. The safety relays incorporate expansion units. The relays can be directly wired to increase the number of safety output contacts. Designed to meet the latest safety standard and offer enhanced LED diagnostics and simplified wiring. Typical applications include safety interlock switches and emergency e-stop devices door guard monitoring.
The expansion units are designed to be used with any SCR base units. Multiple SEU expansion units can be used together.
The expansion units are designed to be used with any SCR base units. Multiple SEU expansion units can be used together.
Expansion unit for SCR base units
LED status indicator
22.5 mm DIN Rail mount
LED status indicator
22.5 mm DIN Rail mount
