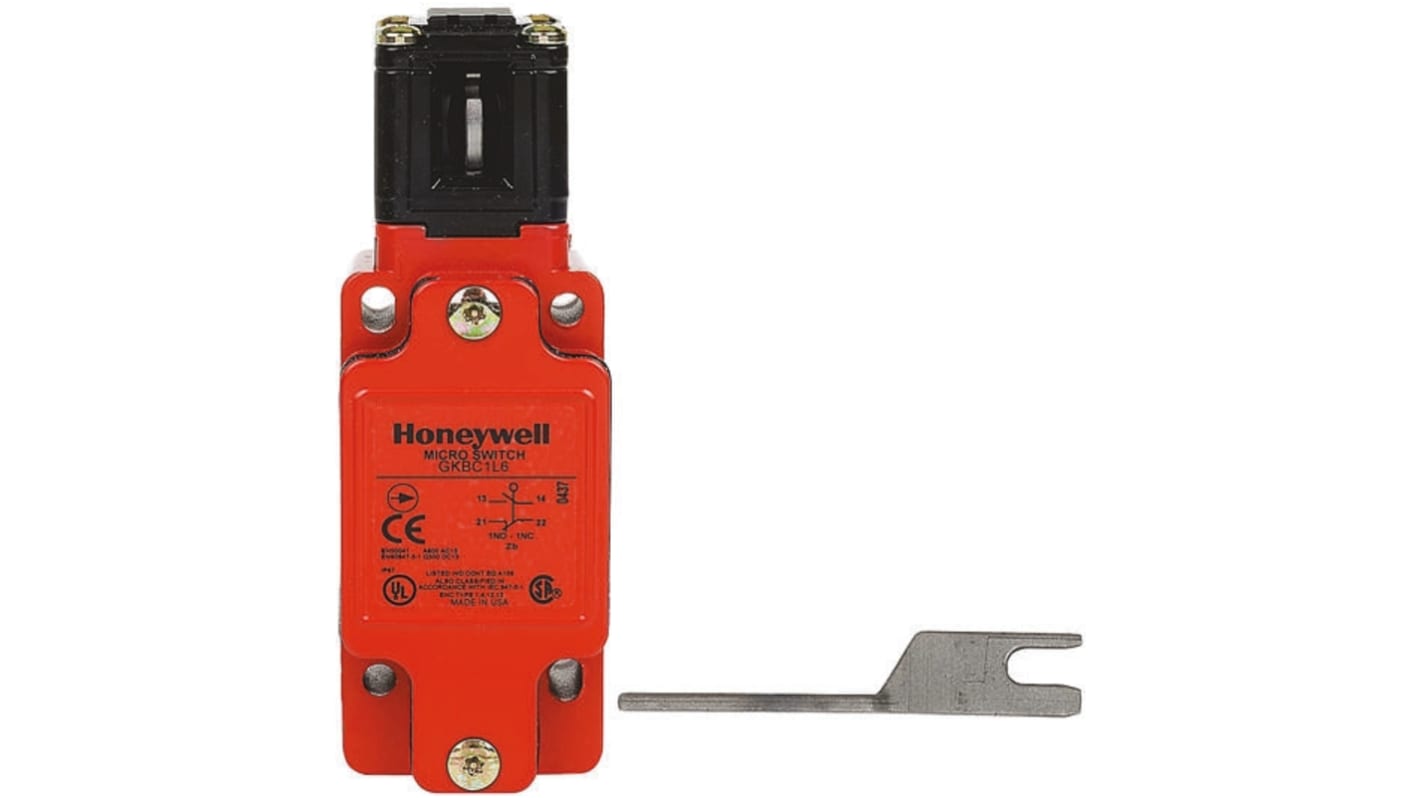

Honeywell GKC Safety Interlock Switch, Keyed Actuator Included, Fibreglass Reinforced Polyethylene Terephthalate
- RS Stock No.:
- 337-3812
- Distrelec Article No.:
- 303-44-292
- Mfr. Part No.:
- GKCC1L6
- Brand:
- Honeywell
Image representative of range
Subtotal (1 unit)*
£486.76
(exc. VAT)
£584.11
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £486.76 |
*price indicative
- RS Stock No.:
- 337-3812
- Distrelec Article No.:
- 303-44-292
- Mfr. Part No.:
- GKCC1L6
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Lock Style | Keyed | |
| Product Type | Safety Interlock Switch | |
| Actuator Included | Yes | |
| Safety Contacts | NC | |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate | |
| Series | GKC | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | 85°C | |
| Width | 42mm | |
| Number of Head Directions | 2 | |
| Length | 121.6mm | |
| Depth | 42.6mm | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Lock Style Keyed | ||
Product Type Safety Interlock Switch | ||
Actuator Included Yes | ||
Safety Contacts NC | ||
Housing Material Fibreglass Reinforced Polyethylene Terephthalate | ||
Series GKC | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP67 | ||
Maximum Operating Temperature 85°C | ||
Width 42mm | ||
Number of Head Directions 2 | ||
Length 121.6mm | ||
Depth 42.6mm | ||
GK Series
Heavy duty construction for harsh industrial environments
Designed with a wide key entry tolerance, to accommodate drift in door alignment over the life of the machine,
Compliance with the relevant European directives is assured with this design. Each switch is available with either a straight or a 90° key.
Contact blocks have screw terminals enabling use of spade wiring terminals, complying with global safety requirements.
Galvanically isolated contacts permit wiring normally closed and normally open contacts to different loads and polarities.
Forced disconnect mechanism on normally closed contacts conforms to IEC 947-5-1.
Resistance to tampering
Built-in compensation for key misalignment
IP67, NEMA 4 sealed enclosure - withstands high pressure washdown
Typical applications include hinged and sliding guard doors, protective covers and enclosures on machine tools, packaging machinery, conveyors, elevators, cranes, hoists and lifts and construction machinery equipment
Dimensions: H42.6mm, W30mm, D121.6mm
Interlock Switch
Approvals
UL Listed, CSA Certified
