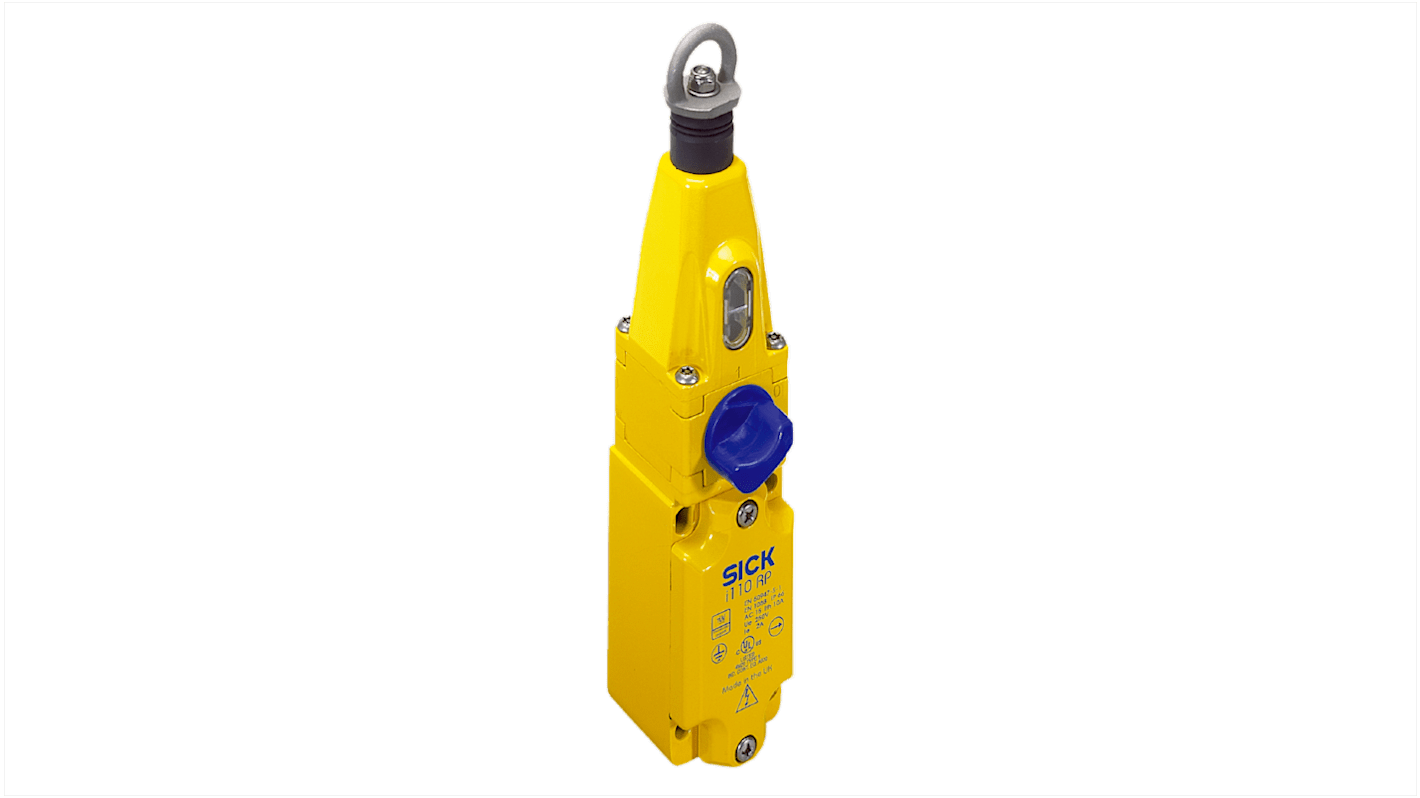

SICK i110 Safety Interlock Switch, 2NO/2NC, Die Cast Zinc
- RS Stock No.:
- 285-9576
- Mfr. Part No.:
- i110-RP223
- Brand:
- SICK
Subtotal (1 unit)*
£144.74
(exc. VAT)
£173.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £144.74 |
*price indicative
- RS Stock No.:
- 285-9576
- Mfr. Part No.:
- i110-RP223
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Normal State Configuration | 2NO/2NC | |
| Maximum AC Voltage | 240V ac | |
| Maximum DC Voltage | 24V dc | |
| Housing Material | Die Cast Zinc | |
| IP Rating | IP66 | |
| Number of Head Directions | 1 | |
| Dimensions | 40 x 204 x 56mm | |
| Series | i110 | |
| Standards Met | CE | |
| Maximum Operating Temperature | +80°C | |
| Width | 40mm | |
| Maximum Current | 3A | |
| Depth | 56mm | |
| Length | 204mm | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand SICK | ||
Normal State Configuration 2NO/2NC | ||
Maximum AC Voltage 240V ac | ||
Maximum DC Voltage 24V dc | ||
Housing Material Die Cast Zinc | ||
IP Rating IP66 | ||
Number of Head Directions 1 | ||
Dimensions 40 x 204 x 56mm | ||
Series i110 | ||
Standards Met CE | ||
Maximum Operating Temperature +80°C | ||
Width 40mm | ||
Maximum Current 3A | ||
Depth 56mm | ||
Length 204mm | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- DO
Overview
The Safe rope pull switch over large distances for stopping a machine ensure that dangerous movements are reliably stopped over distances up to 30 m. The rope is connected to the rope pull switch for optimum safeguarding of hazardous points that are not p
The contacts are opened by a pull on the rope or if the rope breaks, the emergency stop function is triggered. Actuation is possible at any point along the rope.
At a glance
Rope lengths up to 30 m, with rope break and rope pull function
Metal housing with integrated rotary unlocking lever and tension display
Available with M20 X 1.5 cable entry gland or Flexi Loop-compatible M12 plug connector (depending on variant)
Slow-act
Metal housing with integrated rotary unlocking lever and tension display
Available with M20 X 1.5 cable entry gland or Flexi Loop-compatible M12 plug connector (depending on variant)
Slow-act
Your Benefit
The emergency stop function can be triggered at any point along the rope
Simple adjustment of the rope tension
Rugged metal housing offers a high level of protection for the rope pull switch
User-friendly systems available with many rope lengths
Additiona
Simple adjustment of the rope tension
Rugged metal housing offers a high level of protection for the rope pull switch
User-friendly systems available with many rope lengths
Additiona
Applications
Use on machines and systems that do not have any physical guards
Safeguarding large areas, such as conveyor belts, assembly lines or feed systems
Safeguarding large areas, such as conveyor belts, assembly lines or feed systems
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
