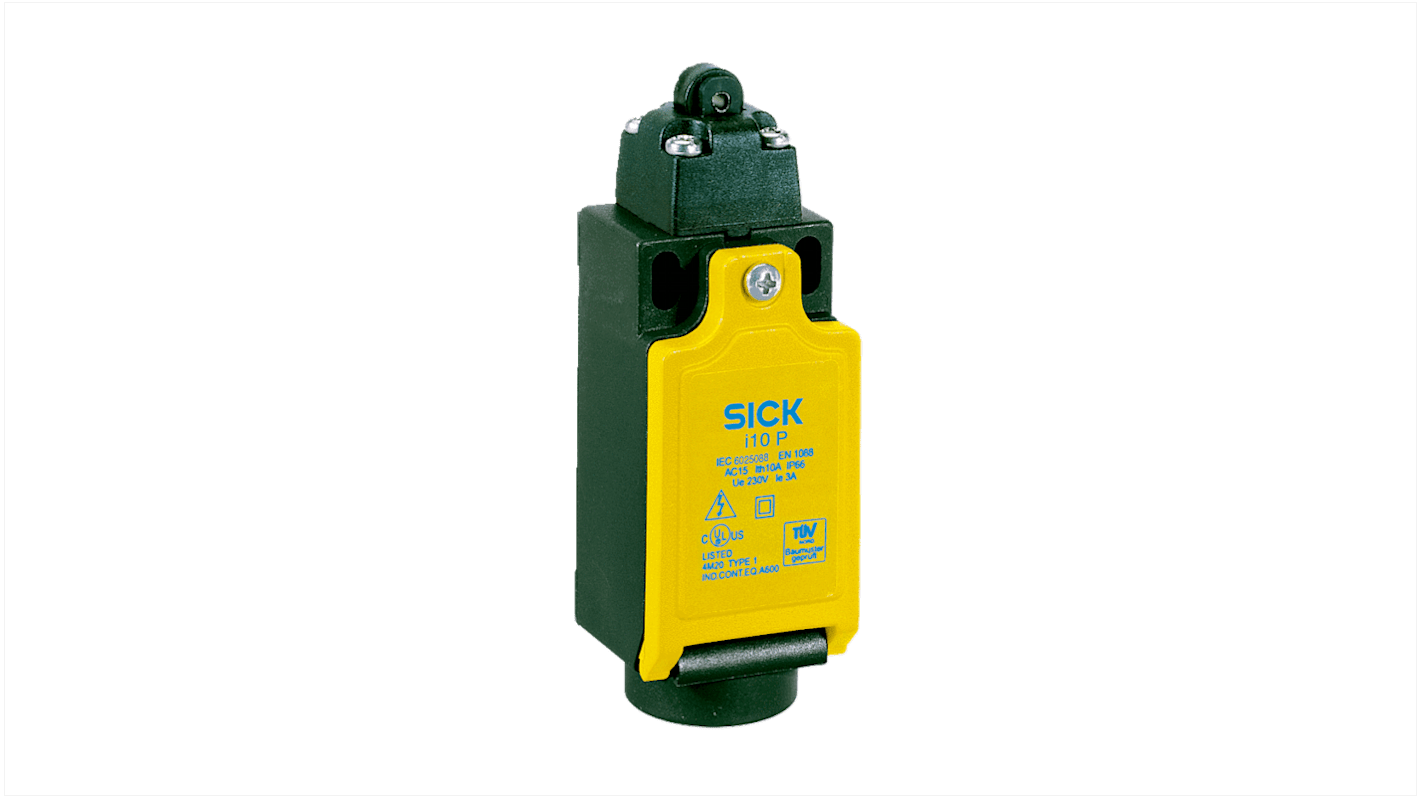

SICK i10 Safety Interlock Switch, Fibreglass Reinforced Thermoplastic
- RS Stock No.:
- 285-9566
- Mfr. Part No.:
- i10-PA213
- Brand:
- SICK
Subtotal (1 unit)*
£36.50
(exc. VAT)
£43.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.50 |
*price indicative
- RS Stock No.:
- 285-9566
- Mfr. Part No.:
- i10-PA213
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Interlock Switch | |
| Actuator Included | No | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | i10 | |
| Contact AC Voltage | 240V ac | |
| IP Rating | IP66 | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 24V dc | |
| Switch Contact Current | 3A | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 80°C | |
| Number of Head Directions | 4 | |
| Length | 90mm | |
| Depth | 28mm | |
| Width | 31mm | |
| Standards/Approvals | CE | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Interlock Switch | ||
Actuator Included No | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series i10 | ||
Contact AC Voltage 240V ac | ||
IP Rating IP66 | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 24V dc | ||
Switch Contact Current 3A | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 80°C | ||
Number of Head Directions 4 | ||
Length 90mm | ||
Depth 28mm | ||
Width 31mm | ||
Standards/Approvals CE | ||
Overview
The i10 Lock safety locking device is used for keeping guards safely locked until a hazardous area can be entered. The locking device features a narrow design that enables easy mounting directly on the guard framework.
Different switching elements and actuators make it both mechanically and electrically flexible. As a result, this safety switch can be adapted to nearly any application.
At a glance
Narrow plastic housing
Rigid or mobile actuators
Available with M20 X 1.5 cable entry glands or Flexi Loop-compatible M12 plug connector (depending on variant)
Power to lock or power to release variants
Lock and door monitoring
IP 67 enclosure rating
Your Benefit
Small design simplifies installation and makes it easy to mount directly on the guard door frame
Flexible electrical connectivity due to three cable entry glands
Improved diagnostics due to additional signalling contacts
Practical, simple adjustment due t
Applications
Safe monitoring of rotatable, laterally sliding or removable guards
Personal protection for over travel
Process protection for automated production systems
