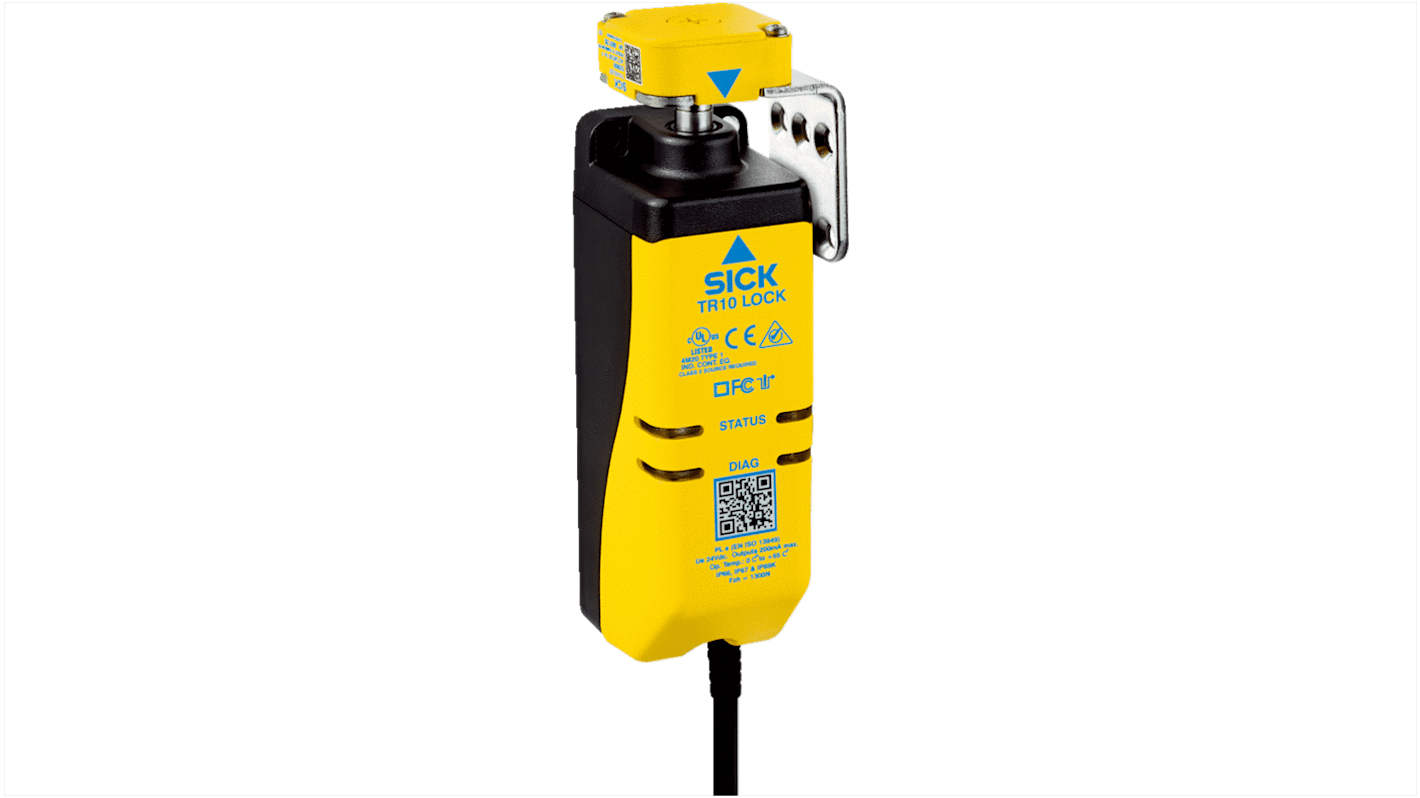

SICK TR10 Safety Interlock Switch, Power, ABS, Power to Release
- RS Stock No.:
- 285-9046
- Mfr. Part No.:
- TR10-SRU01C
- Brand:
- SICK
Subtotal (1 unit)*
£536.97
(exc. VAT)
£644.36
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 27 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £536.97 |
*price indicative
- RS Stock No.:
- 285-9046
- Mfr. Part No.:
- TR10-SRU01C
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Interlock Switch | |
| Lock Style | Power | |
| Lock Type | Power to Release | |
| Actuator Included | No | |
| Safety Contacts | 2 | |
| Housing Material | ABS | |
| Series | TR10 | |
| Contact DC Voltage | 24V dc | |
| Switch Contact Current | 200mA | |
| Contact AC Voltage | 230V ac | |
| IP Rating | IP69K, IP67, IP66 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Hazardous Area Certification | No | |
| Length | 200mm | |
| Standards/Approvals | IEC 60529 | |
| Width | 19.8mm | |
| Number of Head Directions | 4 | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Interlock Switch | ||
Lock Style Power | ||
Lock Type Power to Release | ||
Actuator Included No | ||
Safety Contacts 2 | ||
Housing Material ABS | ||
Series TR10 | ||
Contact DC Voltage 24V dc | ||
Switch Contact Current 200mA | ||
Contact AC Voltage 230V ac | ||
IP Rating IP69K, IP67, IP66 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Hazardous Area Certification No | ||
Length 200mm | ||
Standards/Approvals IEC 60529 | ||
Width 19.8mm | ||
Number of Head Directions 4 | ||
- COO (Country of Origin):
- DO
SICK TR10 Series Safety Interlock Switch, 200mm Length, ABS Housing - TR10-SRU01C
This safety interlock switch is intended to secure guards and access points in industrial automation environments. It uses an RFID sensor principle and a power-to-release locking mechanism to prevent access while hazardous operations continue. The unit is designed for series connection with safety controllers and provides self-monitoring semiconductor outputs for integration into safety circuits. It operates within typical machine-room temperatures and includes LED status indication for installation and diagnostics.
Features and Benefits:
• SIL3 safety level for very low dangerous-failure probability
• Category 4 performance level PL e for high-risk applications
• 2 safe outputs delivering 200mA rated operating current
• Power-to-release locking with 600 MS release time
• IP69K, IP67 and IP66 ingress protection classifications
• Category 4 performance level PL e for high-risk applications
• 2 safe outputs delivering 200mA rated operating current
• Power-to-release locking with 600 MS release time
• IP69K, IP67 and IP66 ingress protection classifications
Applications
• Suitable for safeguarding movable machine guards on production lines
• Used with safety controllers for series-connected door monitoring
• Ideal for wet-clean environments requiring high ingress protection
• Can be used for automated machinery access control systems
• Used for installations requiring multi-directional actuation capability
• Used with safety controllers for series-connected door monitoring
• Ideal for wet-clean environments requiring high ingress protection
• Can be used for automated machinery access control systems
• Used for installations requiring multi-directional actuation capability
What supply voltage range does it accept?
It accepts 24V DC supply within a 20.4V DC to 26.4V DC range.
How are connectivity and cabling handled?
It connects via an 8-pin M12 plug with a 0.2m cable and supports up to 200m linking.
What environmental temperatures can it withstand in operation?
It operates between 0°C and +55°C and can be stored between -25°C and +75°C.
Which materials are used for the housing and locking bolt?
The housing is ABS and the locking bolt is stainless steel 304.
How does the device indicate status and diagnostics?
Integrated LEDs provide status display and diagnostic indication.
