SICK I15 Safety Switch, Power, Fibreglass Reinforced Thermoplastic
- RS Stock No.:
- 285-1833
- Mfr. Part No.:
- i15-EP0133 Lock
- Brand:
- SICK
Subtotal (1 unit)*
£228.35
(exc. VAT)
£274.02
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £228.35 |
*price indicative
- RS Stock No.:
- 285-1833
- Mfr. Part No.:
- i15-EP0133 Lock
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Product Type | Safety Switch | |
| Lock Style | Power | |
| Actuator Included | No | |
| Safety Contacts | 1 NC | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Series | I15 | |
| Switch Contact Current | 1mA | |
| IP Rating | IP67 | |
| Contact AC Voltage | 230V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact DC Voltage | 24V dc | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 55°C | |
| Width | 42mm | |
| Standards/Approvals | CE | |
| Number of Head Directions | 4 | |
| Depth | 37.5mm | |
| Length | 96mm | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Product Type Safety Switch | ||
Lock Style Power | ||
Actuator Included No | ||
Safety Contacts 1 NC | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Series I15 | ||
Switch Contact Current 1mA | ||
IP Rating IP67 | ||
Contact AC Voltage 230V ac | ||
Minimum Operating Temperature -20°C | ||
Contact DC Voltage 24V dc | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 55°C | ||
Width 42mm | ||
Standards/Approvals CE | ||
Number of Head Directions 4 | ||
Depth 37.5mm | ||
Length 96mm | ||
- COO (Country of Origin):
- DE
Overview

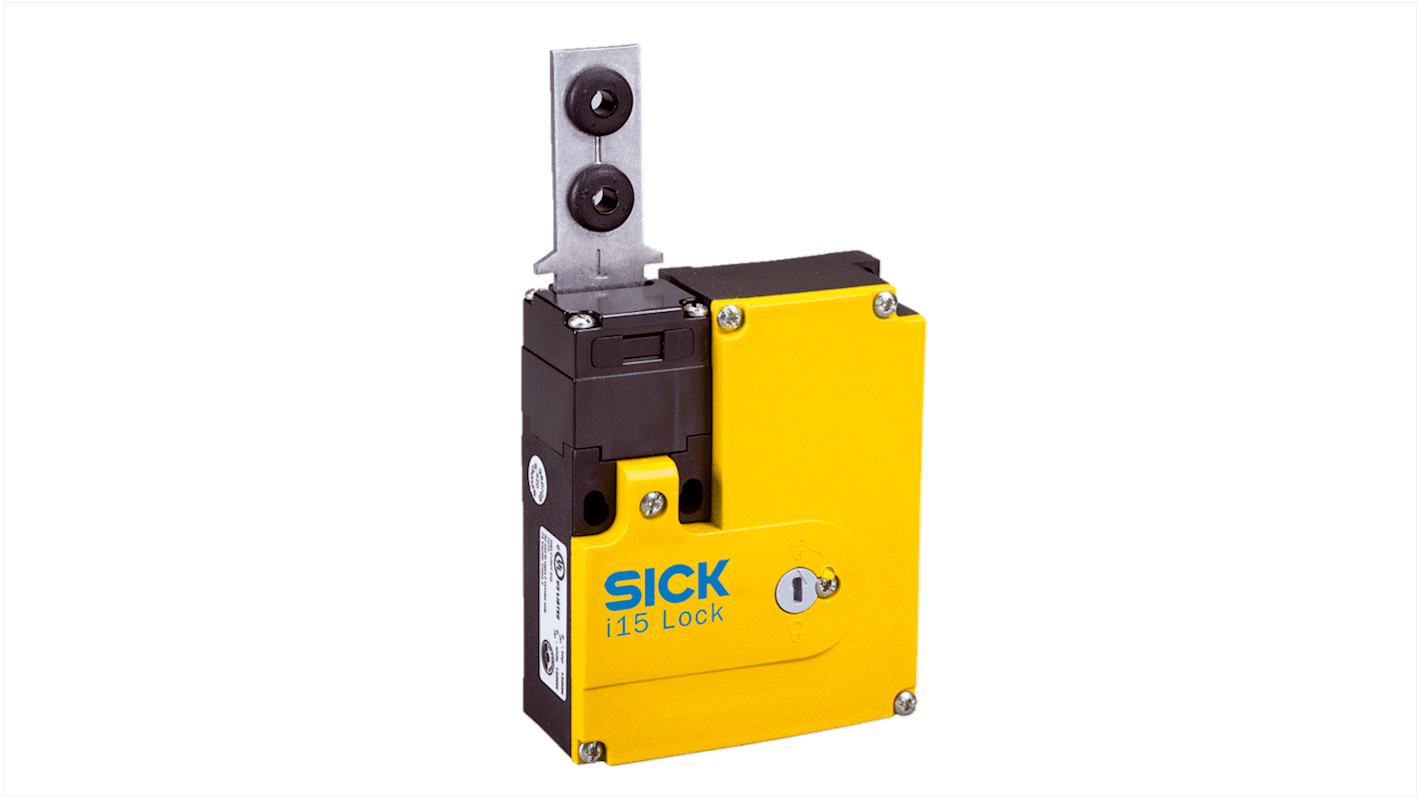

The i15 Lock safety locking device is used for keeping protective devices safely locked until a hazardous area can be entered. This safety switch is the smallest in the product family of safety locking devices.
The rotatable actuating head, made of metal or plastic, provides the high restrained force required for locking the protective device. It offers optimum safety in minimum space.
At a glance
Compact plastic housing
Variants with metal actuator head
Rigid or mobile actuators
1 M20 x 1.5 cable entry gland
Power to lock or power to release variants
Lock and door monitoring
IP 67 enclosure rating
Your Benefit
High reliability due to rugged metal actuator head, even when the guard has a mechanical offset
Improved diagnostics due to additional contacts for door monitoring
Small housing saves space and can be mounted in tight areas
Applications
