Eaton IEC, CE, CSA, UL, EN, IEC/EN 60947-5 LS Safety Interlock Switch, Actuator Actuator Included, Plastic, Interlock
- RS Stock No.:
- 272-7255
- Mfr. Part No.:
- 116705 LS-S11A
- Brand:
- Eaton
Subtotal (1 unit)*
£28.10
(exc. VAT)
£33.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.10 |
*price indicative
- RS Stock No.:
- 272-7255
- Mfr. Part No.:
- 116705 LS-S11A
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Safety Interlock Switch | |
| Lock Style | Actuator | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Safety Contacts | 1 NO | |
| Housing Material | Plastic | |
| Series | LS | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP67, IP66 | |
| Hazardous Area Certification | IEC, CE, CSA, UL, EN, IEC/EN 60947-5 | |
| Maximum Operating Temperature | 70°C | |
| Depth | 76.5mm | |
| Width | 31mm | |
| Length | 33.5mm | |
| Standards/Approvals | CSA, IEC/EN 60947, UL 508, CE, UL | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Safety Interlock Switch | ||
Lock Style Actuator | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Safety Contacts 1 NO | ||
Housing Material Plastic | ||
Series LS | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP67, IP66 | ||
Hazardous Area Certification IEC, CE, CSA, UL, EN, IEC/EN 60947-5 | ||
Maximum Operating Temperature 70°C | ||
Depth 76.5mm | ||
Width 31mm | ||
Length 33.5mm | ||
Standards/Approvals CSA, IEC/EN 60947, UL 508, CE, UL | ||

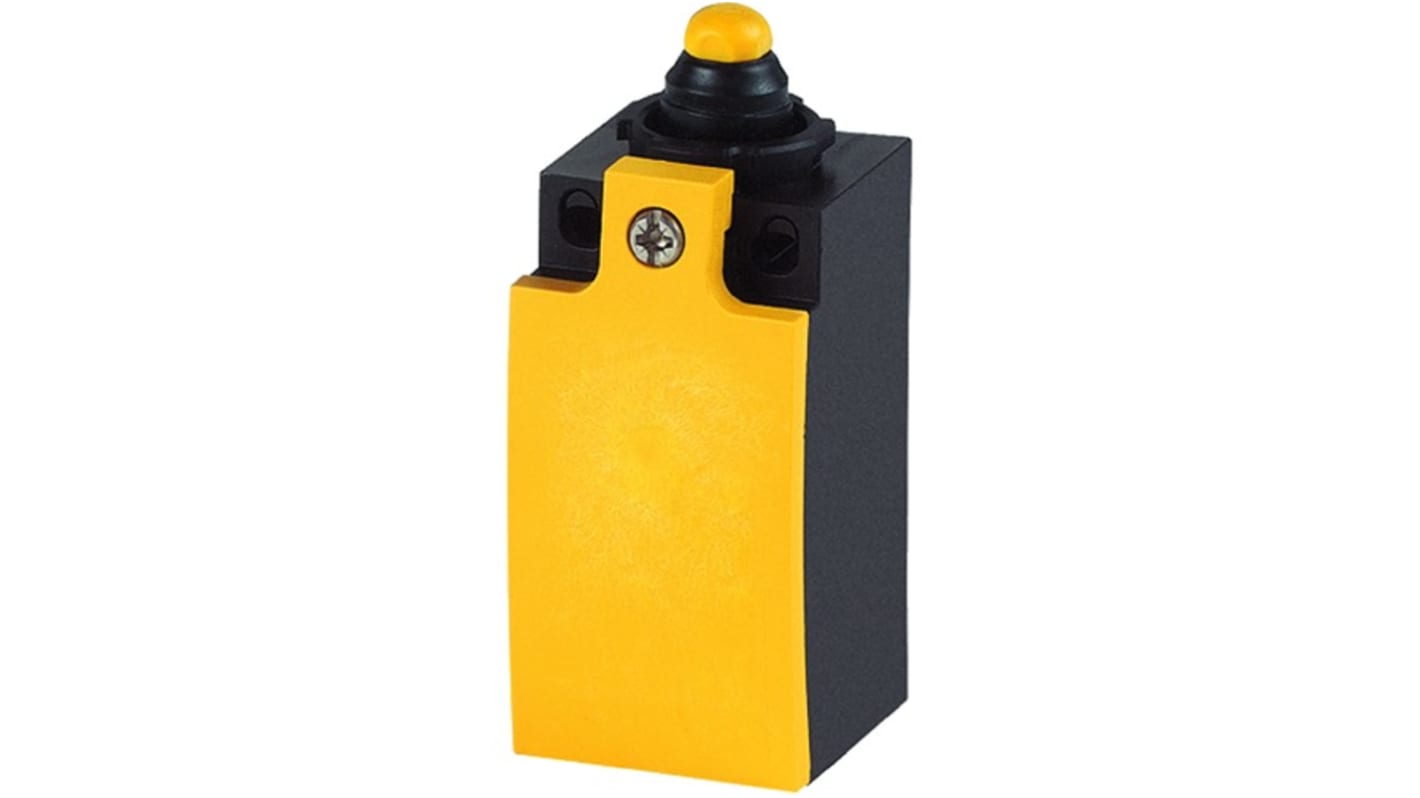

The Eaton Moeller series LS position switch that has slow action switch function type with cage clamp connection type. It has plastic insulated enclosure material and rated impulse withstand voltage 4000 Vac.
Expandable
Pollution degree 3
