Eaton CSA, CE, IEC/EN 60947-5, UL, EN, IEC LS Safety Interlock Switch, Actuator Actuator Included, Plastic, Interlock
- RS Stock No.:
- 272-7219
- Mfr. Part No.:
- 106782 LS-S02-SW
- Brand:
- Eaton
Subtotal (1 unit)*
£28.10
(exc. VAT)
£33.72
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £28.10 |
*price indicative
- RS Stock No.:
- 272-7219
- Mfr. Part No.:
- 106782 LS-S02-SW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Lock Style | Actuator | |
| Product Type | Safety Interlock Switch | |
| Lock Type | Interlock | |
| Actuator Included | Yes | |
| Housing Material | Plastic | |
| Series | LS | |
| IP Rating | IP67, IP66 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | CSA, CE, IEC/EN 60947-5, UL, EN, IEC | |
| Length | 33.5mm | |
| Width | 31mm | |
| Depth | 76.5mm | |
| Standards/Approvals | IEC/EN 60947, CE, CSA, UL, UL 508 | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Lock Style Actuator | ||
Product Type Safety Interlock Switch | ||
Lock Type Interlock | ||
Actuator Included Yes | ||
Housing Material Plastic | ||
Series LS | ||
IP Rating IP67, IP66 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification CSA, CE, IEC/EN 60947-5, UL, EN, IEC | ||
Length 33.5mm | ||
Width 31mm | ||
Depth 76.5mm | ||
Standards/Approvals IEC/EN 60947, CE, CSA, UL, UL 508 | ||
- COO (Country of Origin):
- DE

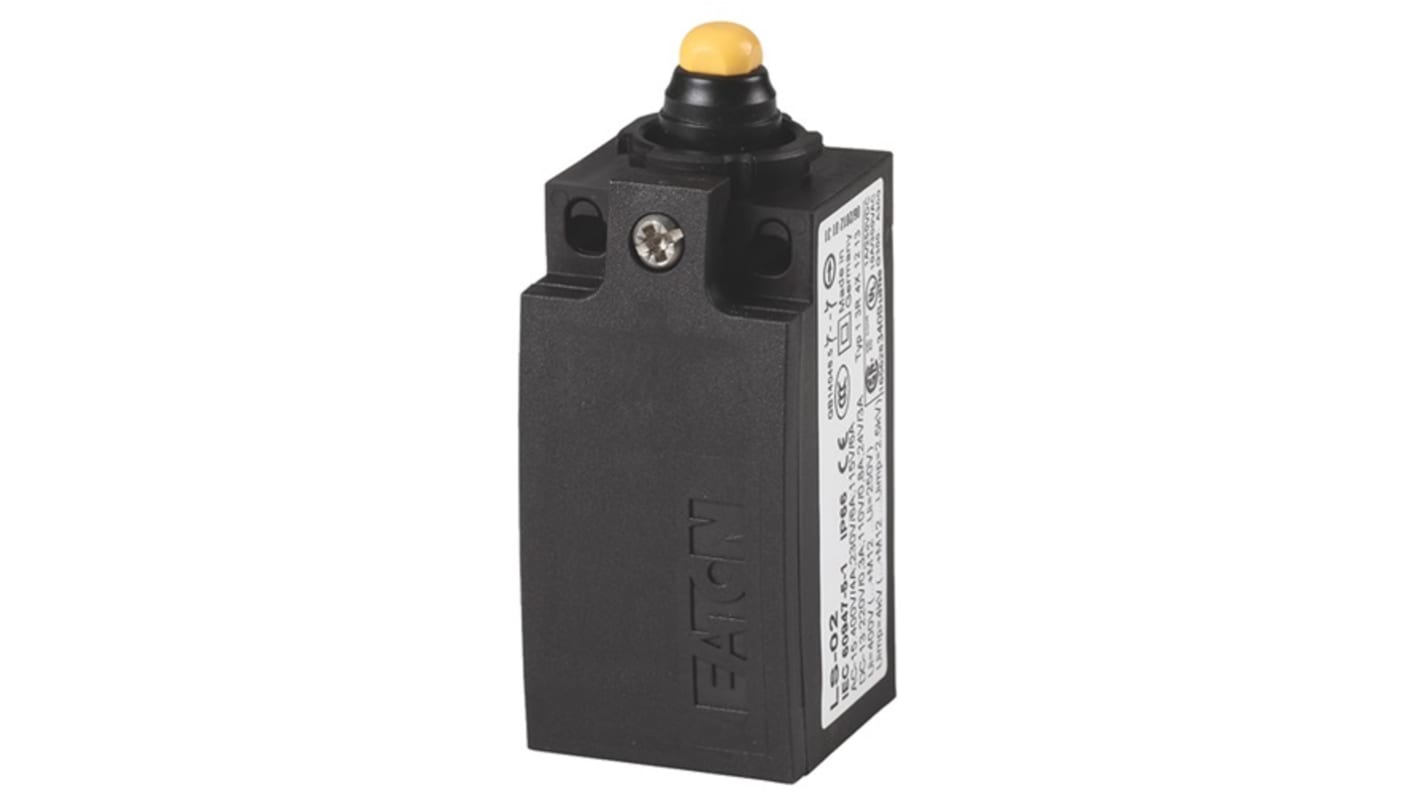

The Eaton Moeller series LS position switch that has slow action switch function type with screw terminal connection type. It has plastic insulated enclosure material and rated impulse withstand voltage 4000 Vac.
Expandable
Pollution degree 3
