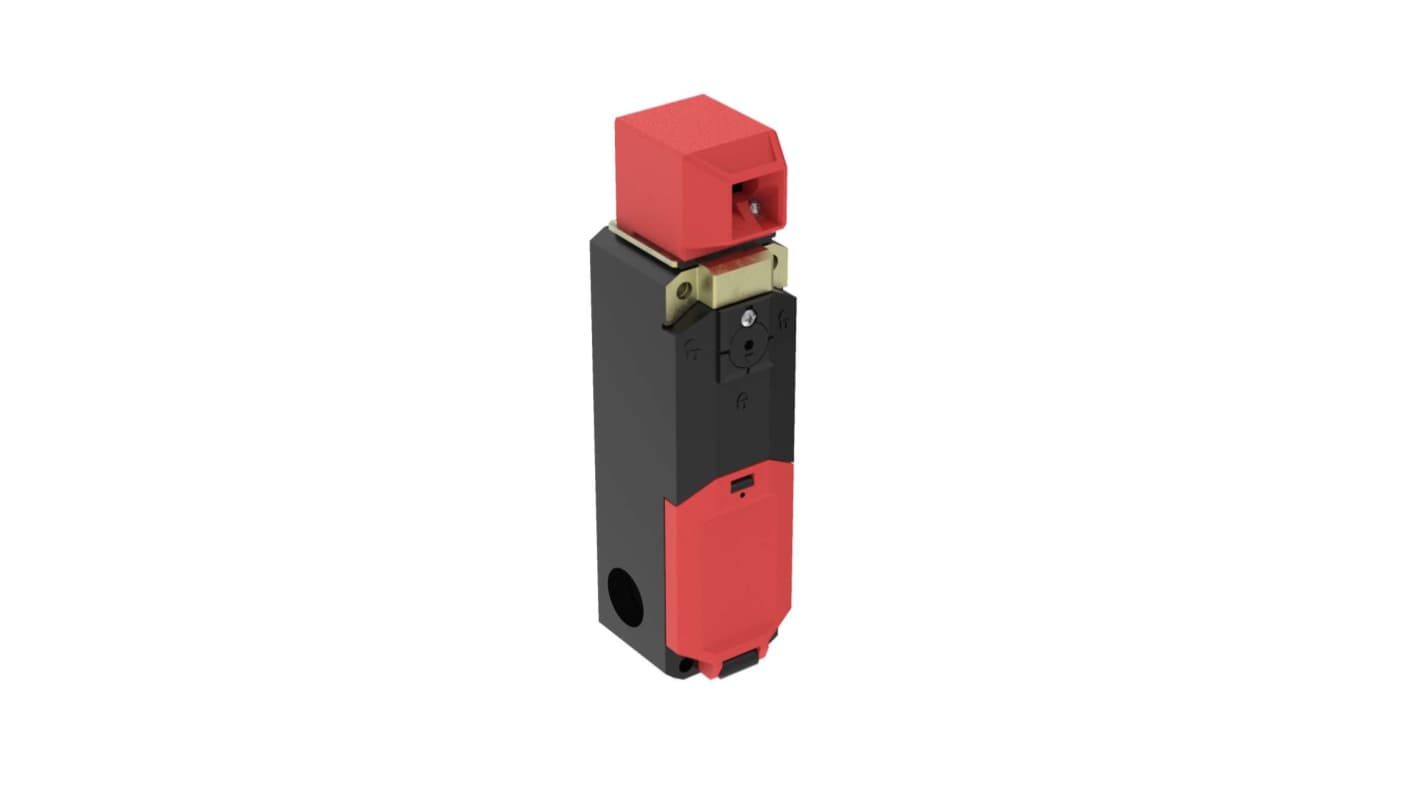

Banner SI-LS42 Safety Switch, Spring Actuator Included, Thermoplastic, Spring Lock
- RS Stock No.:
- 295-008
- Mfr. Part No.:
- SI-LS42DSJ
- Brand:
- Banner
Subtotal (1 unit)*
£347.64
(exc. VAT)
£417.17
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £347.64 |
*price indicative
- RS Stock No.:
- 295-008
- Mfr. Part No.:
- SI-LS42DSJ
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Safety Switch | |
| Lock Style | Spring | |
| Lock Type | Spring Lock | |
| Actuator Included | Yes | |
| Safety Contacts | 3 NC | |
| Housing Material | Thermoplastic | |
| Series | SI-LS42 | |
| Switch Contact Current | 10A | |
| IP Rating | IP67 | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -25°C | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO 12100, ANSI B11.19, ISO 13849-1, IEC 60947-5-1, ISO 14119 (EN 1088), ISO 13857, ANSI B11.0 | |
| Width | 43mm | |
| Number of Head Directions | 8 | |
| Depth | 43mm | |
| Length | 170mm | |
| Conduit Entry | M20 x 1.5 | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Safety Switch | ||
Lock Style Spring | ||
Lock Type Spring Lock | ||
Actuator Included Yes | ||
Safety Contacts 3 NC | ||
Housing Material Thermoplastic | ||
Series SI-LS42 | ||
Switch Contact Current 10A | ||
IP Rating IP67 | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -25°C | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO 12100, ANSI B11.19, ISO 13849-1, IEC 60947-5-1, ISO 14119 (EN 1088), ISO 13857, ANSI B11.0 | ||
Width 43mm | ||
Number of Head Directions 8 | ||
Depth 43mm | ||
Length 170mm | ||
Conduit Entry M20 x 1.5 | ||
- COO (Country of Origin):
- DE
The Banner Locking-Style Safety Interlock Switch is designed to enhance operational safety in industrial environments. With advanced guard locking capabilities, this switch monitors the position of guards, ensuring they are secure before hazardous machinery can be activated. Its innovative design facilitates safe access to machinery while offering reliable protection against unexpected starts.
Mechanical locking provides a secure connection that prevents accidental disengagement
IP67 rating guarantees protection against dust and water ingress
Manual release option ensures safety in case of system failure
