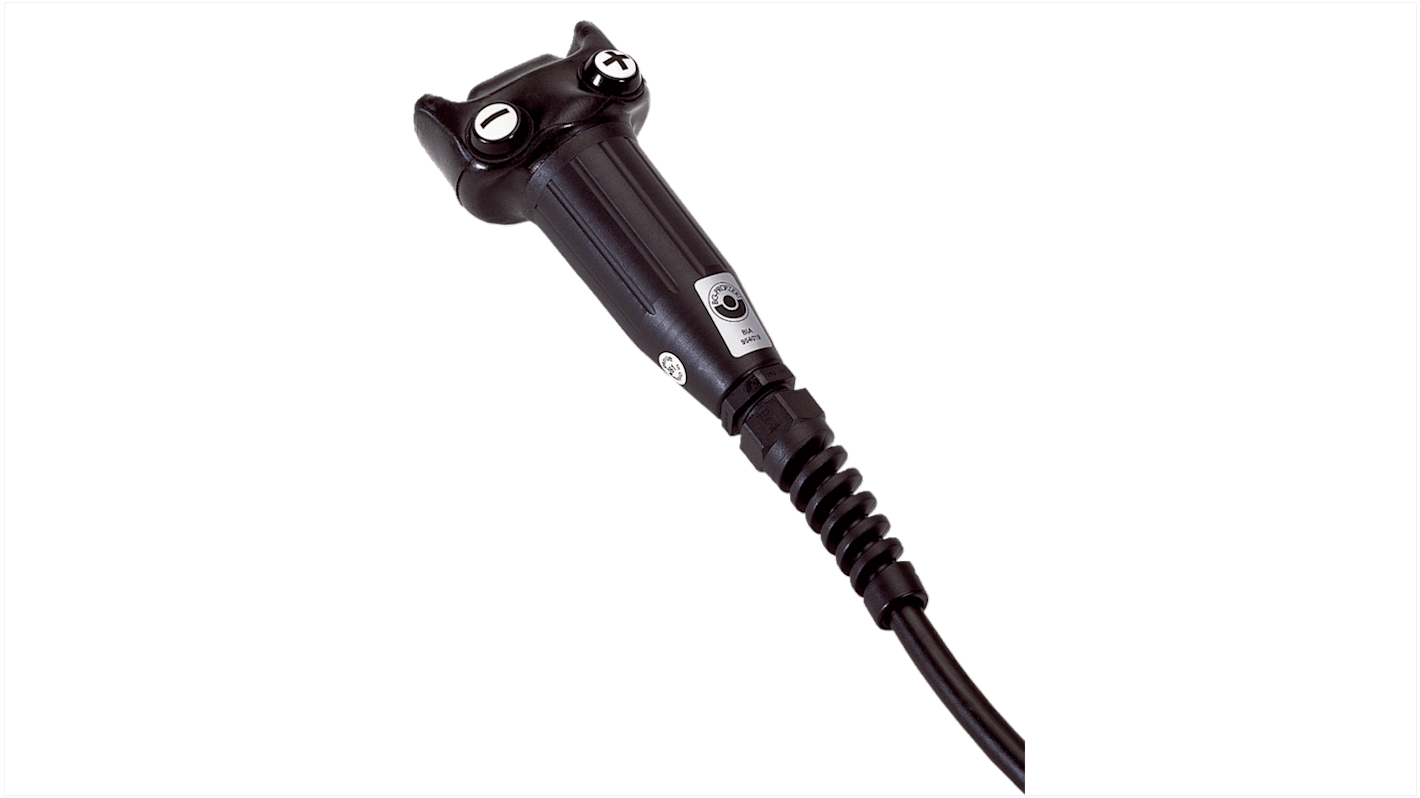

SICK E100 Series Safety Enabling Switch, 2 NO/2 NC, IP65
- RS Stock No.:
- 285-1273
- Mfr. Part No.:
- E100-B2A22S05A
- Brand:
- SICK
Subtotal (1 unit)*
£462.44
(exc. VAT)
£554.93
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £462.44 |
*price indicative
- RS Stock No.:
- 285-1273
- Mfr. Part No.:
- E100-B2A22S05A
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Series | E100 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 2 NO/2 NC | |
| IP Rating | IP65 | |
| Terminal Type | Cable | |
| Housing Material | Plastic | |
| Switch Contact Current | 2A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 24V dc | |
| Standards/Approvals | China RoHS, cULus, EC-Type Examination, EN, EU DoC, TPC, UKCA | |
| Hazardous Area Certification | No | |
| Depth | 40.5mm | |
| Width | 63mm | |
| Length | 132mm | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand SICK | ||
Series E100 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 2 NO/2 NC | ||
IP Rating IP65 | ||
Terminal Type Cable | ||
Housing Material Plastic | ||
Switch Contact Current 2A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 24V dc | ||
Standards/Approvals China RoHS, cULus, EC-Type Examination, EN, EU DoC, TPC, UKCA | ||
Hazardous Area Certification No | ||
Depth 40.5mm | ||
Width 63mm | ||
Length 132mm | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- DE
SICK E100 Series Safety Enabling Switch, 24V DC Contact Voltage, IP65 - E100-B2A22S05A
This safety enabling switch is a plastic-housed device designed for command-level safety functions in industrial settings. It provides a set of slow-action contacts for enabling or disabling operations and is intended for integration with external safety logic. The unit operates within a controlled temperature range and is suitable for environments requiring protected enclosures and cable connection.
Features and Benefits:
• 2NO/2NC contact arrangement for clear circuit segregation
• 2A switching current for 24V DC control circuits
• IP65 enclosure rating for protection against dust and water
• Mechanical life 100,000 cycles to support frequent actuation
• Cable Terminal with 5m PUR cable for straightforward wiring
• 2A switching current for 24V DC control circuits
• IP65 enclosure rating for protection against dust and water
• Mechanical life 100,000 cycles to support frequent actuation
• Cable Terminal with 5m PUR cable for straightforward wiring
Applications
• Suitable for machine start/stop interlocking in assembly lines
• Ideal for integration into production safety control systems
• Used with safety logic units for monitored stop functions
• Can be used for guarded access control on conveyors
• Suitable for factory environments requiring sealed switches
• Ideal for integration into production safety control systems
• Used with safety logic units for monitored stop functions
• Can be used for guarded access control on conveyors
• Suitable for factory environments requiring sealed switches
What electrical category and currents does it support?
It is rated for DC-13 usage with 2A at 24V DC and can switch down to 1mA at 24V DC.
How is the device connected to control equipment?
A straight cable with open-ended conductors is provided
conductors are copper with cross-sections 8 x 0.5mm² and 8 x 0.14mm².
What diagnostic or fault behaviour should I expect?
The switch contains no internal fault detection
fault recognition must be performed by the external safety-related logic unit.
What temperature range can the device operate within?
It is specified to operate between -5°C and +50°C.
Which approvals and certifications accompany the unit?
It carries EU and UK declarations of conformity, cULus certification, China RoHS, EC-type examination approval and third-party certification.
