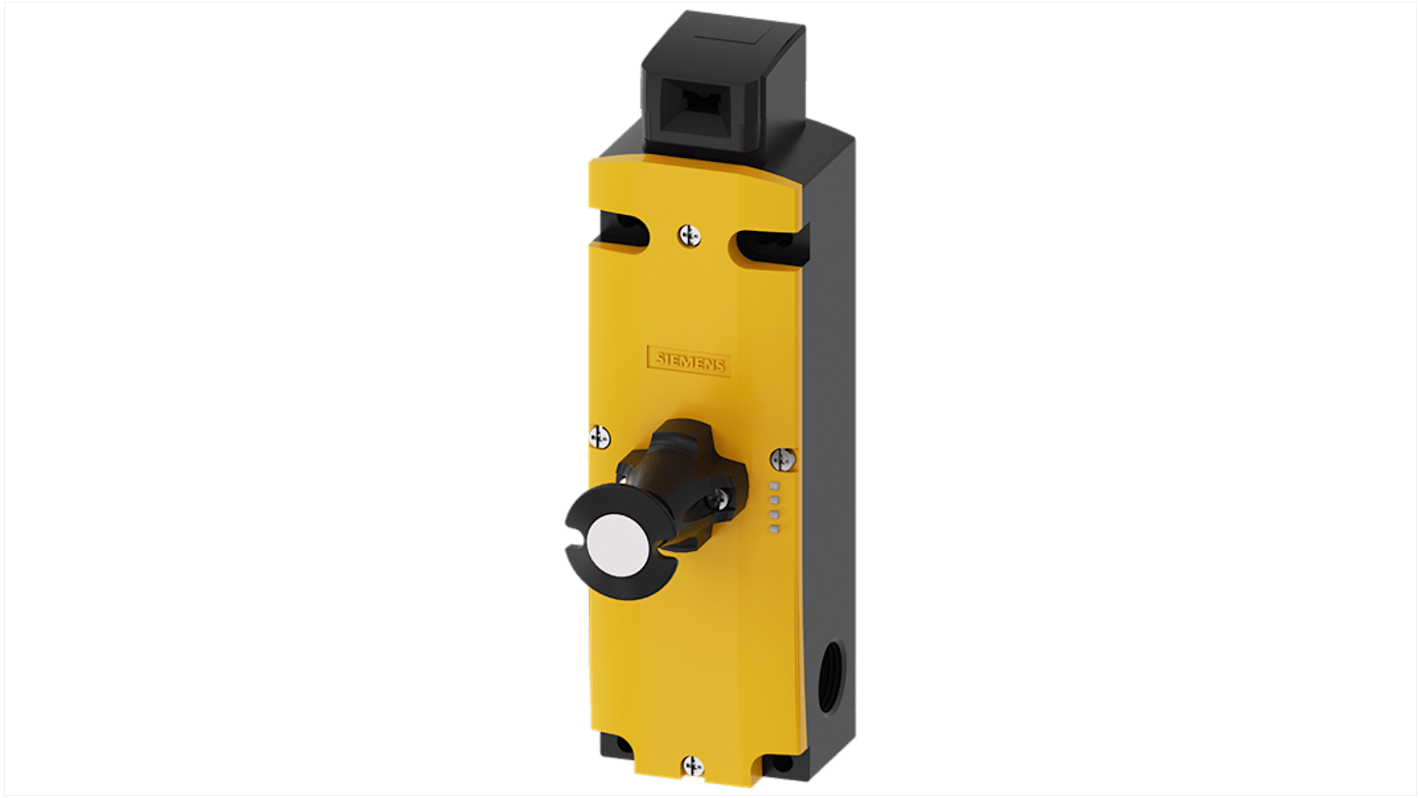

Siemens 3SE5 Series Safety Enabling Switch, 5 Position, 1 NO/2 NC, IP67, IP65
- RS Stock No.:
- 153-082
- Mfr. Part No.:
- 3SE5322-1SF21
- Brand:
- Siemens
Subtotal (1 unit)*
£285.60
(exc. VAT)
£342.72
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £285.60 |
*price indicative
- RS Stock No.:
- 153-082
- Mfr. Part No.:
- 3SE5322-1SF21
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Series | 3SE5 | |
| Product Type | Safety Enabling Switch | |
| Contact Configuration | 1 NO/2 NC | |
| Number of Positions | 5 | |
| IP Rating | IP67, IP65 | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| Housing Material | Plastic | |
| Contact Voltage | 250V | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | CCC, UKCA, TUV, CE, EAC, cULus | |
| Depth | 43.8mm | |
| Mechanical Life | 1000000Cycles | |
| Length | 185mm | |
| Width | 54mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Series 3SE5 | ||
Product Type Safety Enabling Switch | ||
Contact Configuration 1 NO/2 NC | ||
Number of Positions 5 | ||
IP Rating IP67, IP65 | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
Housing Material Plastic | ||
Contact Voltage 250V | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification NO | ||
Standards/Approvals CCC, UKCA, TUV, CE, EAC, cULus | ||
Depth 43.8mm | ||
Mechanical Life 1000000Cycles | ||
Length 185mm | ||
Width 54mm | ||
The Siemens cutting-edge safety position switch combines reliability with innovative design. Engineered with a tumbler locking mechanism, it assures a robust locking force while enabling flexibility with five approach directions. This device is perfect for various applications, providing enhanced safety in industrial environments. Its positive opening function and impressive mechanical service life of up to one million operating cycles distinguish it in the market. With features like spring-locking and front escape release, it optimises user safety and convenience. The switch operates efficiently under demanding conditions, including a wide temperature range and resistance to dust and water ingress, making it a top choice for professionals seeking durability and performance.
Enhanced safety with powerful locking mechanism
Versatile with multiple approach directions for flexibility
Reliable operation in extreme temperatures
Long service life reduces maintenance needs
Clear LED display for easy status monitoring
